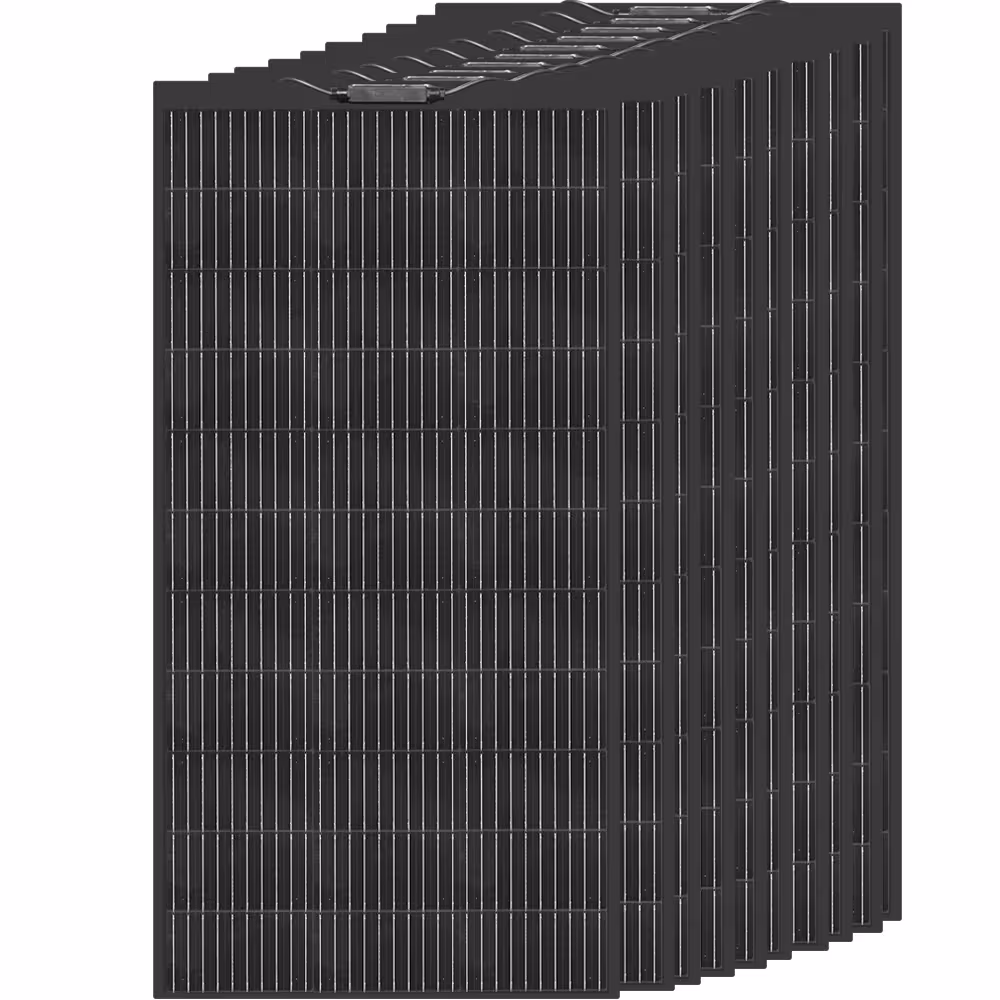

120W 1200W flexible solar panel charger for 240W 720W batteries

Flexible solar panels are a modern solution for generating electricity in any conditions. XINPUGUANG 120W - 1200W system uses monocrystalline solar cells with 23% conversion efficiency, ensuring continuous power supply to your home, kayaks, RV and mountain cabins. These flexible solar panels are designed for unparalleled surfaces, which makes it ideal for ships, yachts, caravans and commercial trucks. Easy to install and reliable, they provide independence from the power grid.

Flexible solar panels - main characteristics

• High conversion efficiency - the 23% energy conversion means that even in cloudy days, the system produces the maximum amount of energy from the available amount of light.

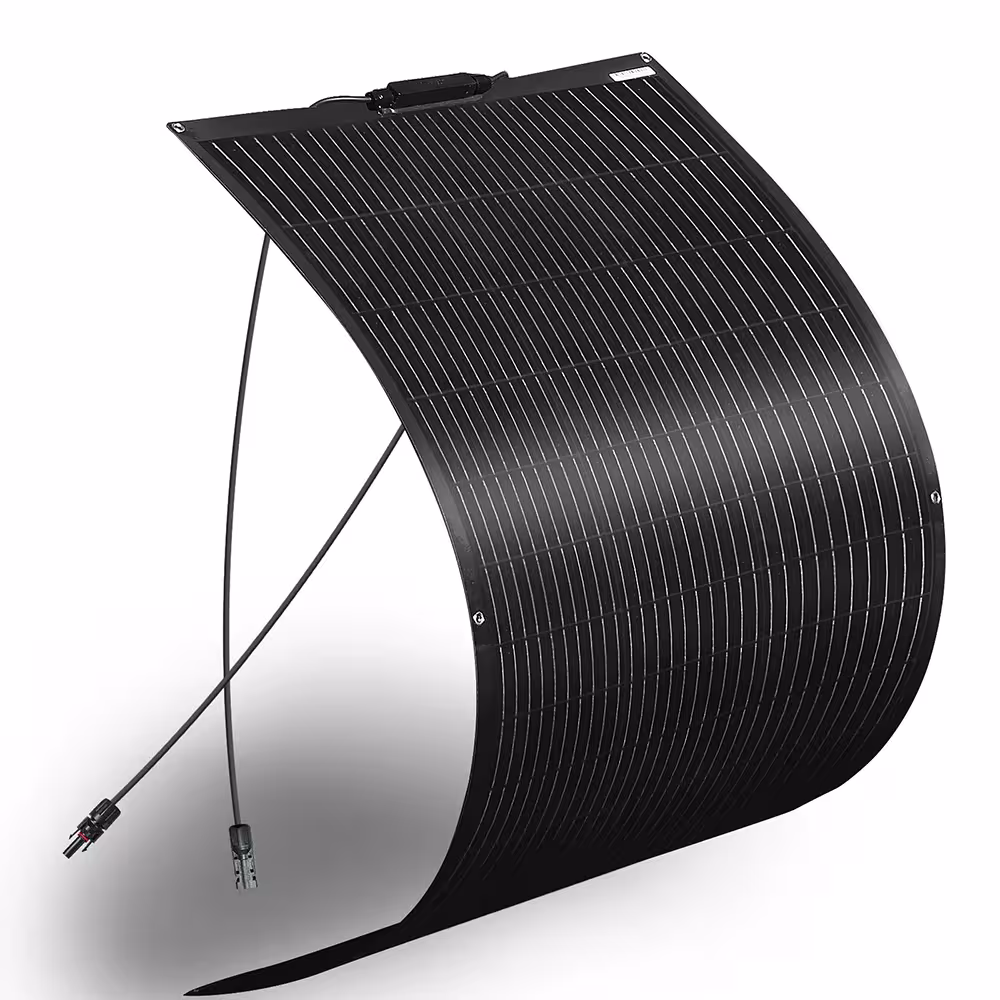

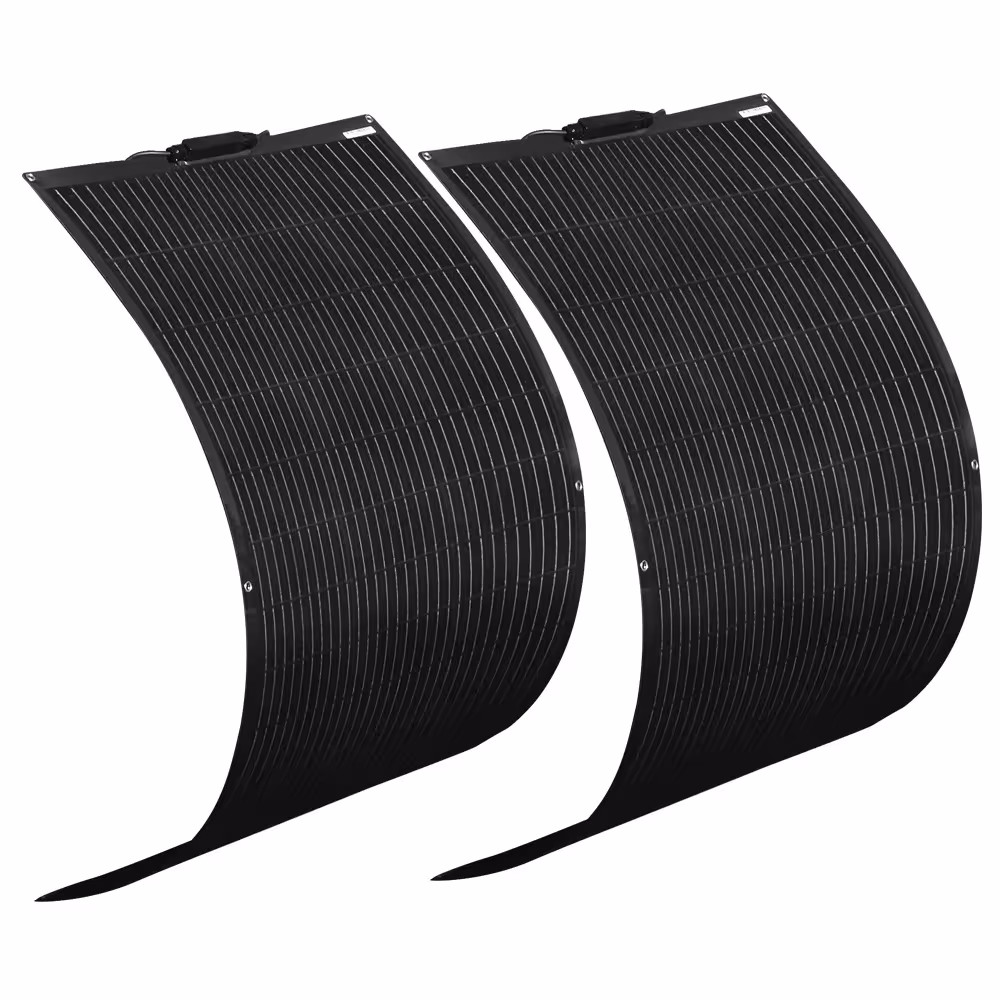

• Flexibility and adaptation - Due to flexible construction, the panels bend up to 30 degrees, making the ideal curves for roofs, kayaks and RV trucks.
• Light weight and installation - 2060 g weight in 120W means that one person can install the board without special equipment.
• Wide napkin - from 120W to 1200W options are suitable for both cold and powerful energy needs.
• Compatibility with systems - 12V and 24V battery system, MC-4 connectors and 700V max. system voltage compatible with most solar systems.
• Climate-resistant - from -40 ° C to + 80 ° C working temperature provides reliability in tropical, horse and warmth.
• Floated quality standard - 24% cell efficiency and ± 5% output tolerance guarantee long-term benefits.

Technical specifications

• Maximum power (Pmax): 120W
• Open circuit voltage (Voc): 21,78V
• Short-circuit current (Isc): 6,9 A
• Maximum power voltage (Vmp): 18.15V
• Maximum power current (Imp): 6,6A
• System maximum voltage: 700V DC
• Working temperature (NOCT): 45 ° C ± 2 ° C
• Temperature range: -40 ° C ~ + 80 ° C
• Number of solar cells: 33 pcs.
• Weight: 2060 g

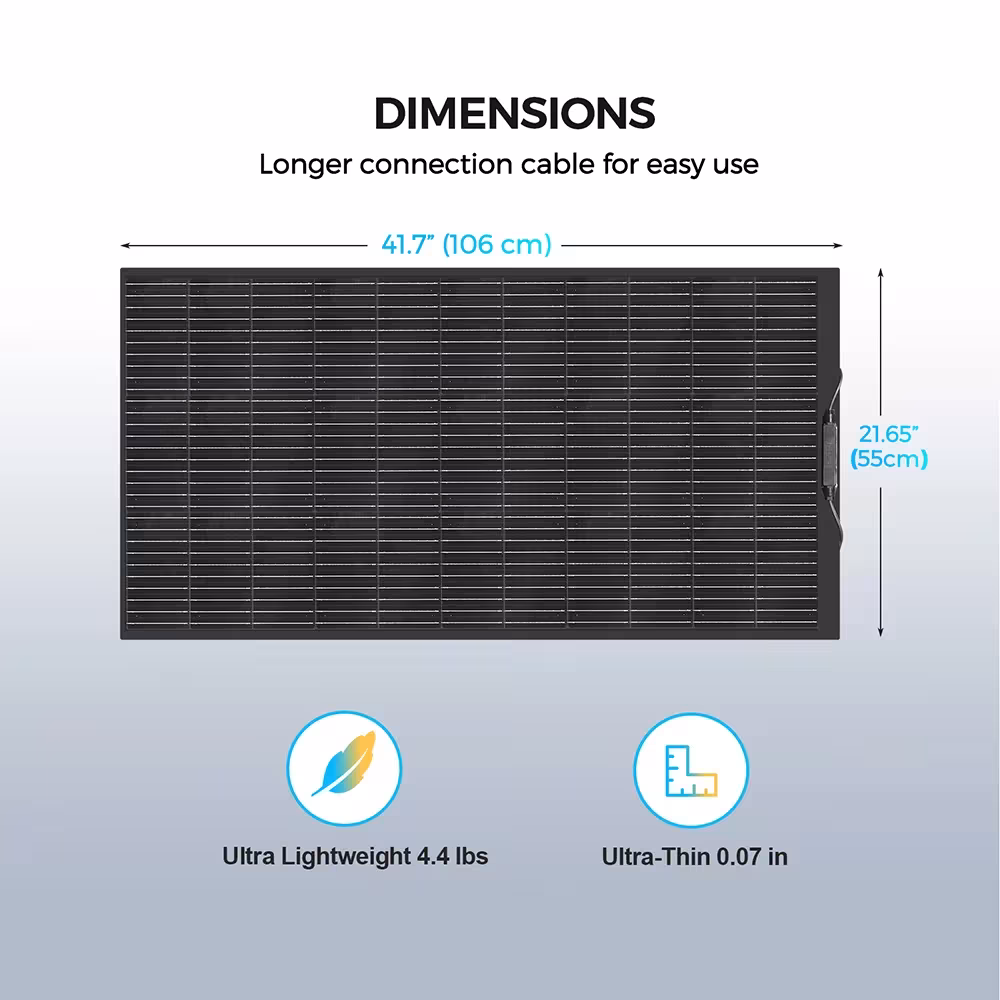

• Dimensions: 1065 × 550 × 3 mm
• Output port: 0.9 m MC-4 connector

Who is it suitable for and how to use it?

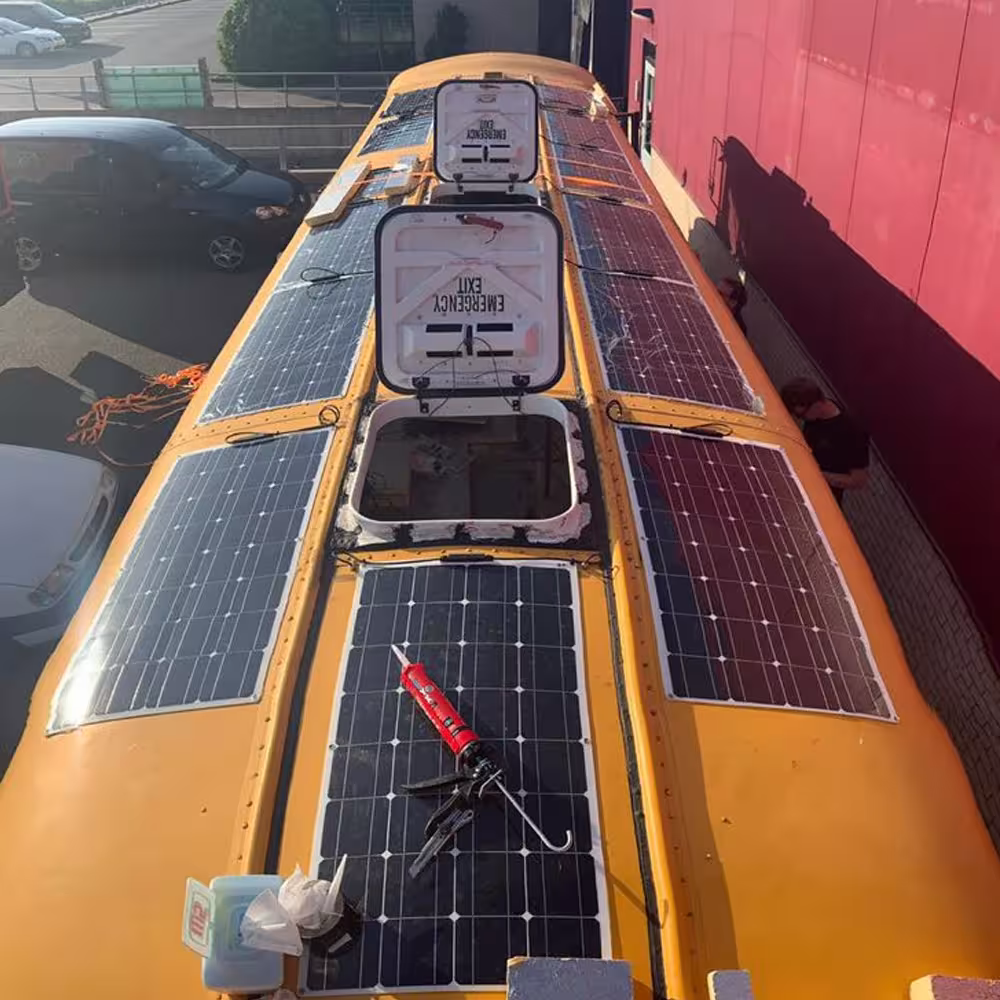

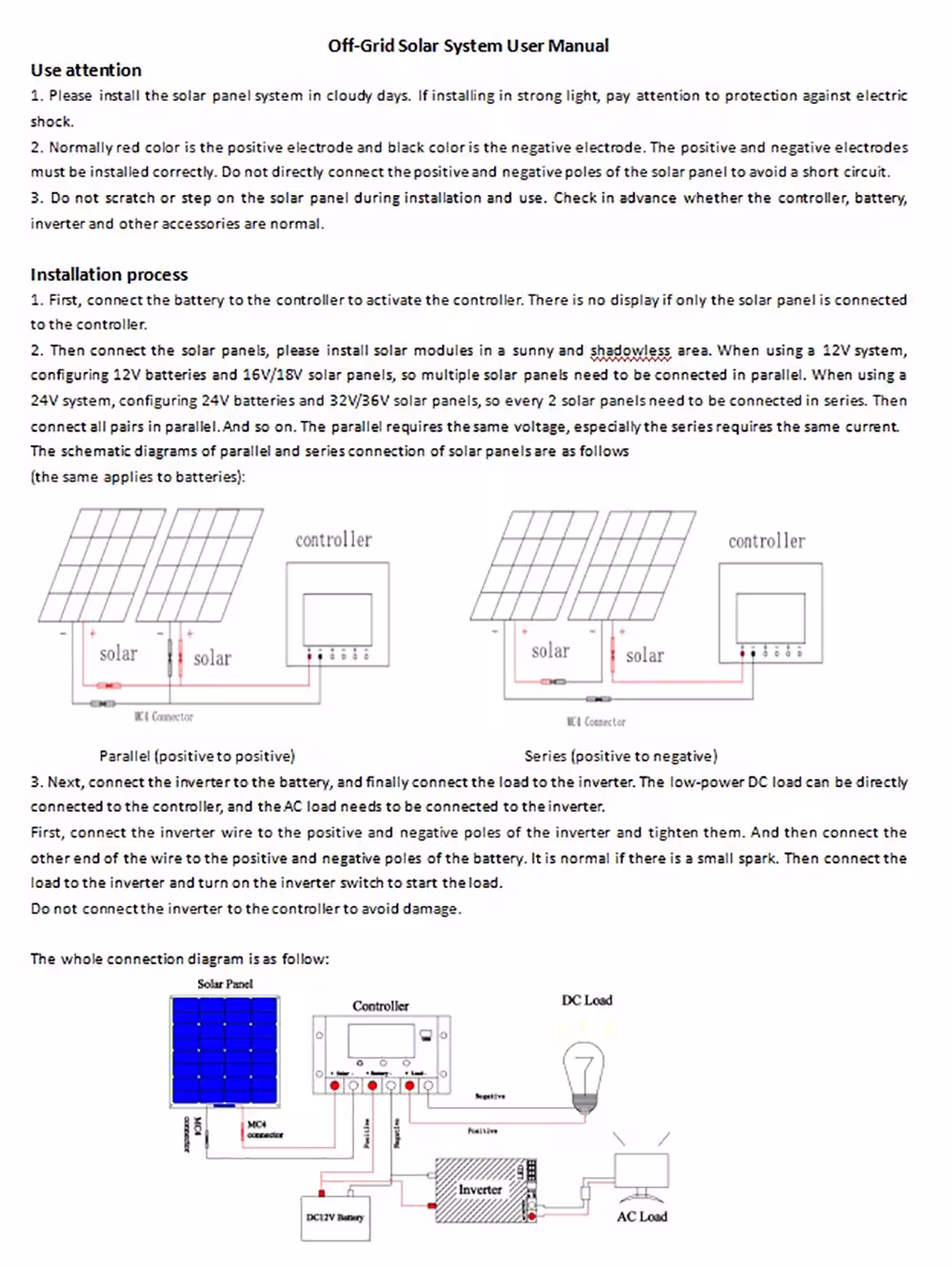

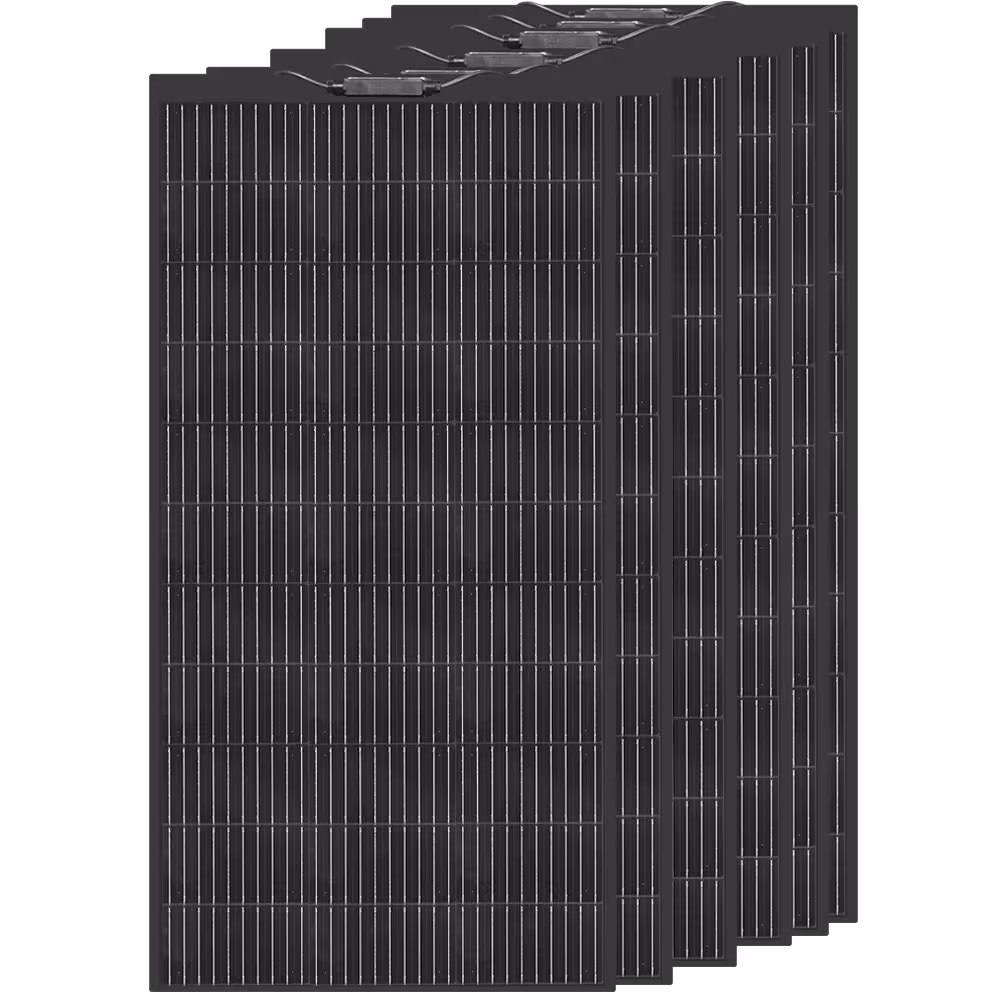

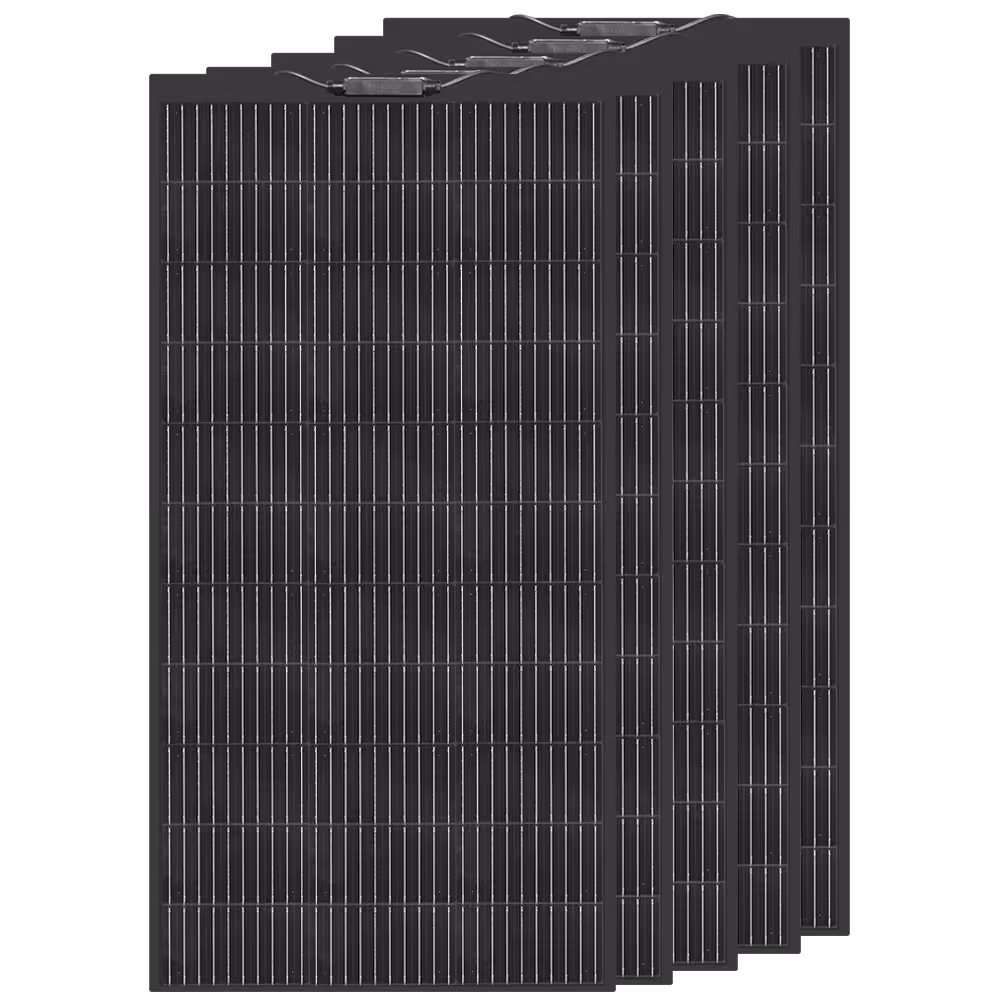

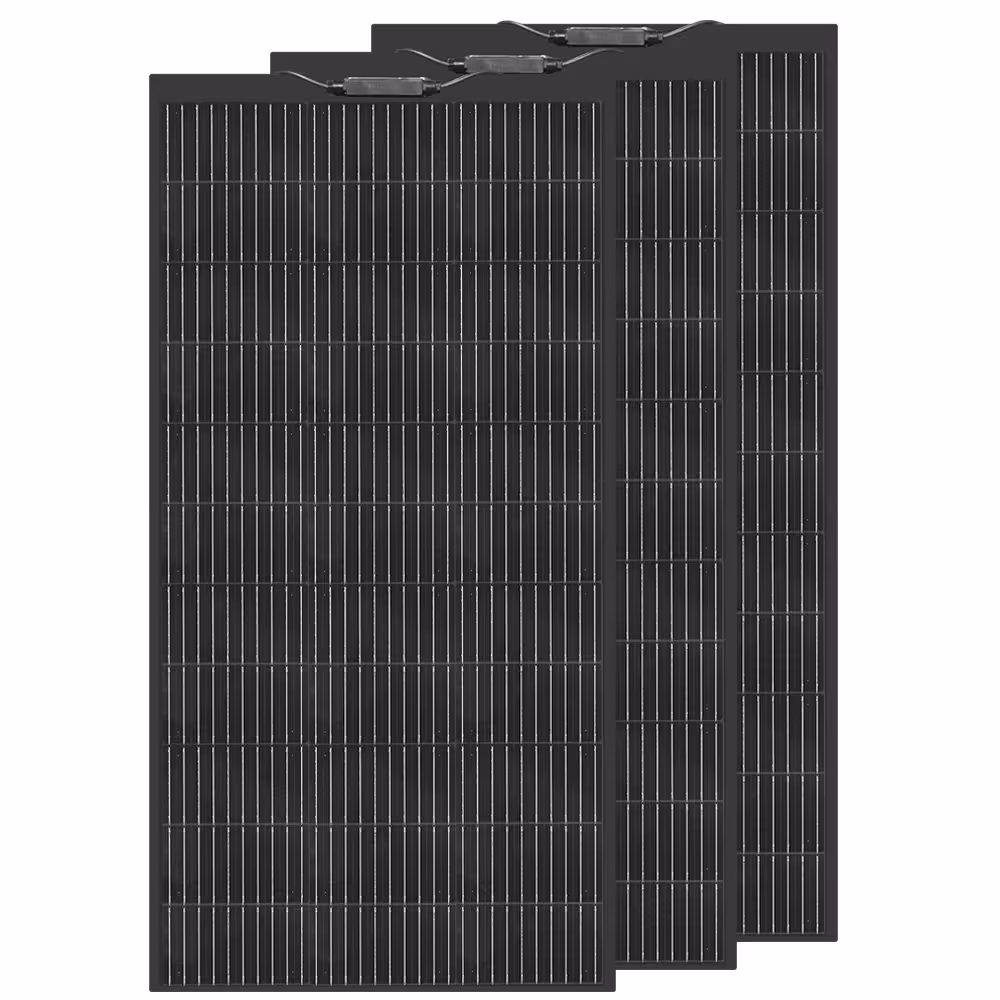

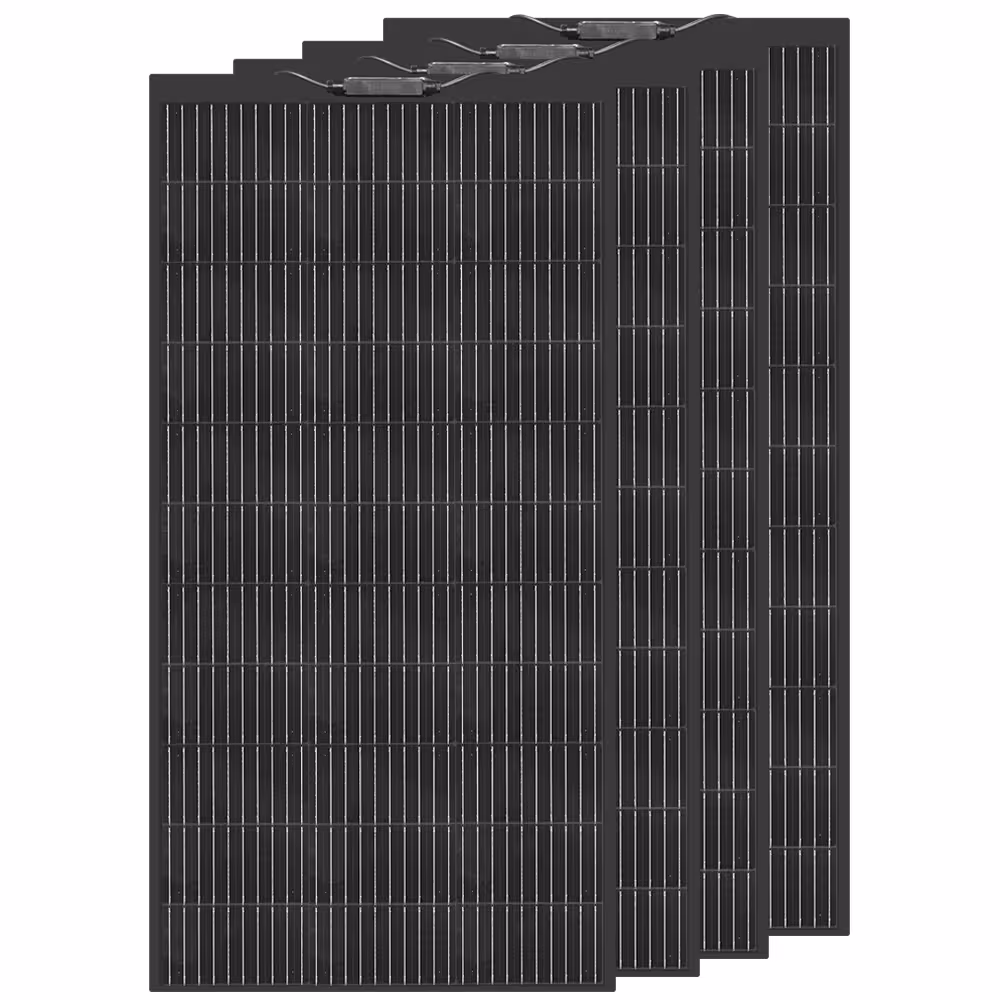

Flexible solar panels are ideal for your camping expedition, yachts, RV or mountain cabins. Use them for fish tank circulation systems, monitoring equipment and home photovoltaic energy storage systems. These panels are ideal for locations away from the network, telecommunications station and commercial trucks. When designing the system, connect several modules to reach the power of wishes from 240W to 1200W. Flexible solar panels are installed everywhere - from the ship's ceiling to the roof of the sponge trailer.

Buyer questions

Q: Can these flexible solar panels function on cloudy days?
Yes, they produce electricity in all weather conditions, but energy production is reduced. A cloud day gives about 10-25% of maximum power and a sunny day gives about 100%. Permanent systems with batteries provide accurate energy supply throughout the night.

Kl: How long does these panels serve and what guarantee?
Solar panels last 25 to 30 years, although their efficiency is reduced by about 0,5% per year. Standard warranty - 10-12 years, depending on the manufacturer. XINPUGUANG modules comply with international standards and TÜV certificates.

Kl: What are the connections for these panels?
All panels use MC-4 connectors, which are a versatile standard in solar energy. 0,9 m cable set is already included. Depending on the system, the MPPT charger controller and the 12V / 24V battery may be required.

Flexible solar panels are the best choice for people looking for an autonomous energy solution. Their flexibility, low weight and high efficiency make them universal, reliable. Start with 120W or 240W and expand to 1200W as needed. You'll find them at the TopSmart store.
