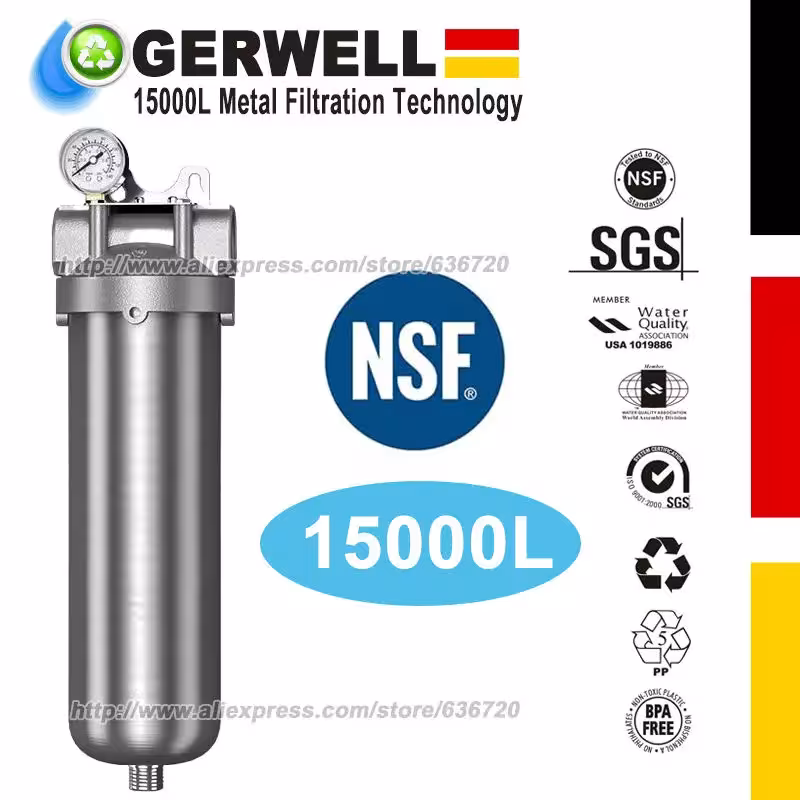

15000L/H sediment water filter for whole house systems, wells, and city water.

The sediment water filter is a crucial part of whole-house water filtration, removing sand, rust, and other impurities before they enter your plumbing. This sediment water filter is made of SUS304 stainless steel, making it suitable for both private homes with wells and city water supplies, as well as cafes or restaurants that require a high-performance water filtration solution.

Sediment water filter - key features

• SUS304 stainless steel — The body, filter mesh, and head are made of SUS304, so the device does not rust even after prolonged contact with water.
• High 15000 L/H flow rate — Capable of serving an entire household or a small business, such as a cafe or restaurant.
• 40 micron filtration accuracy — The three-layer filtration technology effectively removes fine particles, protecting household appliances.
• Self-cleaning function — By opening the drain valve, the water flow cleans the filter mesh, and the reverse flushing principle removes sediment from the inside.
• Integrated water pressure gauge — Allows you to monitor the pressure in real time and react to changes in a timely manner to ensure safe water usage.
• Simple installation — The standard 1-inch thread allows for easy connection of the system to your existing plumbing.

Technical specifications

• Flow rate: 15000 L/H
• Filtration accuracy: 40 microns
• Housing material: SUS304 stainless steel
• Filter mesh material: SUS304 (the description also mentions a 316L stainless steel filter mesh version)
• Sealing ring material: silicone, medical grade material
• Connection: standard 1 inch thread
• Operating temperature: 41–104°F (approximately 5–40°C)
• Maximum pressure: up to 145 PSI
• Recommended domestic water pressure range: 0.1 MPa–1 MPa
• Filtration technology: 3-layer filtration, German 40 micron stainless steel filtration technology
• Features: BPA-free materials, food-grade stainless steel
• Cleaning method: manual drain valve + backwashing system
• Water pressure gauge: integrated, real-time display
• Package includes: 15000 L/H flow rate water filter, installation tool (gift), drain valve (gift), Teflon sealing tape (gift), drain valve hose (gift)

Who is it suitable for and how to use it?

This sediment water filter is designed for homeowners, well water systems, and city water users who want to protect their household appliances — washing machines, water heaters, RO filters. It is also suitable for businesses — cafes, tea rooms, or restaurants — due to its high 15000 L/H capacity. It is installed directly on the inlet pipe, before water enters the internal system, using a standard 1 inch thread.

Buyer questions

Question: How is the filter mesh cleaned?
The filter has a self-cleaning function — opening the drain valve allows the water flow to wash away dirt from the mesh. The backwashing principle flushes out sediment from the inside without disassembly.

Question: Is the filter suitable for city water and well water?
Yes, this device is designed for both intensive use and well water and city water systems. The 40 micron accuracy filters out sand, rust, and other solid impurities from various water sources.

Question: What pressure and temperature can the system withstand?
The filter operates in a temperature range of 41–104°F and can withstand pressure up to 145 PSI. The recommended domestic water pressure is from 0.1 MPa to 1 MPa, and the pressure gauge allows you to monitor it continuously.

This sediment water filter is a reliable solution for every home, well, or small business that wants to protect their water system and appliances from impurities for years to come.
