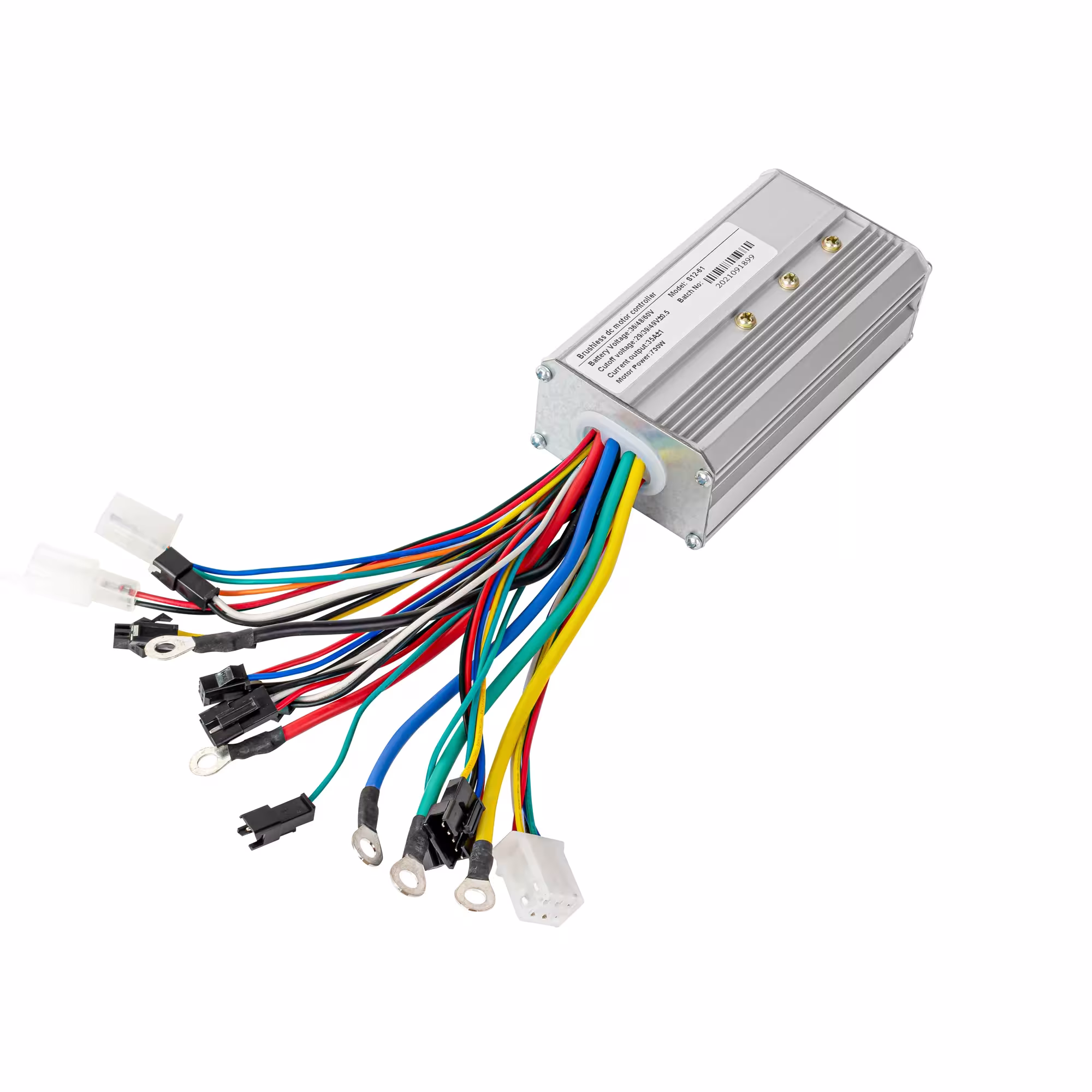

36V 48V 60V 500W 750W Electric Bicycle Brushless Motor Controller with LCD Display

The electric bicycle controller is an essential component for any electric vehicle system. This 500W–750W brushless motor controller is designed for controlling electric bicycles, scooters, tricycles, and other electric mobile equipment. The high-quality LCD display provides real-time data on speed, battery status, and system parameters. It is a reliable, universal solution compatible with 36V, 48V, and 60V systems. If you are looking for a durable and easily programmable electric bicycle controller, this is the ideal choice for your project.

Electric bicycle controller – key features

• Brushless motor technology — ensures smooth, quiet, and efficient operation without vibration, providing a more comfortable riding experience and longer motor lifespan.
• LCD screen — digital display shows speed, battery voltage, energy consumption, and other important parameters in real time, helping you control your ride.
• Universal voltage range — works with 36V, 48V, and 60V batteries, making it suitable for various electric vehicle configurations.
• Powerful 35A current control — supports up to 750W of motor power, providing fast acceleration and a durable system even for the most demanding usage scenarios.
• Compact size — 115mm × 62mm × 40mm dimensions allow for easy installation of the controller on the bike frame without engineering challenges.
• Simple self-learning — integrated self-learning function automatically calibrates motor parameters within 10–20 seconds, eliminating the need for complex adjustments.
• Flexible parameterization system — programmable parameters P03, P06, P07, P10, and P13 allow you to adapt the controller to different motors and their speed sensor configurations.

Technical specifications

• Motor style: Brushless
• Nominal voltage: 36V–60V
• Nominal power: 750W
• Current: 35A ± 1A
• Controller dimensions: 115mm × 62mm × 40mm
• Interfaces: motor wire, Hall sensor, battery, functional wires
• Self-learning time: 10–20 seconds
• LCD display: Yes

Who is it suitable for and how to use it?

The electric bicycle controller is suitable for professionals and hobbyists who design or repair electric bicycles, scooters, tricycles, and special electric vehicles. It is an ideal choice for people who want a low-cost, high-quality solution. Usage is simple: install the controller, connect the motor, Hall, and battery wires, turn on the self-learning mode, and the system calibrates automatically. After that, you can adjust the P07 parameter according to the number of motor magnets and the gear ratio to optimize performance.

Buyer questions

Q: Is this controller compatible with my existing motor?
Yes, the controller works with any 36V–60V brushless motor with a power of up to 750W. Check the motor's nominal voltage and power to ensure compatibility. If there is or is not a Hall sensor, set the P07 parameter accordingly based on the motor specifications.

Q: How do I install the controller and is special maintenance required?
Installation is simple: mount the 115mm × 62mm × 40mm controller on the bike frame, install all wires according to the diagrams, and activate the self-learning mode. Regular maintenance is not required because the brushless motor has no friction parts.

Q: What is the delivery time and is there a warranty?
Standard delivery to Lithuania takes 10–15 business days. The TopSmart store provides a 12-month product warranty against manufacturing defects. If the controller fails during use due to a product defect, it is returnable for an exchange procedure.

The electric bicycle controller is an essential component for anyone who wants to build or upgrade their electric transport. Its universal 36V–60V compatibility, compact dimensions, and easy self-learning function make it an ideal choice for designers worldwide. At the TopSmart store, you will find the best price and fast delivery.
