Bluetooth 750C display Bafang BBS01B BBS02B BBSHD engine 36V 48V 52V 60V

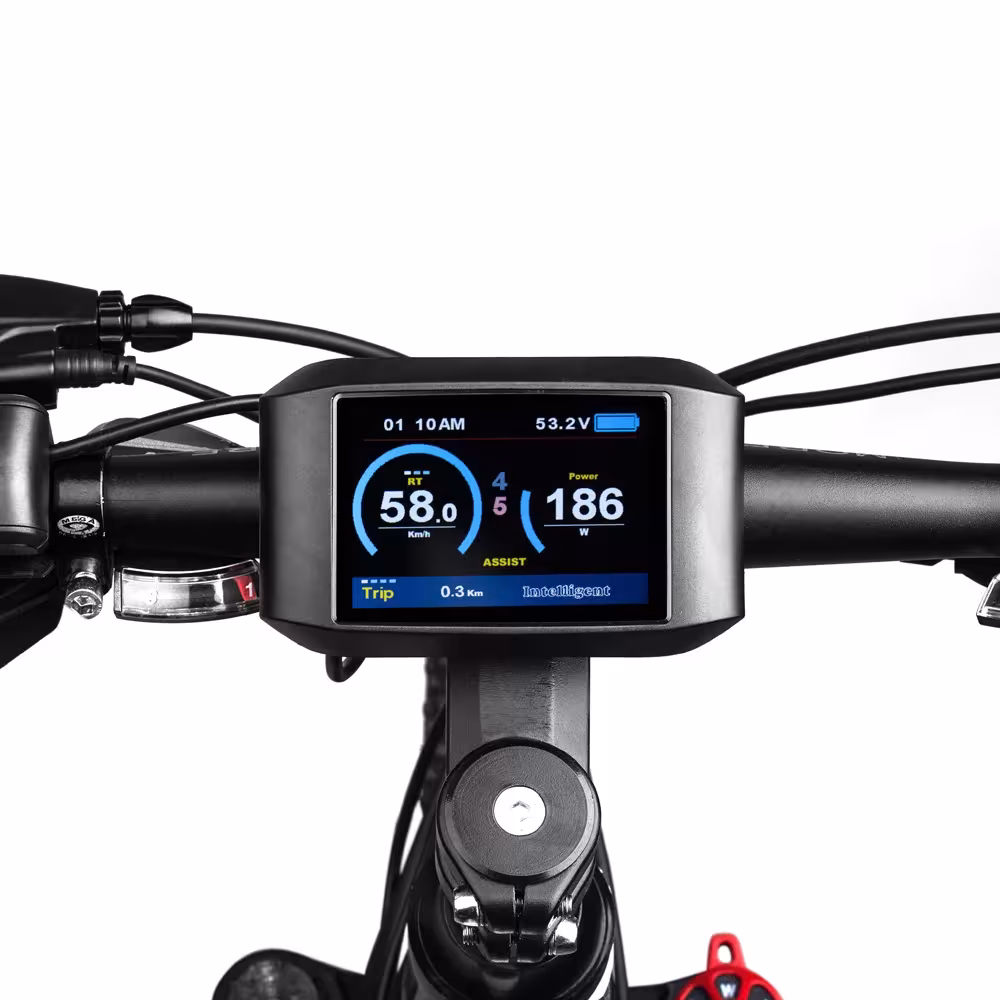

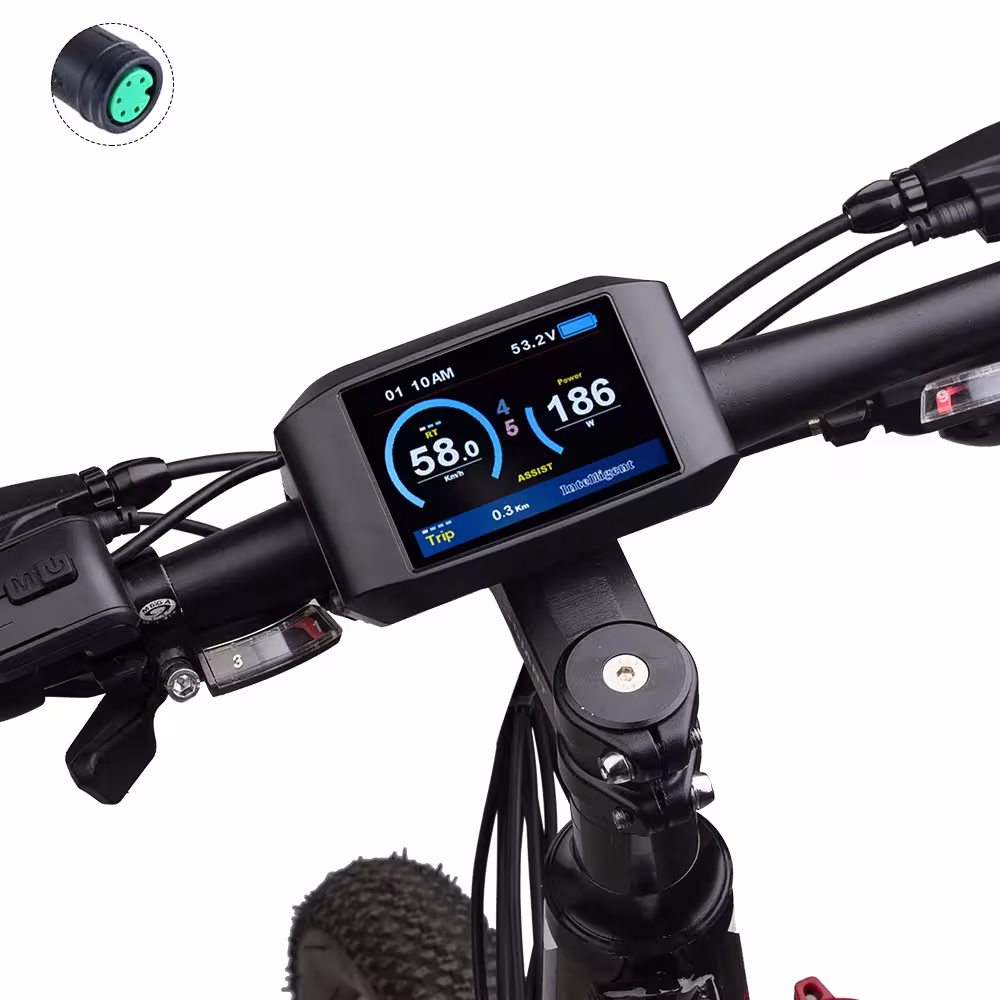

Bluetooth 750C display Bafang is a modern design color LCD screen for bicycles with electric motors. This smart display provides detailed information on driving speed, battery energy and real-time driving distance. Bluetooth 750C display Bafang icons for those who want to control their electric bicycle through a mobile phone using iOS or Android apps. This system is completely non-moisturizing and moisture-proof, guaranteeing reliable work in all weather conditions.

Bluetooth 750C display Bafang - main features

• Color LCD display - Large, easy to read display with extremely bright colors, allowing you to see information in the sun and in the dark. The amount of ergonomic design significantly improves the use experience.
• Real-time battery control - Displays constantly show the battery voltage and the remaining energy, so you always know how much more you can drive before you need to load.
• Speed and distance monitoring - You will see the average, maximum and current speed as well as the total distance travelled in kilometres or miles.
• Bluetooth connection with phone - Direct communication with iOS and Android allows you to monitor your drive through a special app and change your settings without any difficulty.
• Fatigue Position (PAS) indicator - Displays the current level of pedal assistance from 1 to 9 to help control energy consumption and driving style.
• Waterproof - CE and RoHS certified displays safely operate in damp, snow and rain to ensure long-term use.
• Universal BF-UART connection - The 5-pin round plug is combined with Bafang BBS01B, BBS02B, BBSHD engines using the BF-UART communication protocol.

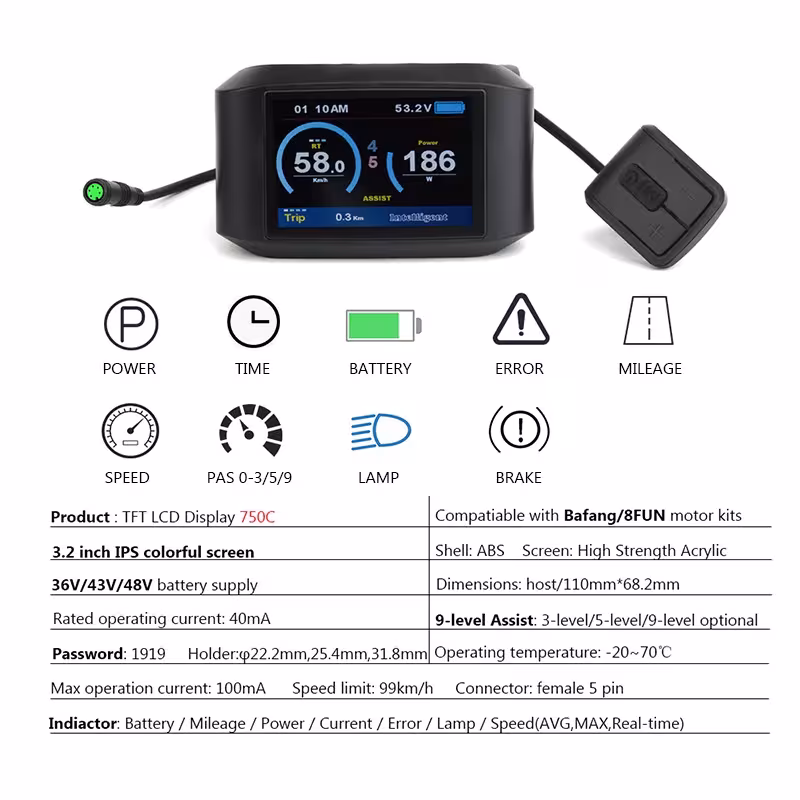

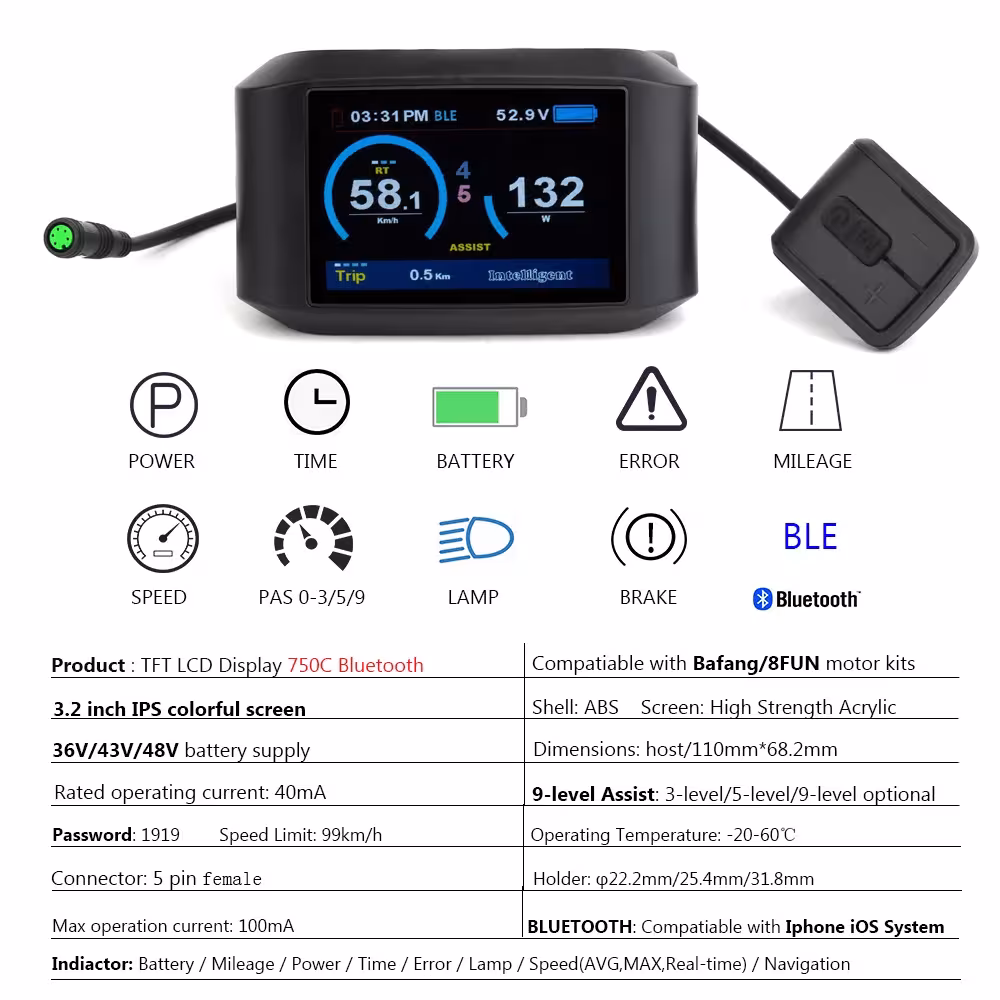

Technical specifications

• Communication protocol: BF- UART
• 5 pin female round plug
• Complementarity: Bafang BBS01B, BBS02B, BBSHD mid and hub engines
• Voltage: 36V, 48V, 52V, 60V
• Display: Colour LCD display
• Functions: Speed, distance, time, PAS level, battery power
• Certificates: CE, RoHS
• Interface: iOS and Android connectivity

Who is it suitable for and how to use it?

The Bluetooth 750C display is perfect for cyclists who use Bafang electric motor systems. If you have a BBS01B, BBS02B, or BBSHD motor with a 36V, 48V, 52V, or 60V battery, this display is an ideal solution for monitoring and controlling your ride. Simply connect the display to the 5-pin BF-UART port and start using all its functions immediately. The Bluetooth 750C display provides quick information about your riding statistics, helps optimize energy consumption, and expands the functionality of your bicycle.

Buyer questions

Kl: Is this display suitable for all Bafang systems?
No, Bluetooth 750C display is only for Bafang BBS01B, BBS02B and BBSHD engines with BF-UART protocol. Check your engine model and communication protocol before purchase. If you are not sure, please contact our team - there may be a focused version for your system.

Q: Is display suitable for 60V?
Yes, display is versatile and compatible with 36V, 48V, 52V and 60V systems. It automatically recognizes the voltage of your system and regulates the parameters properly. This ensures optimal operation regardless of your battery type.

Q: How long does delivery take?
Standard delivery from the TopSmart store takes 5-10 working days in Lithuania. Fast delivery is available for an extra fee. Everything comes well packed and safe, and the product has a warranty from the manufacturer.

Bluetooth 750C display Bafang is a reliable and functional solution for those who want to maximize the potential of their electric bicycles. Safe, simple and easy to integrate, this display Will be a great addition to any modern Bafang.
