BTMETER 570C-APP Digital Clamp Meter with Bluetooth Function, 4000 Counts Resolution and Temperature Measurement

The BTMETER 570C-APP digital clamp meter is designed for electricians, HVAC technicians, and engineers who require accurate and reliable measurements in their daily work. This clamp meter allows you to measure voltage, current, resistance, and temperature, and data can be monitored directly on your mobile phone in real time via Bluetooth.

Clamp Meter - Key Features

• Automatic and manual scale — For AC measurements, you can choose between manual or automatic scale settings, while DC voltage is automatically set, simplifying the process.

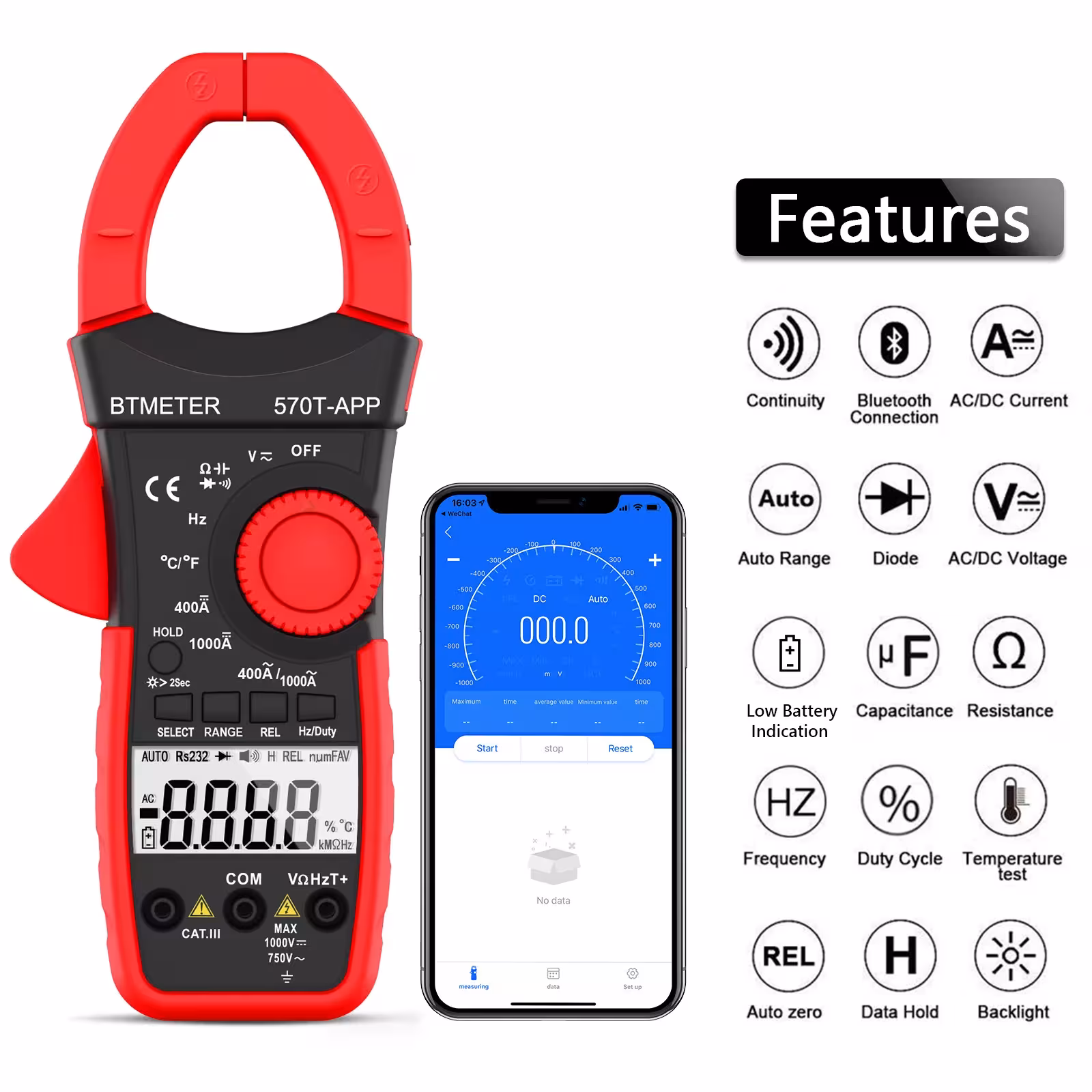

• Bluetooth connectivity with app — The device can be connected to an Android or iOS phone to monitor current values, maximum, minimum, and average readings with graphs and an analog curve.

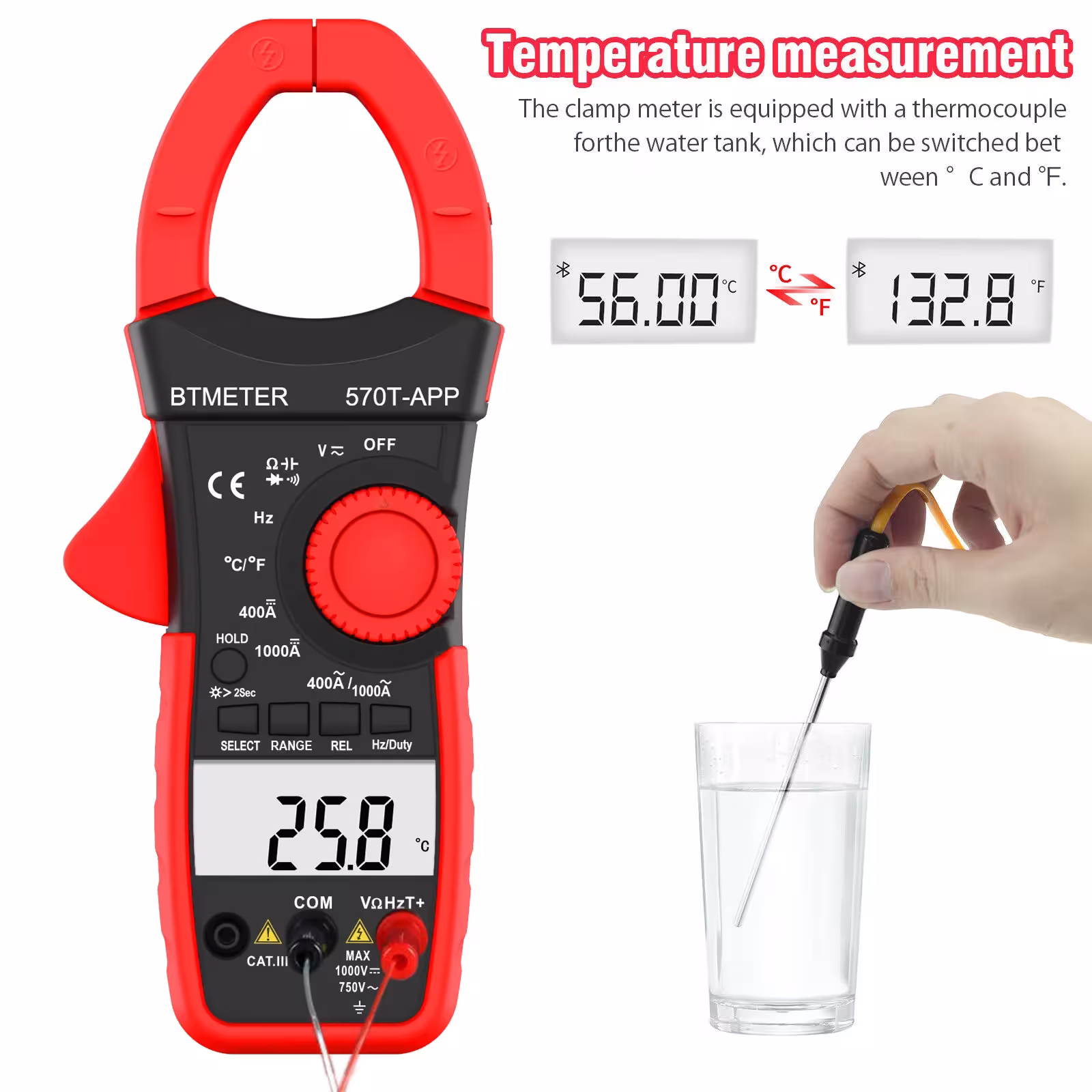

• Temperature measurement — An extendable thermocouple head allows you to measure temperatures from -20 to 1000°C, making it suitable for checking car radiators or other hot surfaces.
• Large 45 mm clamp The 1.77-inch clamp allows for easy measurement of thicker wires and cables without needing to cut or remove them from the device.
• Drop resistance Reinforced construction with protective edges withstands drops and harsh working conditions without failure, making it suitable for construction sites and workshops.
• Record keeping Measurements can be saved in TXT or Excel format, and the "Data Hold" function allows you to capture readings on the screen for later review.

Technical specifications

• Model: BTMETER 570C-APP
• Display Resolution: 4000 counts
• Connectivity: Bluetooth 4.0, compatible with Android and iOS apps
• Current Measurement: AC/DC, automatic and manual range
• Voltage Measurement: Automatic range selection
• Temperature Measurement Range: -20°C to 1000°C (with thermocouple probe)
• Clamp Width: 45 mm (1.77 inches)
• Display: Backlit
• Data Storage Formats: TXT, Excel
• Additional Features: "Data Hold", display of maximum/minimum/average values, graphs, analog curve
• Housing: Reinforced, resistant to drops and harsh working conditions

Who is it suitable for and how to use it?

This clamp multimeter is ideal for electricians, HVAC technicians, automotive mechanics, and engineers who need to quickly and safely check voltage, current, or temperature in the field. Simply place the clamp around the wire, select the measurement mode, and if necessary, connect to your phone via Bluetooth to view data graphically and save it for later analysis.

Buyer questions

Q: How does the Bluetooth function work?
You can pair the device with an Android or iOS phone using an app where you can monitor real-time current, maximum, minimum, and average values with graphs and an analog curve.

Q: What is the maximum wire thickness that can be measured?
The clamp has a diameter of 45 mm (1.77 inches), so it easily accommodates thicker wires and cables without needing to cut or remove them from the device.

Q: Can temperature be measured?
Yes, with the extendable thermocouple head, you can measure temperatures from -20°C to 1000°C, suitable for checking car radiators or other hot surfaces.

This clamp multimeter is a reliable choice for professionals who need accurate measurements, convenient Bluetooth connectivity, and a durable construction for everyday use in electrical or HVAC work.
