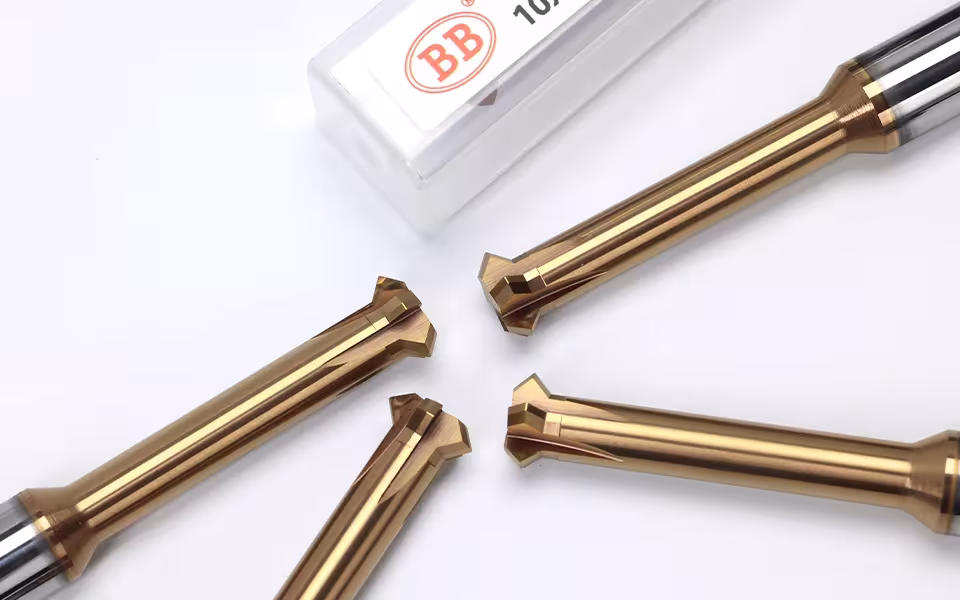

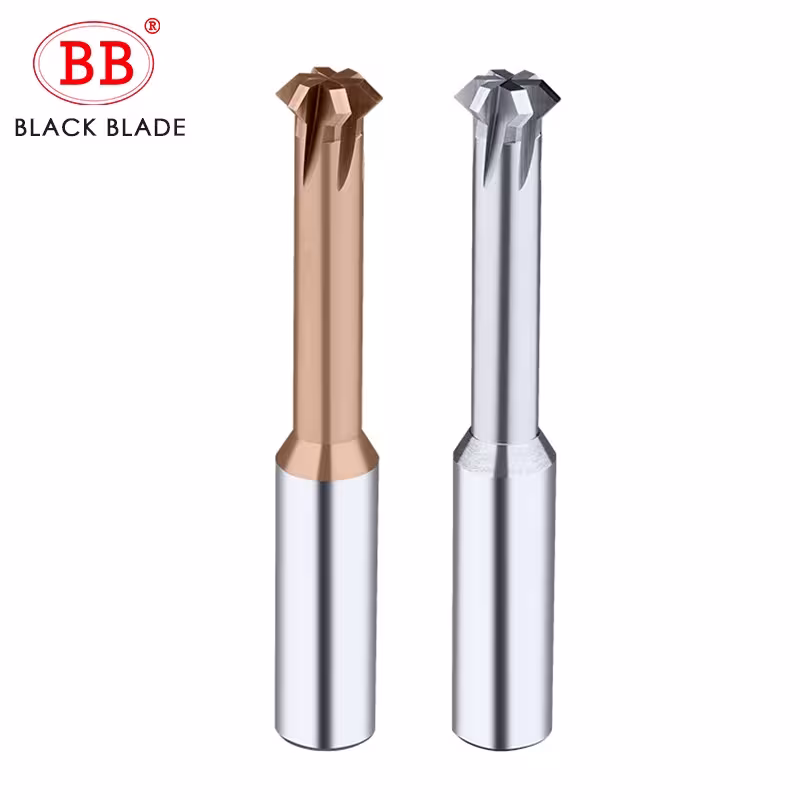

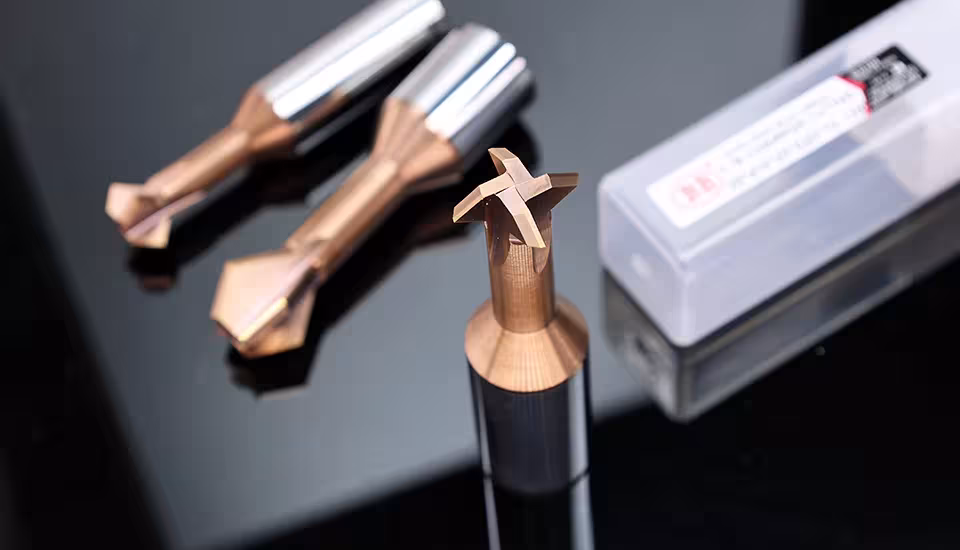

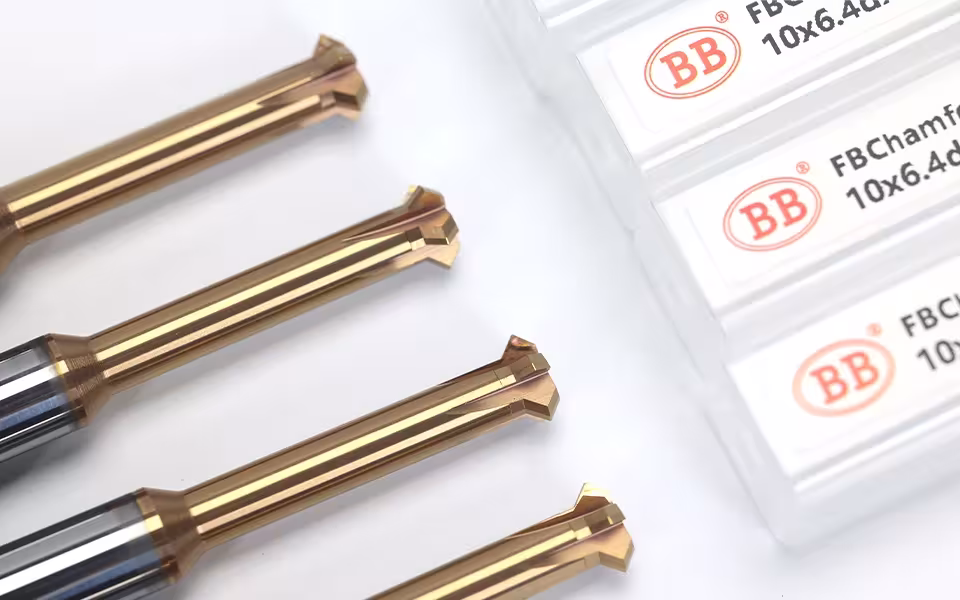

CNC deburring cutter for internal chamfer removal, 90/60 degrees, carbide

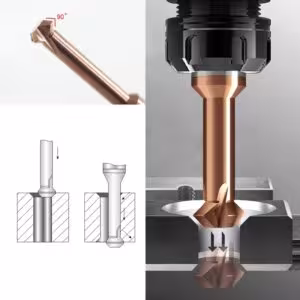

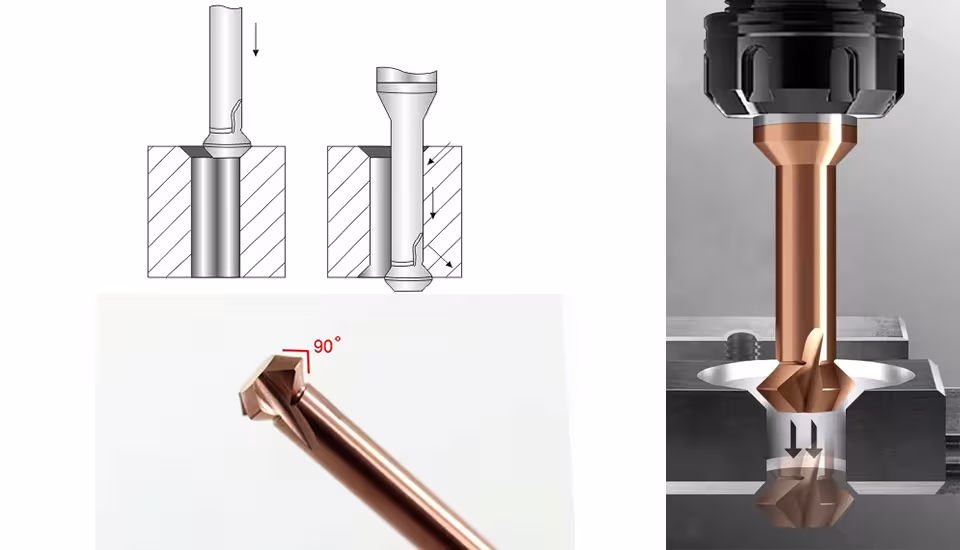

The CNC deburring cutter is a specialized metalworking tool designed for removing burrs from the front and back of holes simultaneously. Made from solid carbide, this cutter provides durability and precision for complex shapes. The CNC deburring cutter is ideal for metalworking companies looking for a reliable solution for precise hole edge processing.

CNC deburring cutter - key features

• Solid carbide body — The all-alloy construction provides greater hardness and a longer service life than standard steel cutters.
• Double angle — Available in 90°, 60°, and 120° angles, allowing you to choose the most suitable solution for different milling needs.
• Small diameter — Allows milling even on workpieces with complex geometries where access is limited.
• Standard long shank — Convenient for reaching recessed edges of the workpiece and performing reverse drilling slotting.
• High-temperature resistant coating — Coated with a special coating that improves resistance to melting during prolonged use.
• Effective spiral groove shape — Ensures a smoother and more efficient cutting process, reducing the load on the tool.

Technical specifications

• Material: solid carbide
• Angles: 90°, 60°, 120°
• Series: E series — competitive price, suitable for basic functional applications
• Recommended materials: aluminum, mild steel, plastic
• Application: low-frequency machining, budget projects, educational institutions
• Dimensions format: cutting diameter × shank diameter × shank diameter × shank length × total length
• D4 model: D4×d2×8×D4×50L
• D6 model: D6×d3×10×D6×50L
• D8 model: D8×d4×10×D8×60L
• D10 model: D10×d5×15×D10×60L
• D12 model: D12×d6×15×D12×60L
• D14 model: D14×d7×20×D14×75L

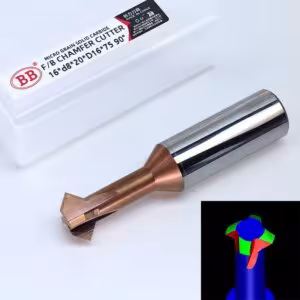

• D16 model: D16×d8×20×D16×75L
• Cutting conditions for group P: Vc 70–100, fz 0.05–0.1
• Cutting conditions for group M: Vc 60–80, fz 0.03–0.08
• Cutting conditions for group K: Vc 40–80, fz 0.05–0.1
• Cutting conditions for group N: Vc 80–150, fz 0.05–0.12
• Note: Adjust parameters according to specific processing conditions.
• Recommended to be used with coolant.
• For finishing cuts, it may be necessary to reduce the parameters.
• When secondary burrs appear, it is recommended to reduce the feed rate.

Who is it suitable for and how to use it?

The CNC deburring end mill is designed for metalworking professionals who work with CNC machines and perform internal and external deburring operations. Suitable for processing aluminum, mild steel, and plastic. It is recommended to use it with coolant, selecting cutting parameters according to the material group. If secondary burrs are observed, reduce the feed rate for better results.

Buyer questions

Question: What angles does this deburring cutter offer?
The tool is manufactured in three angle options: 90°, 60°, and 120 degrees, allowing you to choose the most suitable option for the specific workpiece and deburring type.

Question: Can this tool be used without coolant?
The manufacturer recommends using it with coolant, as this extends the tool's lifespan and improves cutting quality, reducing the likelihood of secondary burrs.

Question: What sizes is this product available in?

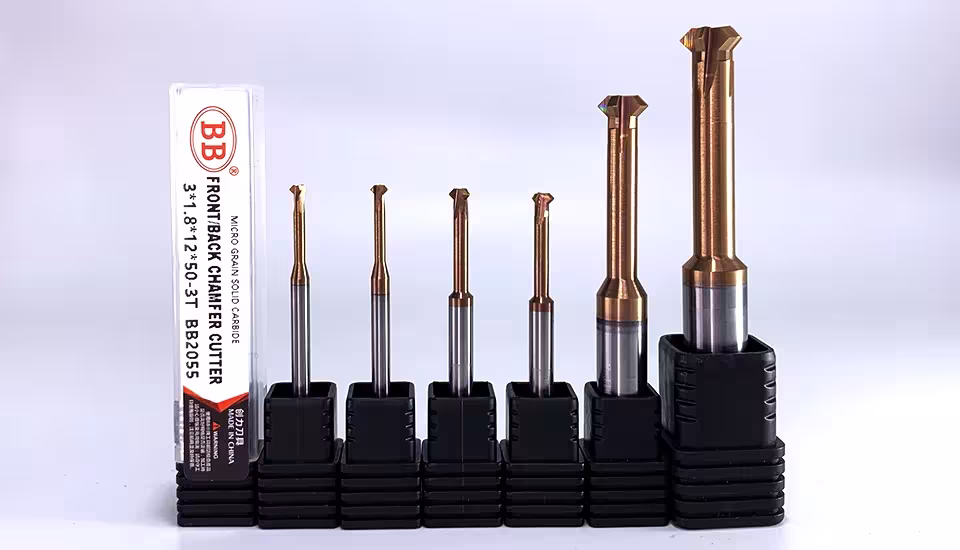

Available in seven sizes from D4 to D16, each with a different cutting diameter, shank and body dimensions, and overall length from 50L to 75L.

The CNC deburring end mill is a reliable choice for metalworking companies seeking precise and efficient burr removal from holes. Thanks to its carbide construction and a variety of sizes, this end mill is suitable for both industrial and educational applications.
