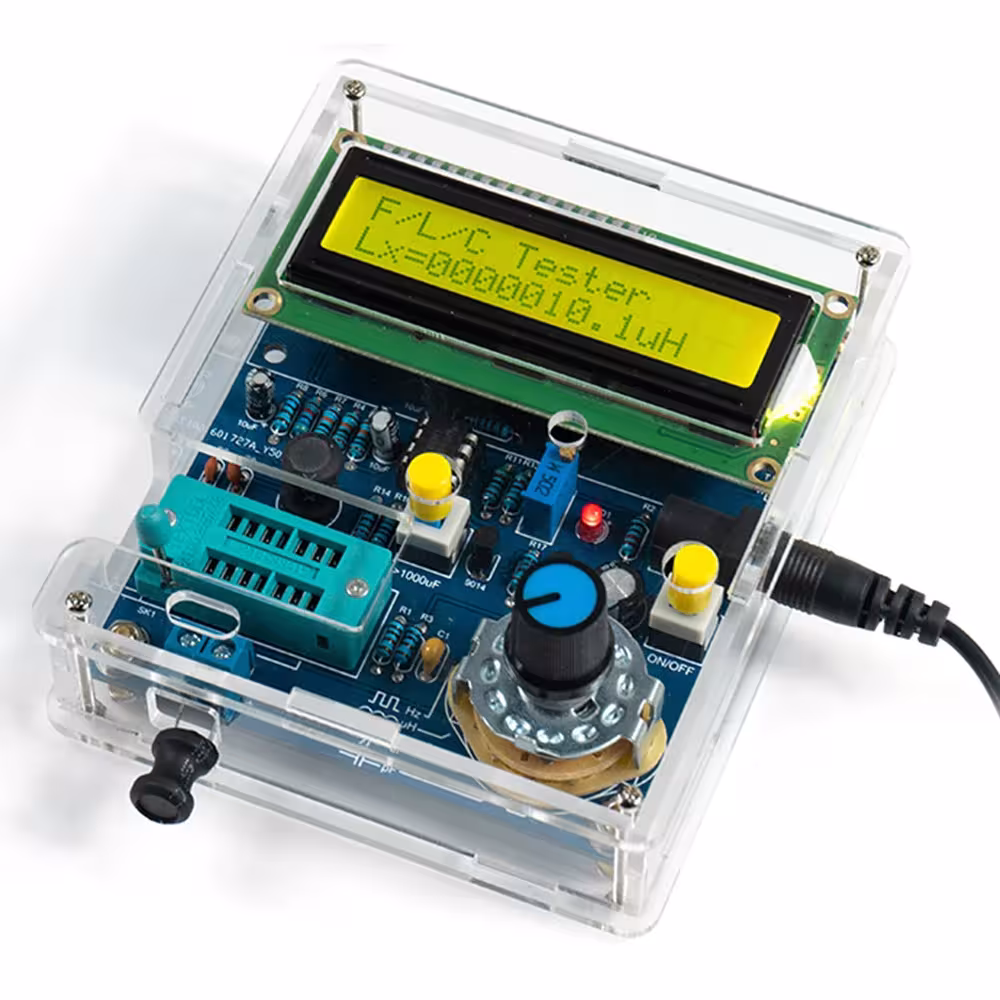

DC5V Digital Inductance and Capacitance Meter with USB Cable DIY Kit

Digital inductance meter is a versatile electronic measuring device for professionals and DIY enthusiasts. This compact device allows accurate measurement of inductance, capacity, frequency and other electrical parameters. With a digital inductance meter you can quickly diagnose the condition of electronic components, test circuits and perform complex measurements without expensive laboratory devices. Practical USB power and clear LCD display makes this tool unnecessary in any of the arsenal of an electronic enthusiast.

Digital inductance meter - main features

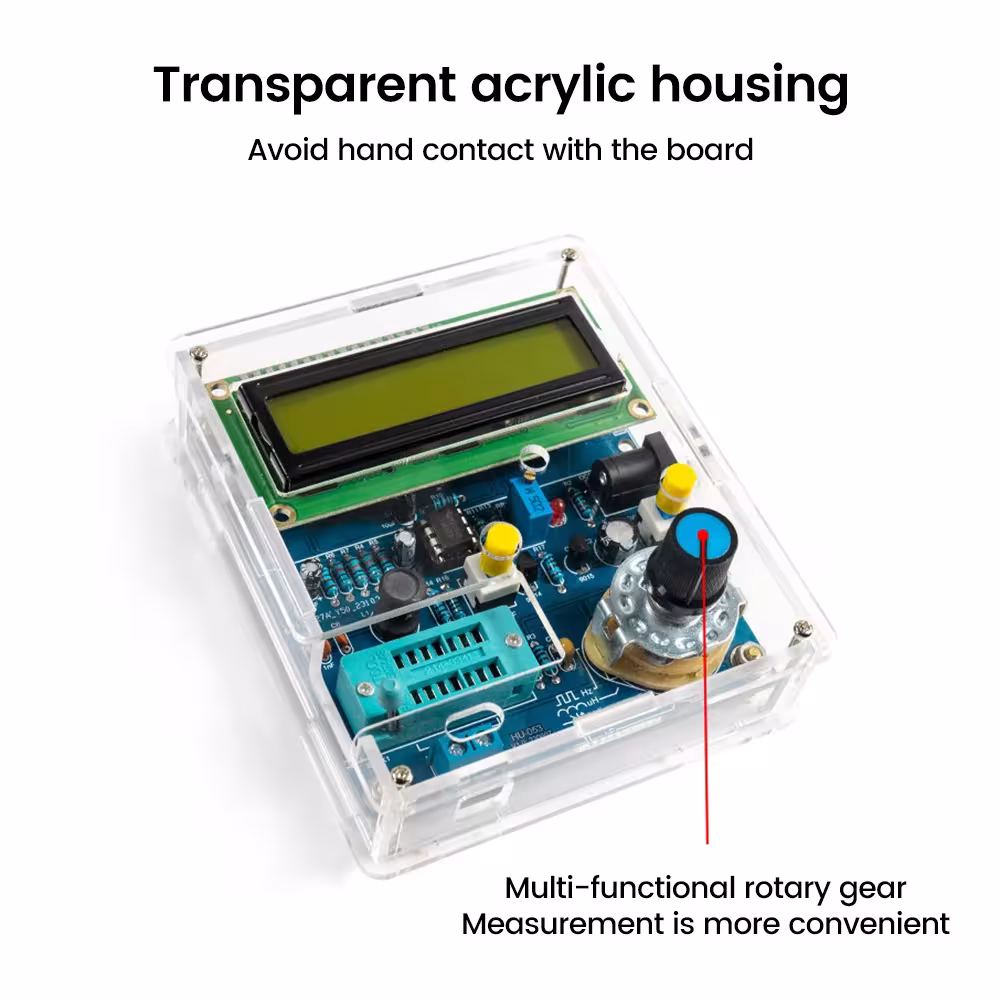

• Transparent acrylic body beam - Protects electronic components from dust and moisture, while allowing monitoring of internal structures. Elegant design makes the device suitable for professional use and shows.

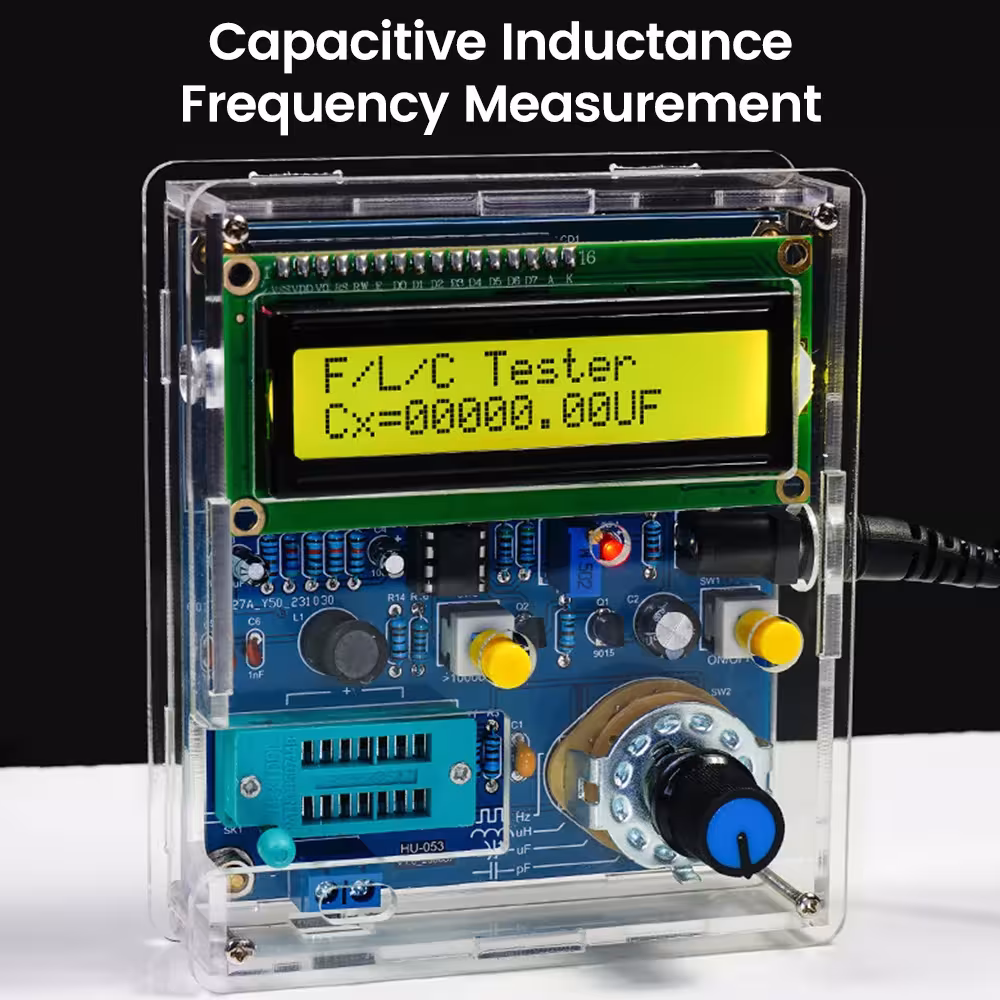

• Multiple frequency and capacity measurement function - measures non-polar capacitors (1pF- 2200pF), polar electrolyte capacity (1µF- 12000µF) and inductance (1µH-1H) in one unit.
• High definition LCD display - The excellent display quality with large symbols ensures easy reading of results even in weak light. The screen is automatically updated 2 times per second.

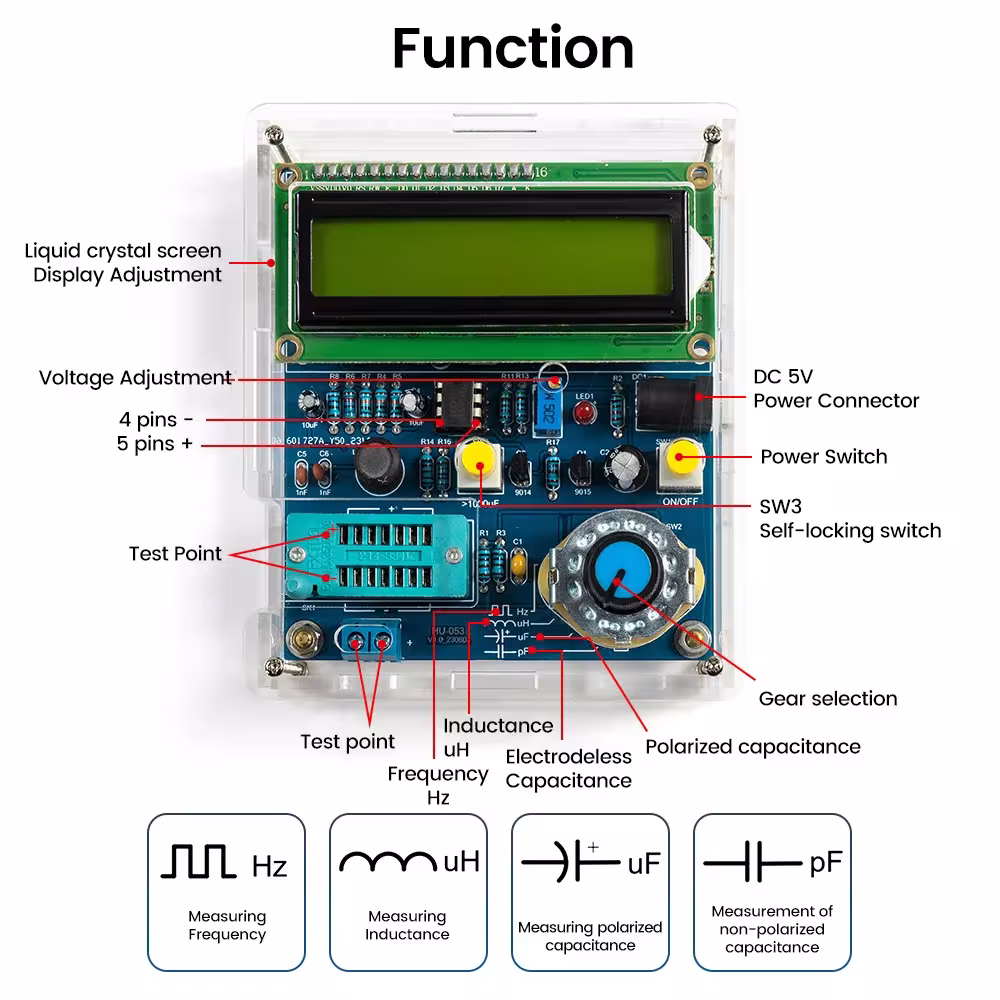

• Multi-functional rotary switch - Easy to choose measuring mode and functions. The needs are split, there is no need for complex menu or computer management.
• Frequency measurement up to 400 kHz - The digital inductance meter can measure signals in the 20 Hz to 400 kHz range, ideal for testing RF and audio circuits.
• USB Power DC 5V - Don't need expensive batteries. You can use a standard USB adapter, computer or power bank, so the device is always ready for operation.
• Compact and portable size - Size 106 × 91 × 28 mm allows easy access to workstation, laboratory or project sites. Light and compact.

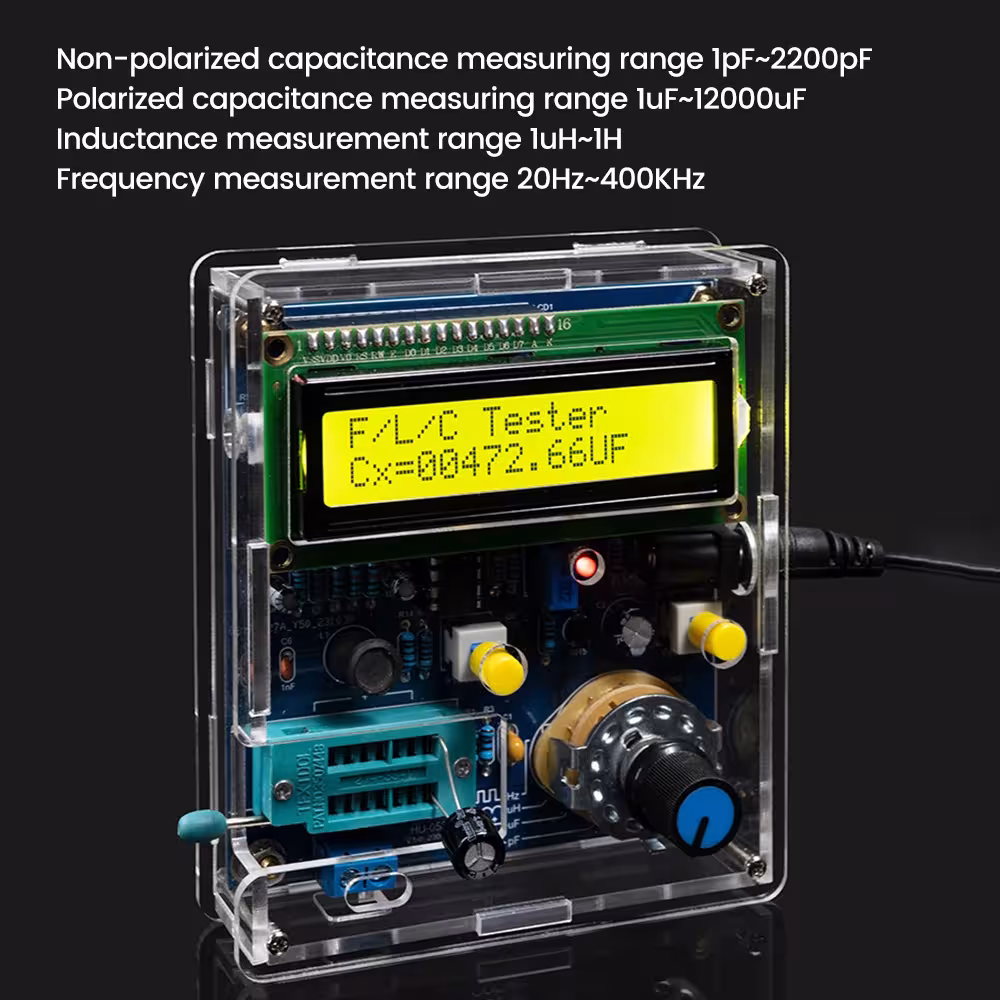

Technical specifications

• Power supply: USB DC 5V (DC socket)
• Non-polar capacity range: 1 pF- 2200 pF

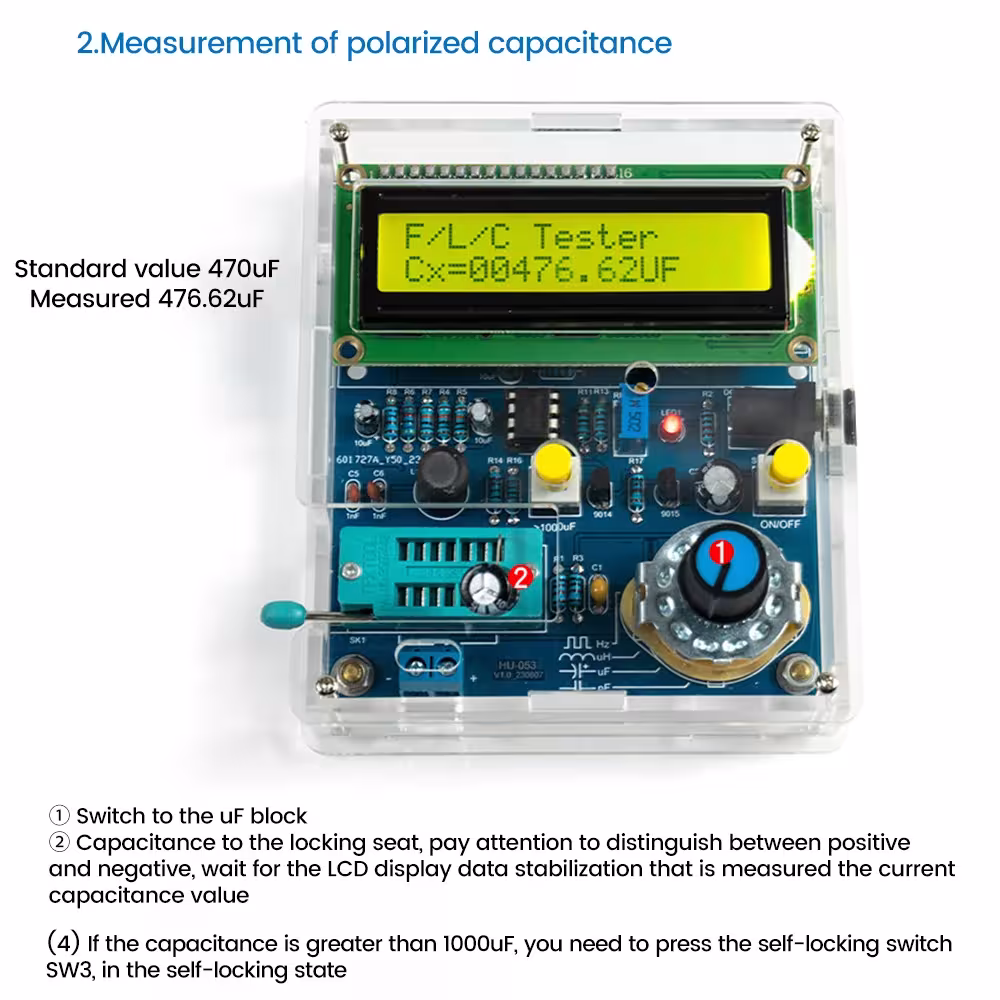

• Polar capacity range: 1 µF-12000 µF

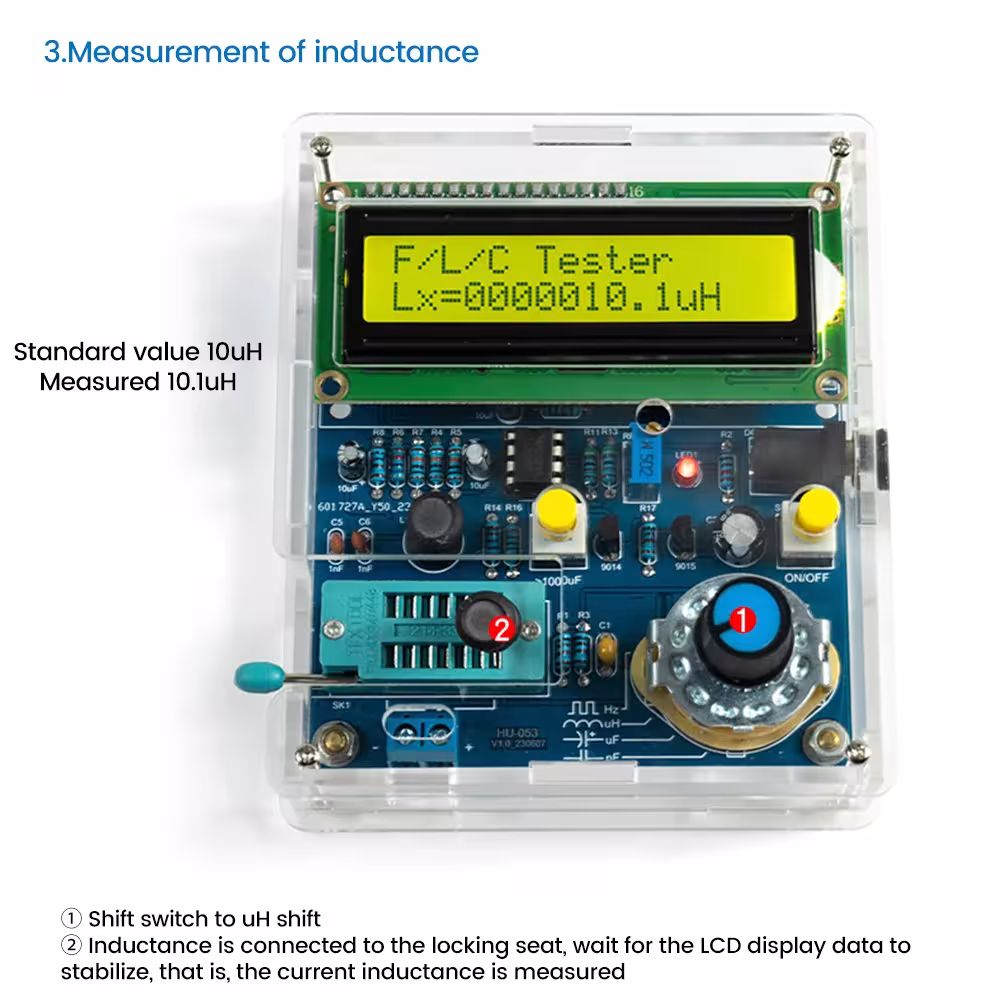

• Induction range: 1 µH-1 H
• Frequency measurement range: 20-400 kHz
• PCB plate size: 91 × 80 mm
• Size: 106 × 91 × 28 mm
• Connection: USB data cable

Who is it suitable for and how to use it?

Digital inductance meter is suitable for electronics students, radio lovers, repair specialists and DIY designers. The apparatus is ideal for testing circuit elements before installing, diagnosing damaged components and measuring the condensers or reels of unknown capacity. Using a rotary switch, select the desired mode, connect the component and scan the results on the LCD screen. It is important to use stable USB power with minimal interference. Before starting the measurements, set all switches to zero and wait 2 seconds until the screen is ignited.

Buyer questions

Q: Can the digital inductance meter measure low capacity?
Yes, the device successfully measures from 1 picofearada (pF) to 2200 pF of non-polar capacity suitable for crystalline oscillators, RF circuits and small capacity capacitors. The volume range of the polar electrolyte starts with 1 microfarade (µF).

Kl: Do you need special power or batteries?
No, the device uses USB power DC 5V and works from any stable source - computer, adapter or power bank. This makes use of cheaper and more comfortable than batteries. It is recommended to use a power supply with minimal electromagnetic interference.

Question: What is the measurement accuracy and is it suitable for professional use?
The device is highly accurate and suitable for most professional and amateur applications. The transparent body beam and LCD display provide easy reading of the results. However, for critical measurements in laboratories it is recommended to clean with a reference tool.

Due to its versatility and simple use, the digital inductance meter is a mandatory tool for every electronic enthusiast. If you redesign devices, learn electronics or create DIY projects, this measuring device will provide professional quality at affordable prices.
