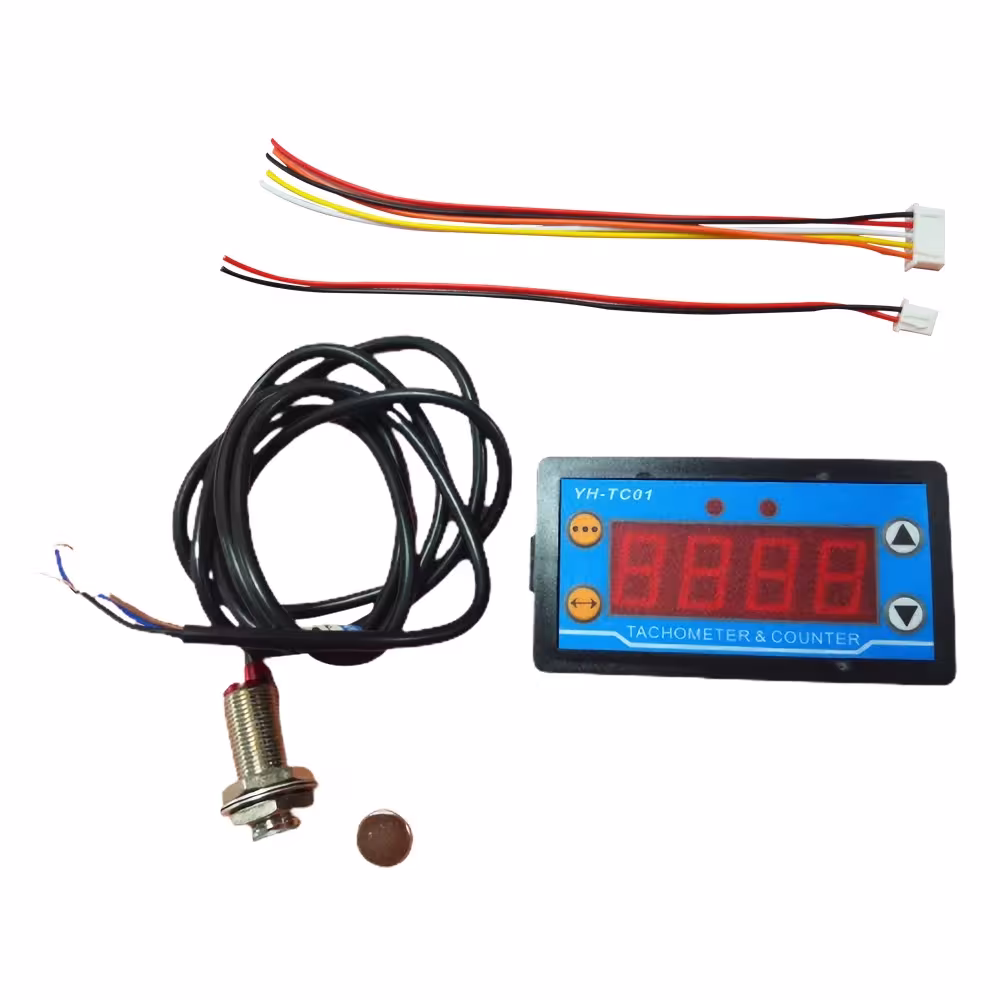

DC9-24V high precision digital tachometer LED 30-80000 rpm

The digital speed meter is a universal measurement and calculation system for various mechanical equipment types. This product combines speed measurement, calculation and alarmo functions into one compact LED device. It is ideal for combine harvesters, machines, electric motors, fans and other machines that require speed control. The digital speed meter with Hall Sensor provides a reliable solution for industry and manufacturing.

Digital speed meter - main features

• LED digital display - A clear and easy-to-read display shows speed from 30 to 80000 revolutions per minute exactly and almost in real time.
• Multi-functional system - One device makes speed measurement, calculation and alarmo output, reducing your costs and the complexity of your work.
• Hall Sensor Compatibility - The digital speed meter is compatible with Hall switches, metal proximity switches and infrared sensors.
• NPN Alarm Output - Connectable tell-tales and audible signals, optionally setting the alarm limit according to your needs.
• High Sensor Sensitivity - The use of electronic technology by the sensor of the three wires provides an excellent field sensitivity and interference resistance.
• Sustainable long-term performance - Reliable behaviour is guaranteed even in difficult working conditions with excellent anti-interference parameters.

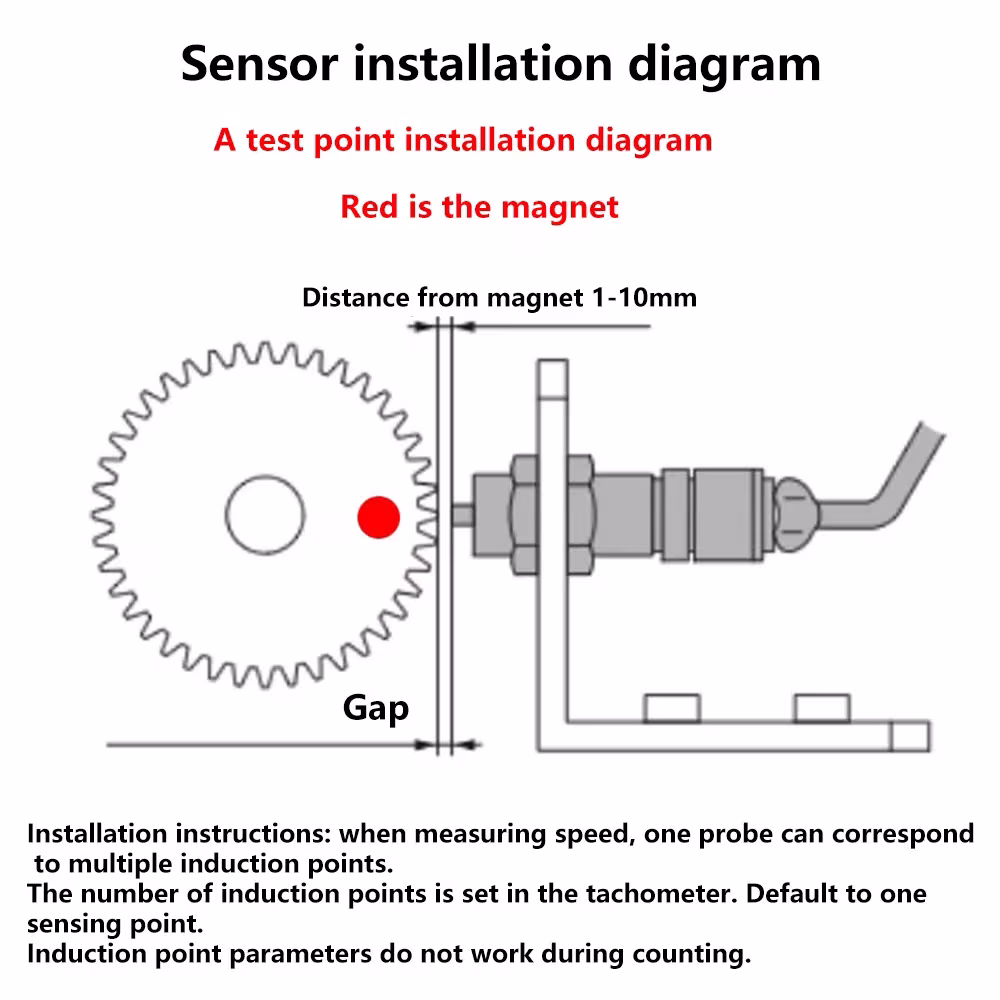

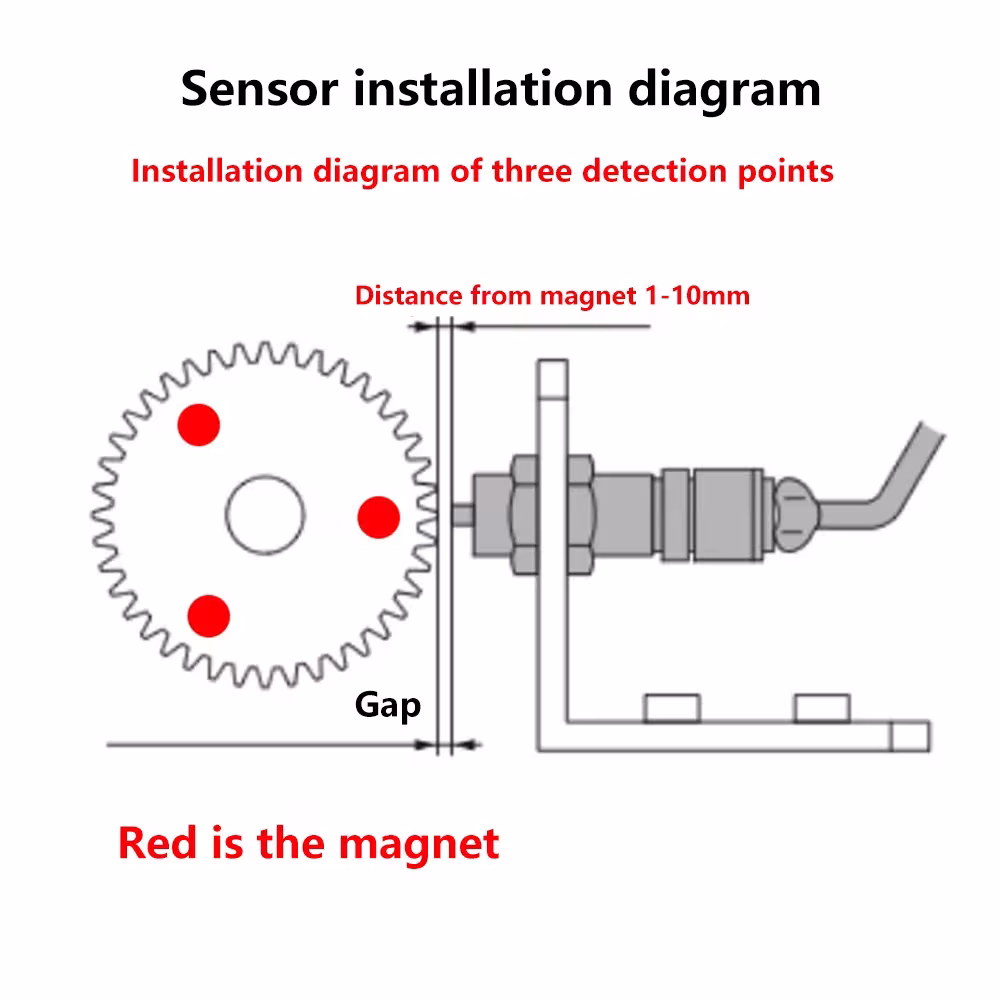

• Simple installation - The easy installation procedure allows rapid integration of the digital speed meter into the existing equipment system.

Technical specifications

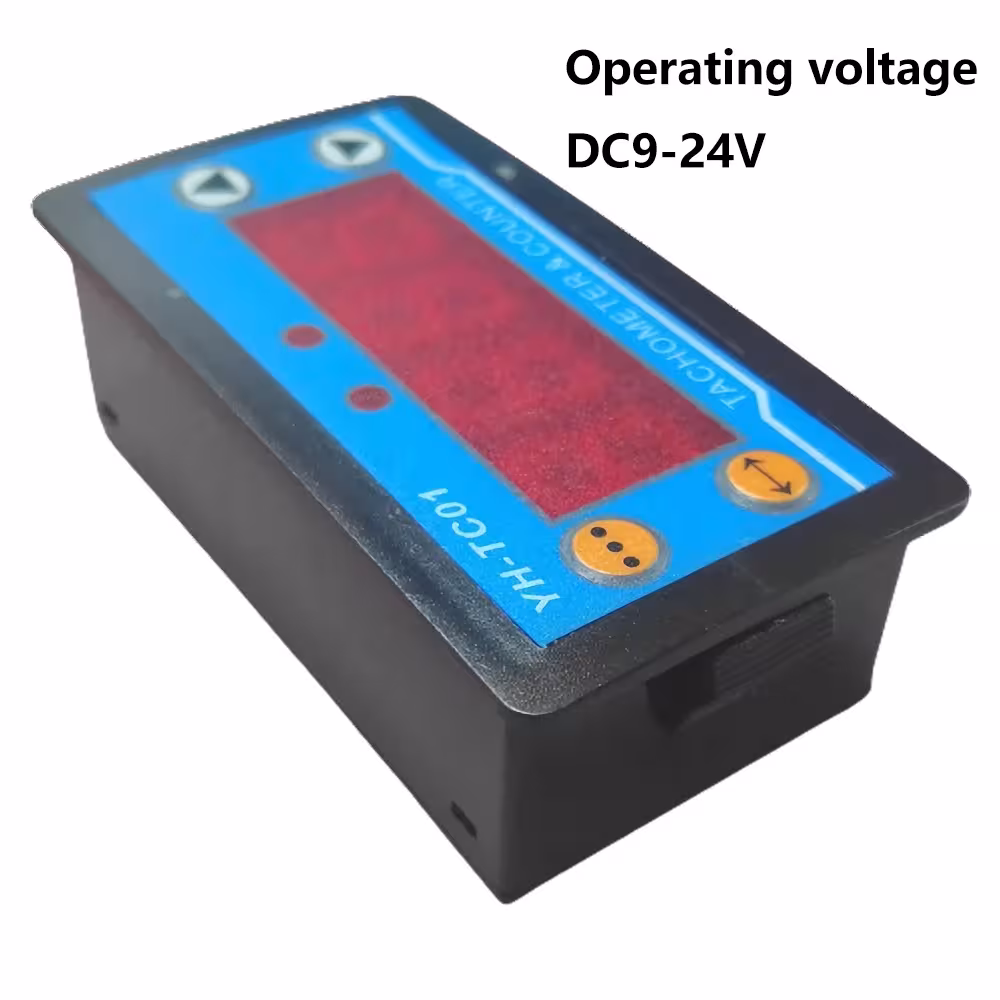

• Power supply: DC 9-24V
• Speed measurement range: 30-80000 rpm
• Display: LED digital display

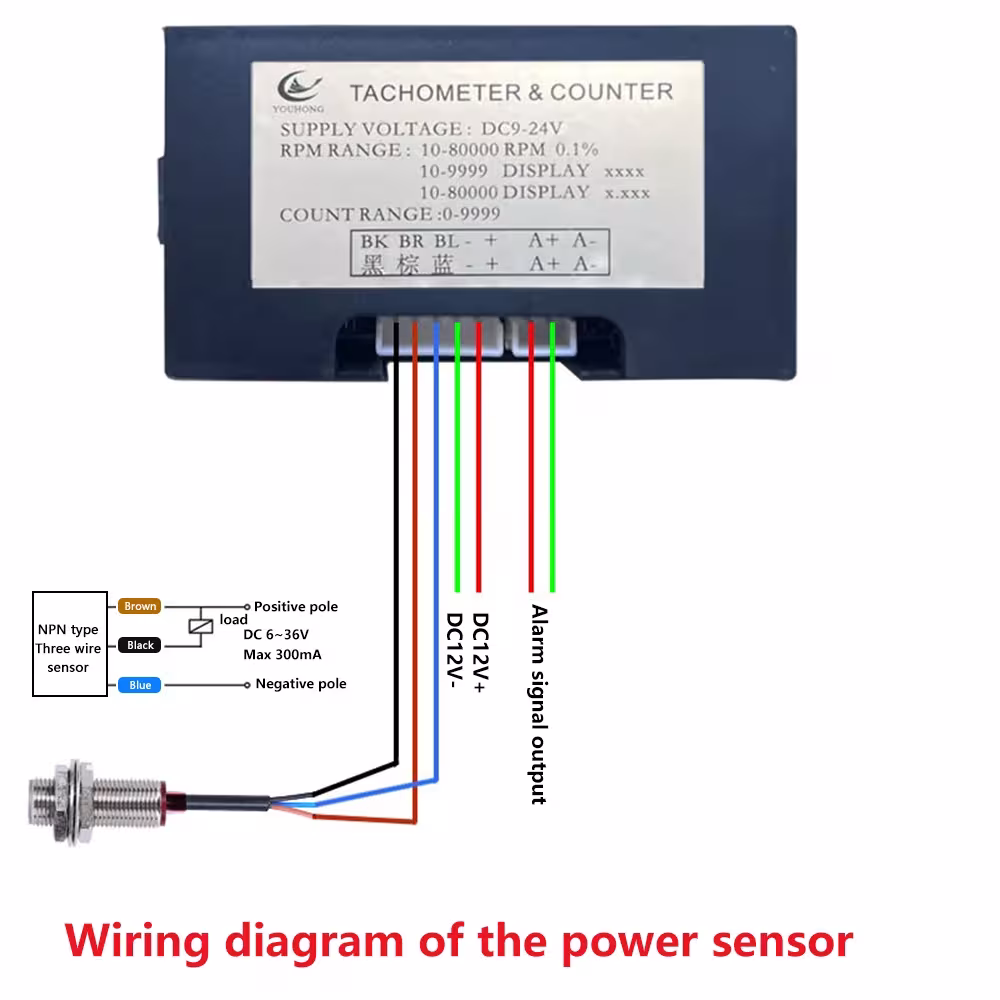

• Sensor type: Hall switch (three wires)
• Alarm output: NPN channel signal output
• Compatibility: Hall, metal proximity and infrared sensors
• Operating temperature: -10 ° C to + 50 ° C
• Overall dimensions: standard instruments in this class

Who is it suitable for and how to use it?

This digital speed meter is focused on industry specialists, technicians and equipment operators. It is possible to use agricultural compactors, metalworking machines, electric bench, ventilation systems and many other machinery. In practice, using a digital speed meter allows you to monitor the speed of rotation in real time, avoiding overloads and tearing. In combination with signalling equipment, you will ensure automatic process control.

Buyer questions

Q: Is the digital speed meter suitable for my electric engine?
Yes, the product is compatible with almost all engine types if you have a corresponding sensor. Hall switches are the most popular and preferred choice for most mutual engines.

Kl: How often do you care and change the sensors?
Sensor maintenance minimal - regularly clean from dust and moisture. Change of sensors is only needed in case of its failure, usually after 3-5 years of intensive operation.

Q: What is the warranty and delivery time?
TopSmart store provides standard warranty and delivery to Lithuania within 5-10 working days. Please ask our customer support team for more details.

By investing in this digital speed meter, you will choose a reliable solution for professional use. It is suitable for industries, small production and large operations. TopSmart store offers quality that you can trust.

Sources: Tachometer technology | TopSmart store
