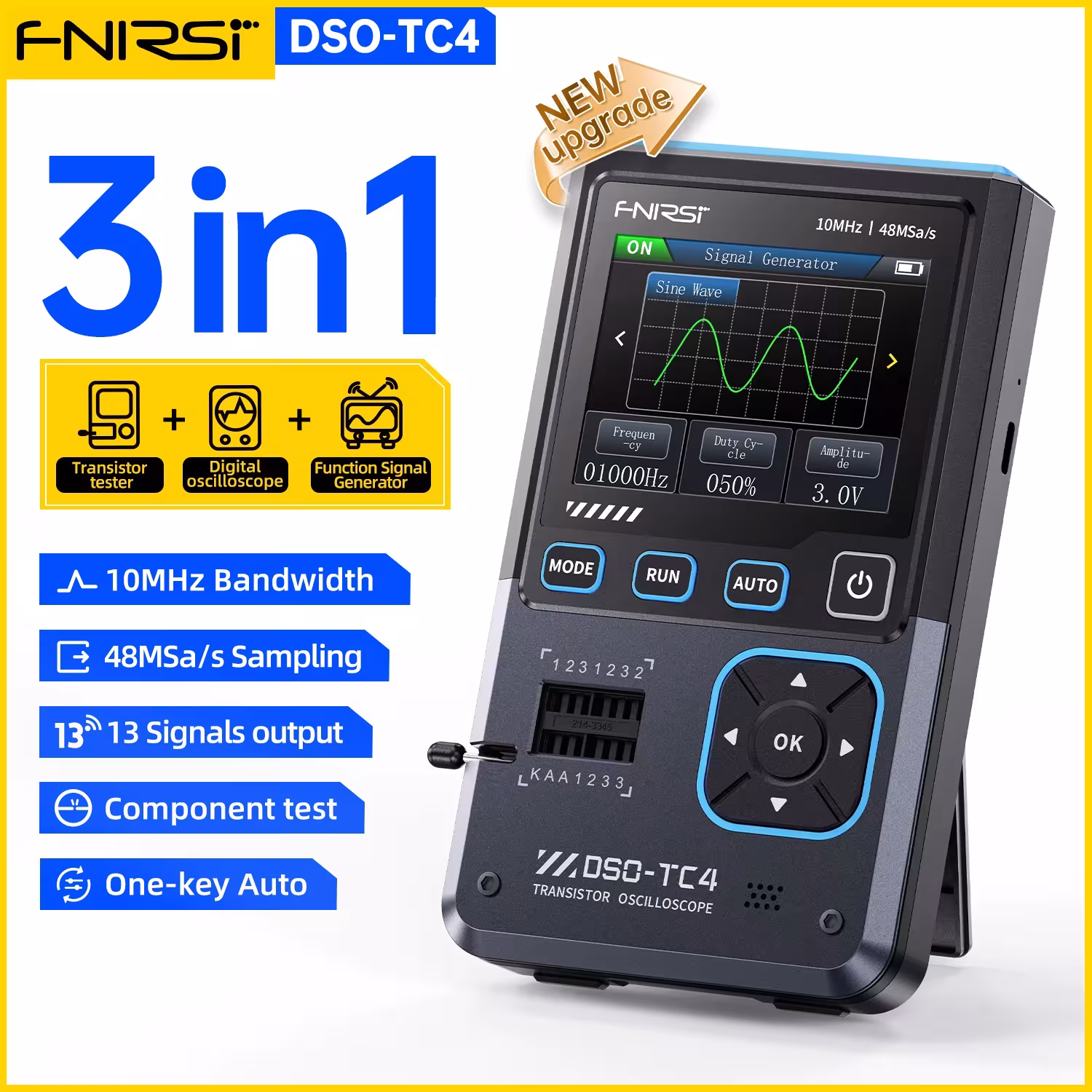

FNIRSI DSO-TC4 Handheld Oscilloscope Transistor Tester 3 in 1 10MHz

The FNIRSI DSO- TC4 is an innovative and practical multifunctional handheld oscilloscope transistor test machine 3 in 1 for electronics repair, research and development. This compact device integrates the functions of oscilloscope, signal generator and transistor testing into one powerful device. Perfect for engineers, technicians and electronics enthusiasts who need a reliable and mobile solution. A manual oscilloscope transistor test allows you to perform complex measurements and diagnostics anywhere.

Manual oscilloscope transistor testator - main features

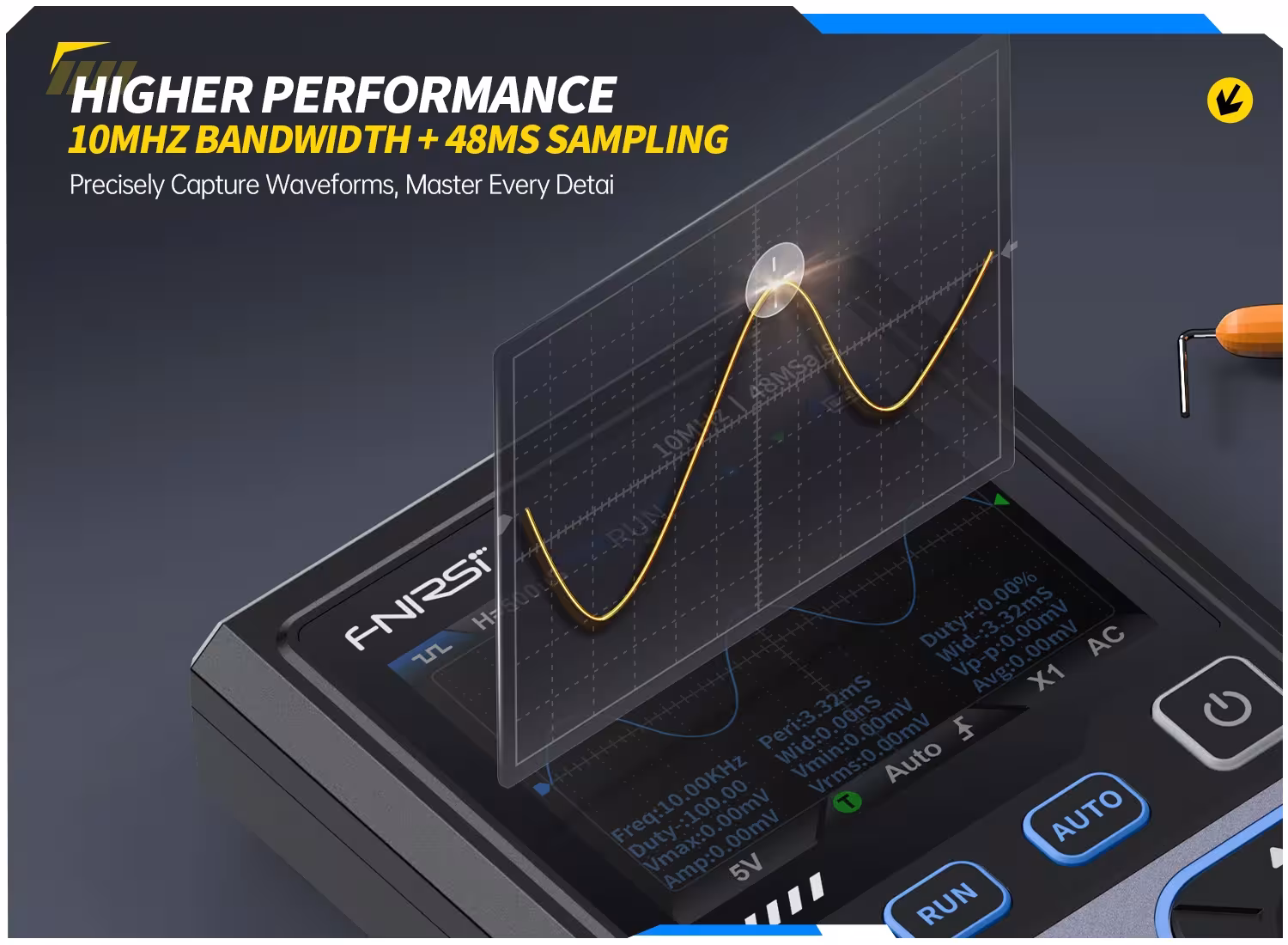

• Oscilloscope function - 48MSa / s sampling speed and 10MHz analog band allow for detailed monitoring of electrical signals and rapid identification of problems in small electronic devices.

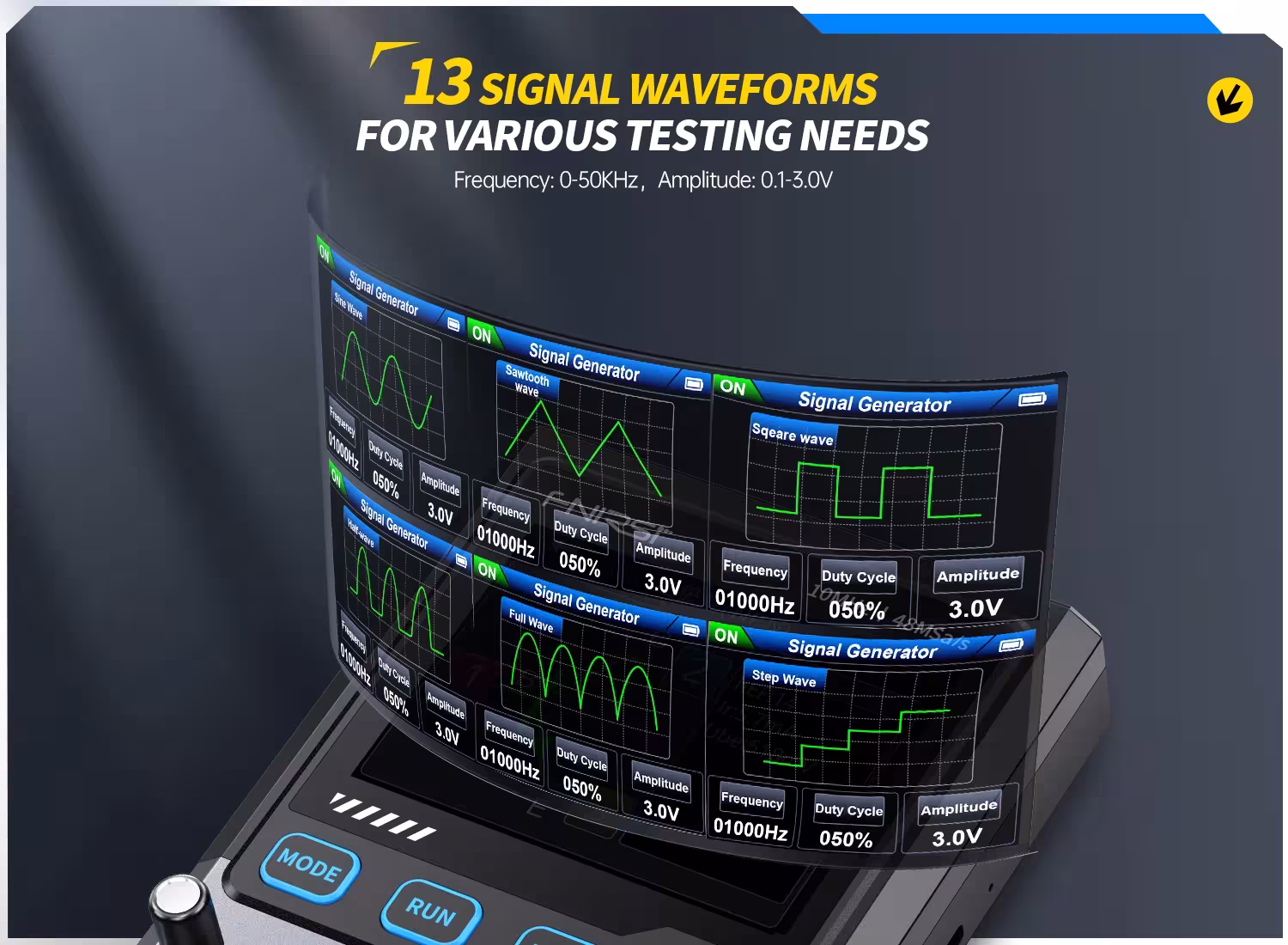

• Signal generator function - Supports 13 different forms of wave from 0 to 50 kHz, with adjustable output voltage between 0 and 3V, so that you can easily test various electronic components.

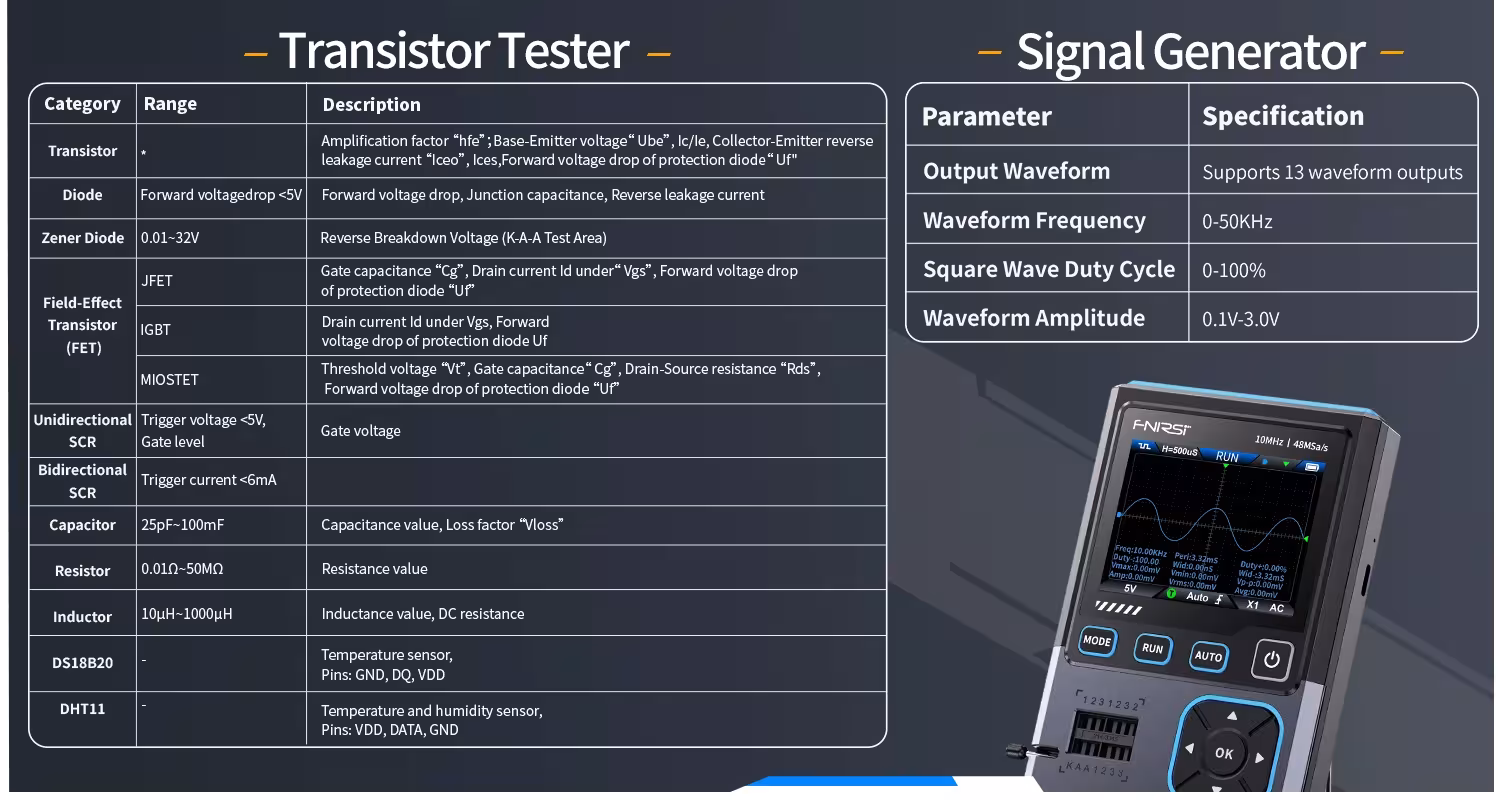

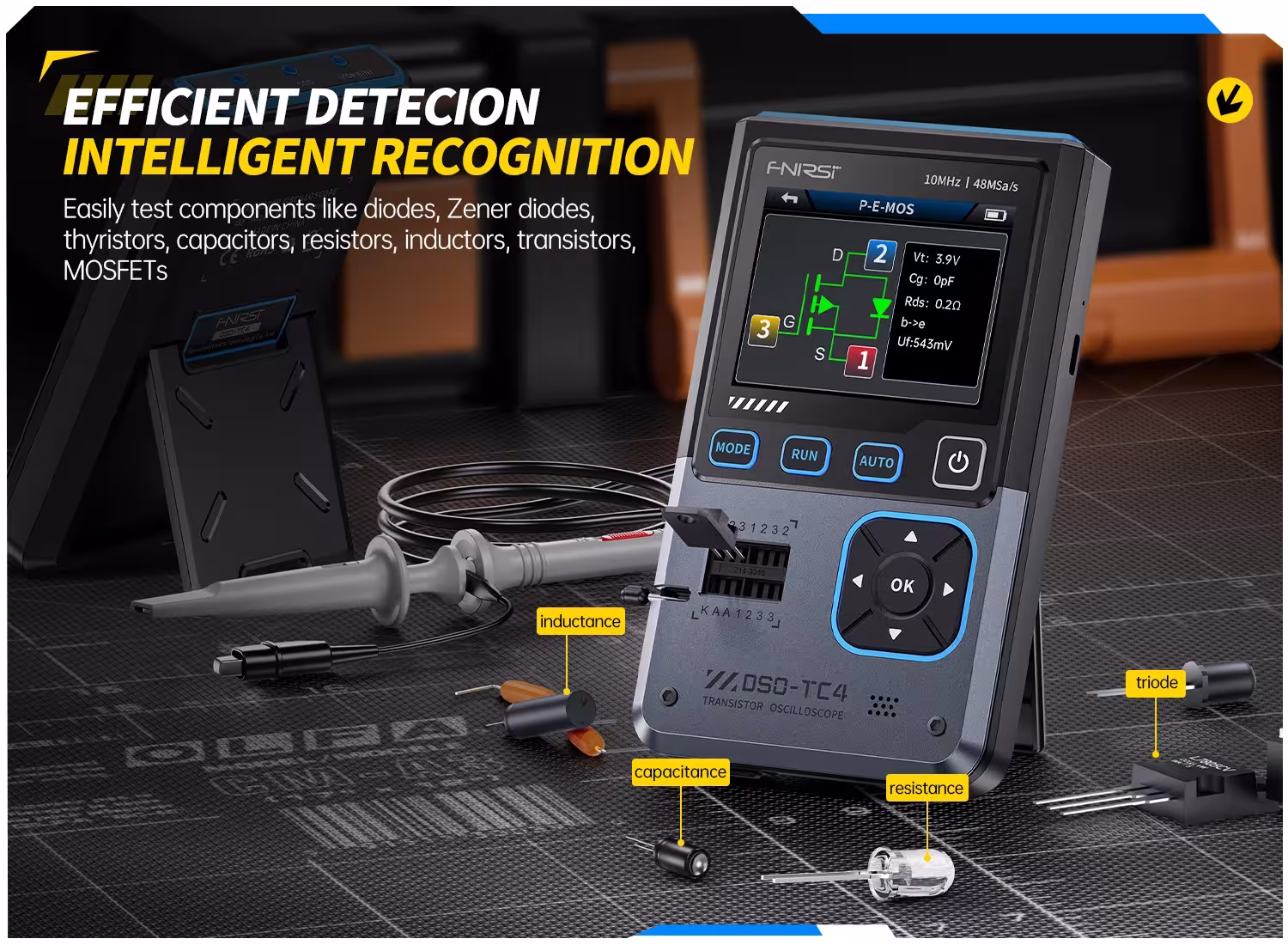

• Transistor test function - Automatically identify the types of transistors, diodes, triodones and field effect transistors (FET) and their conclusions by significantly accelerating the diagnostic process.

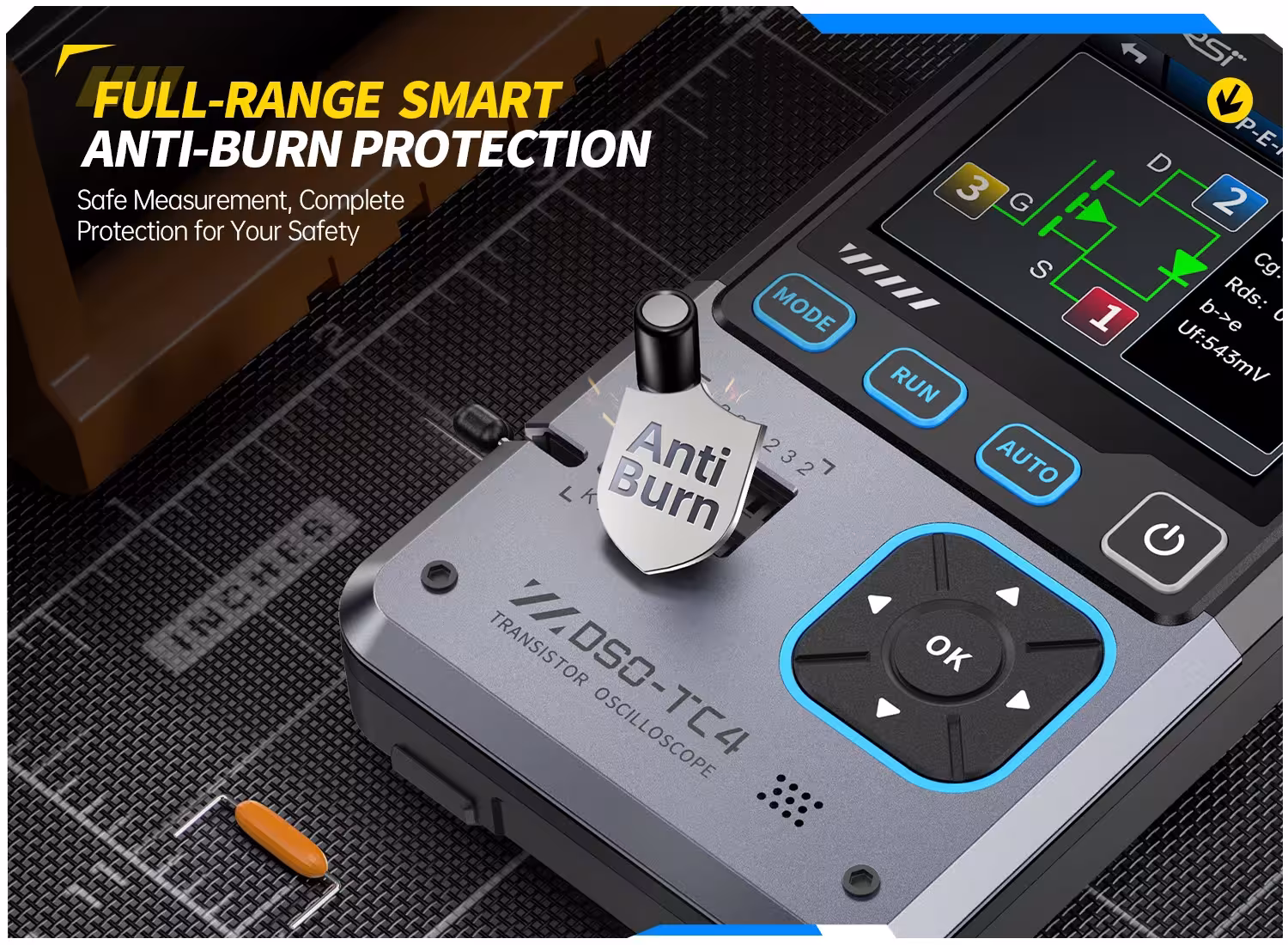

• High protection - ± 400V voltage protection protects the device from faults during hazardous measurements to ensure a long life.

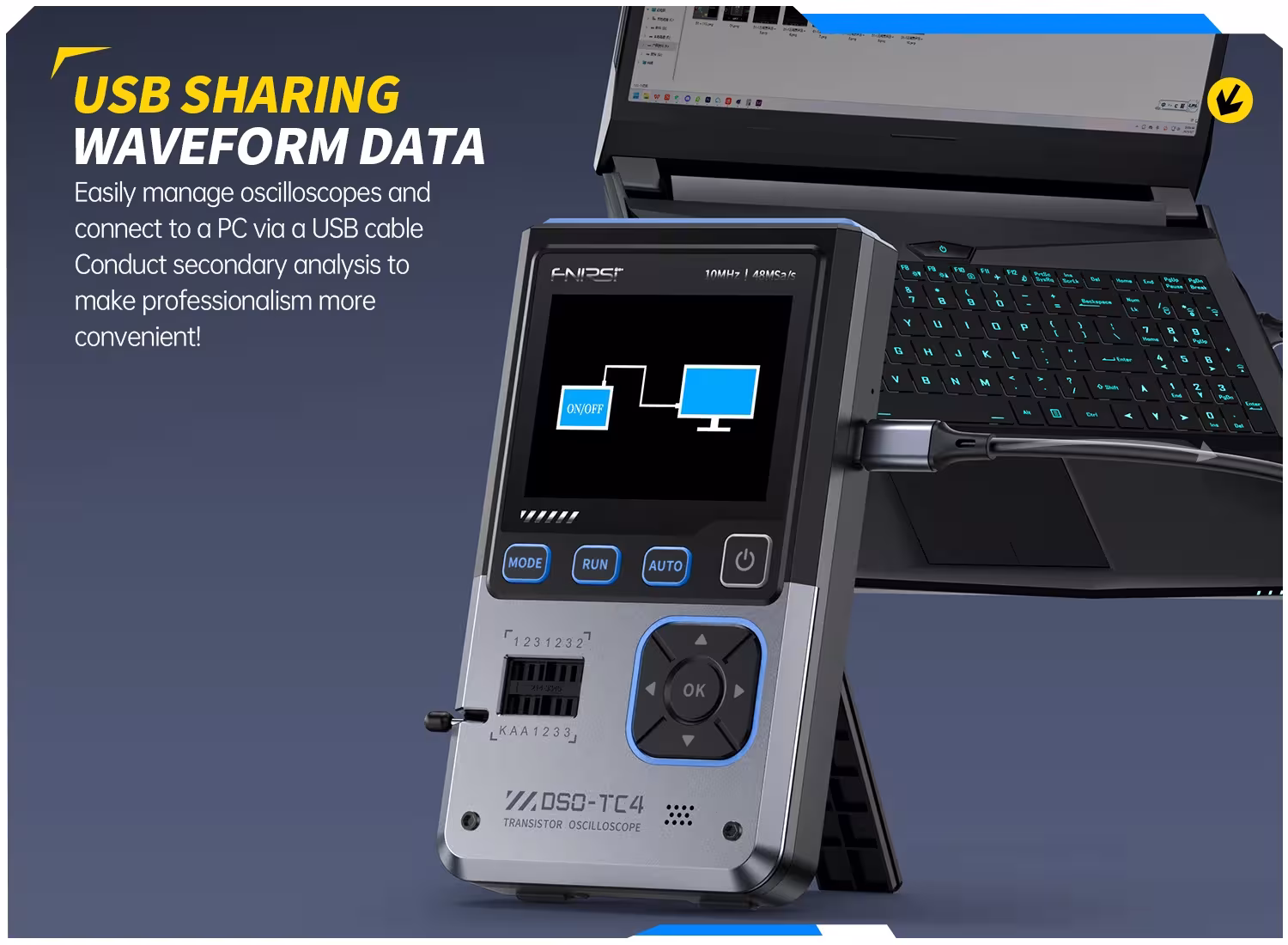

• Wave form storage - The device supports the recording and viewing of images of wave forms, facilitating data analysis and comparisons.

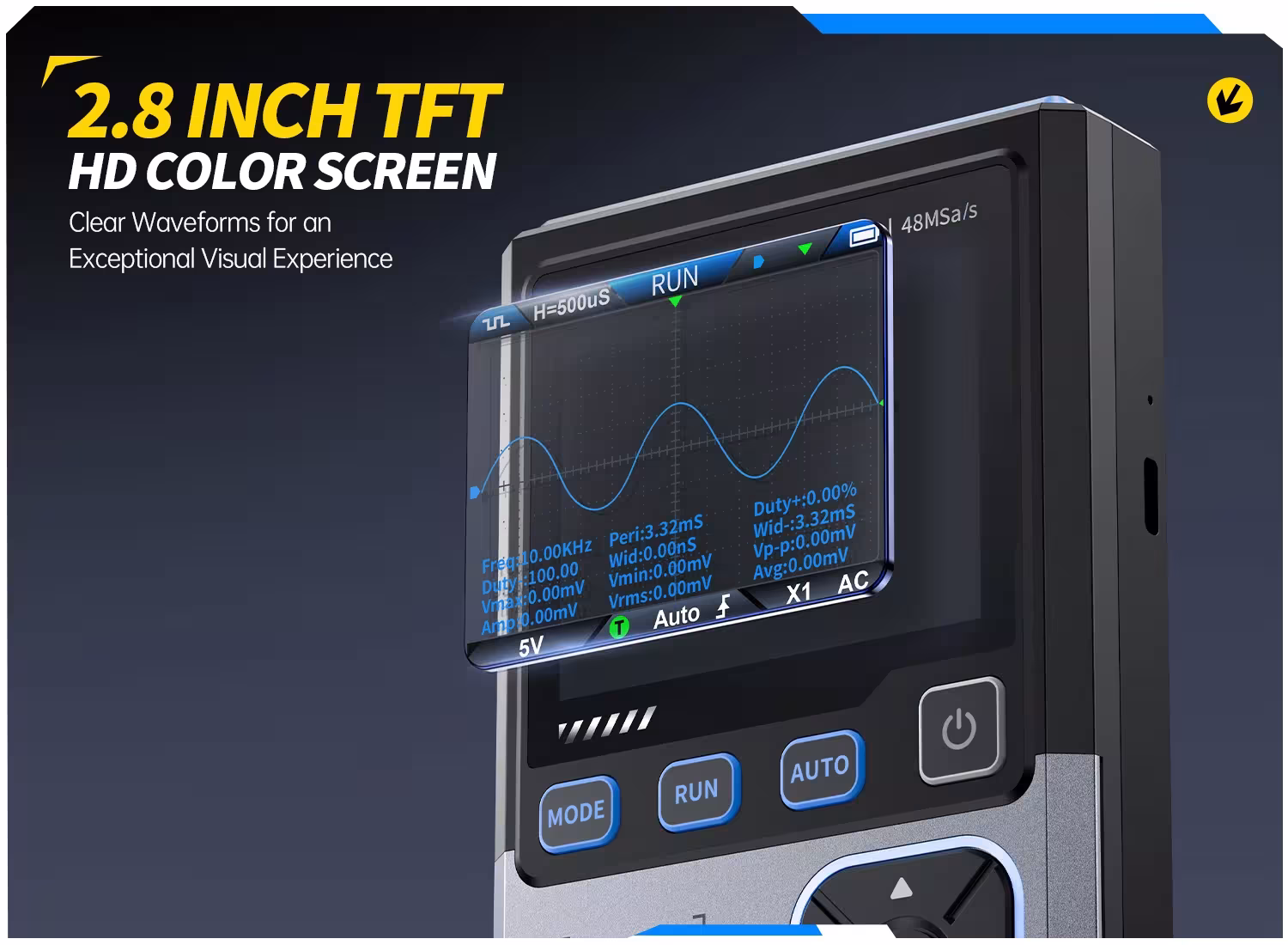

• 2.8 inch Color TFT screen - High quality display gives a clear and intuitive view, making it easy to read the results of measurements at first sight.

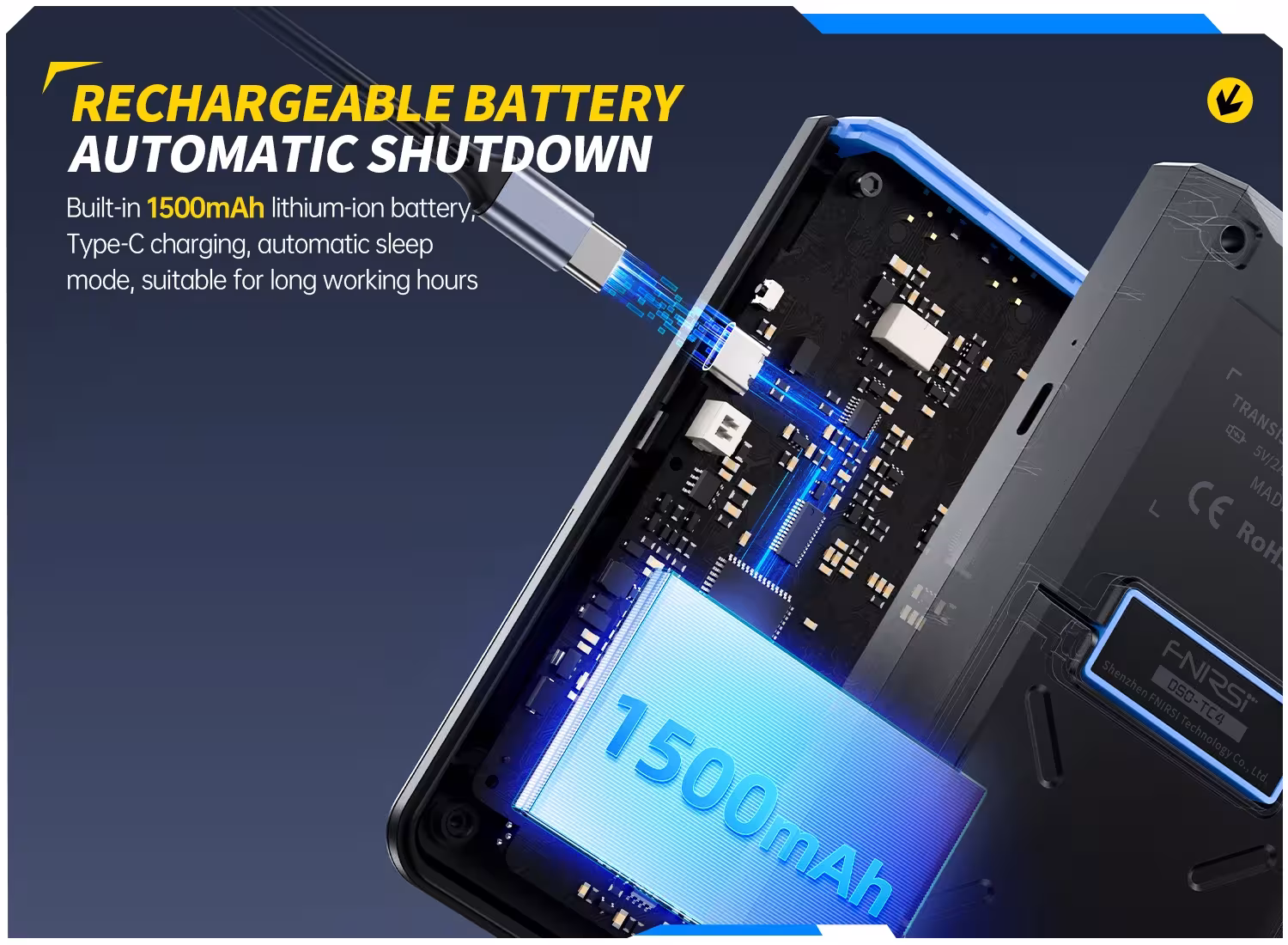

• Retractable battery — The integrated 1500mAh high-capacity lithium battery provides mobility and long operating time without having to search for power outlets.

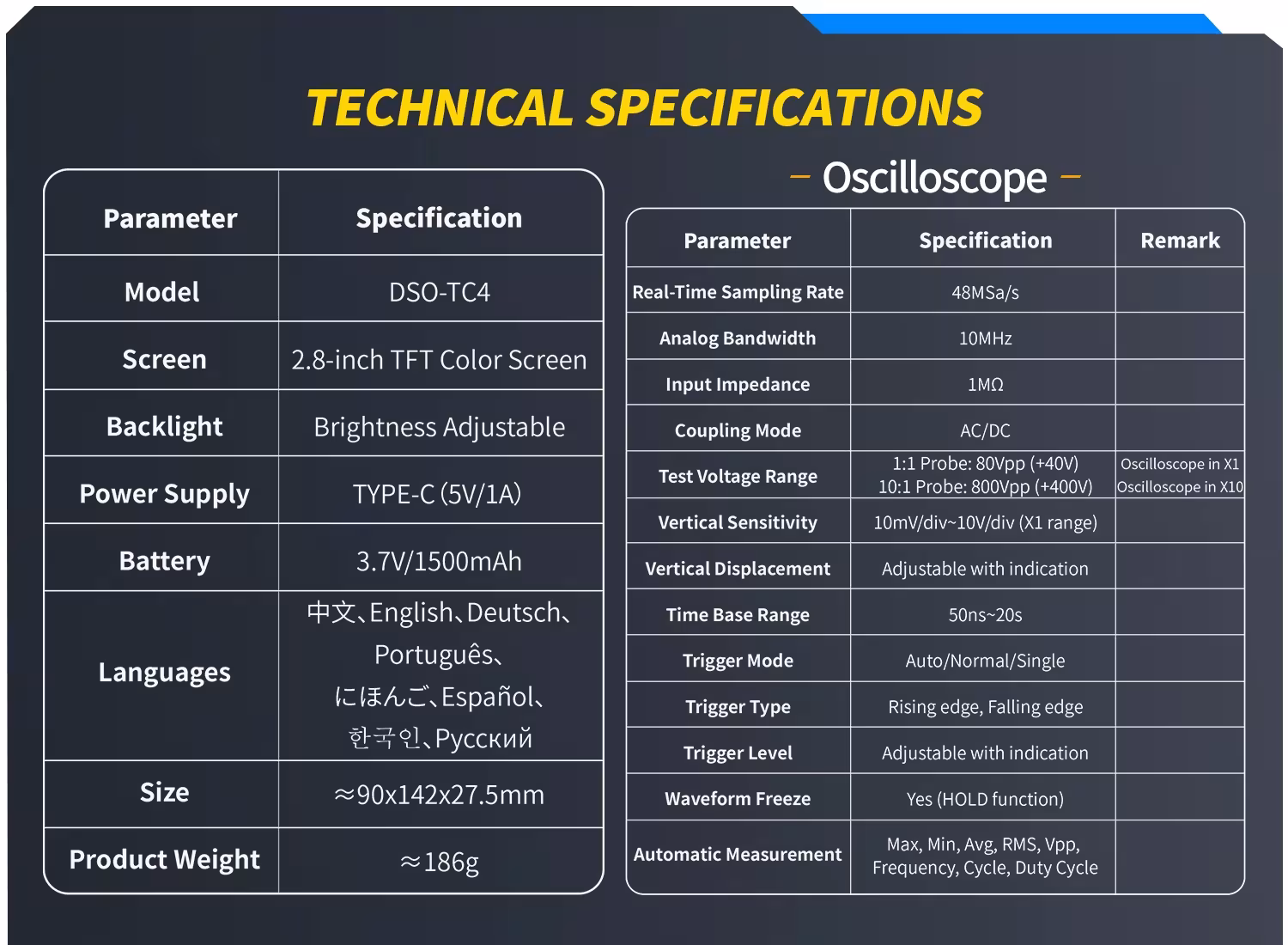

Technical specifications

• Digitising speed: 48MSa / s
• Analogue band: 10MHz
• Voltage protector: ± 400V
• Signal generator frequency: 0-50kHz
• Wave forms: 13 different types
• Output voltage: 0-3V
• Display: 2.8 inch TFT color
• Battery: 1500mAh caused by litio

Who is it suitable for and how to use it?

Manual oscilloscope transistor test is ideal for electronics engineers, technicians, radio amateurs and repair specialists. Use it to diagnose old electronics, design electronic circuits, checking components before collection and for training purposes. The device is especially useful for outdoor work, when it is necessary to quickly identify and solve electronic problems with toys. Carry it to laboratories, workshops and workplaces - its compact and battery capacity allows unlimited use wherever you need.

Buyer questions

Kl: How long does a hand-held oscilloscope battery take at one load?
The DSO@-@ TC4 1500mAh battery provides a continuous work autonomy of about 8-12 hours depending on the intensity of the functions used. The brightness of the screen and the use of the signal generator increase energy consumption, but even during intensive work the battery will be sufficient for hours.

Q: Is the manual oscilloscope transistor test suitable for beginners?
Yes, DSO- TC4 is for users at all levels. Intuitive interface with a 2.8-inch screen and automatic component recognition facilitates the start. Detailed manuals and a simple management system help you quickly learn to work with the device.

Q: What is the warranty and delivery terms?
The TopSmart.store provides a standard 12-month manufacturer guarantee for all fault causes. Delivery takes place in Lithuania in 2-5 working days. Return policy allows you to return the device within 30 days if you are not satisfied with the purchase.

The FNIRSI DSO-TC4 handheld oscilloscope transistor tester is an essential tool for modern electronics specialists. Its versatile functions, high protection, and portable design make it an indispensable solution. Invest in quality and reliability - choose the DSO-TC4 for your laboratory, workshop, or educational institution.
