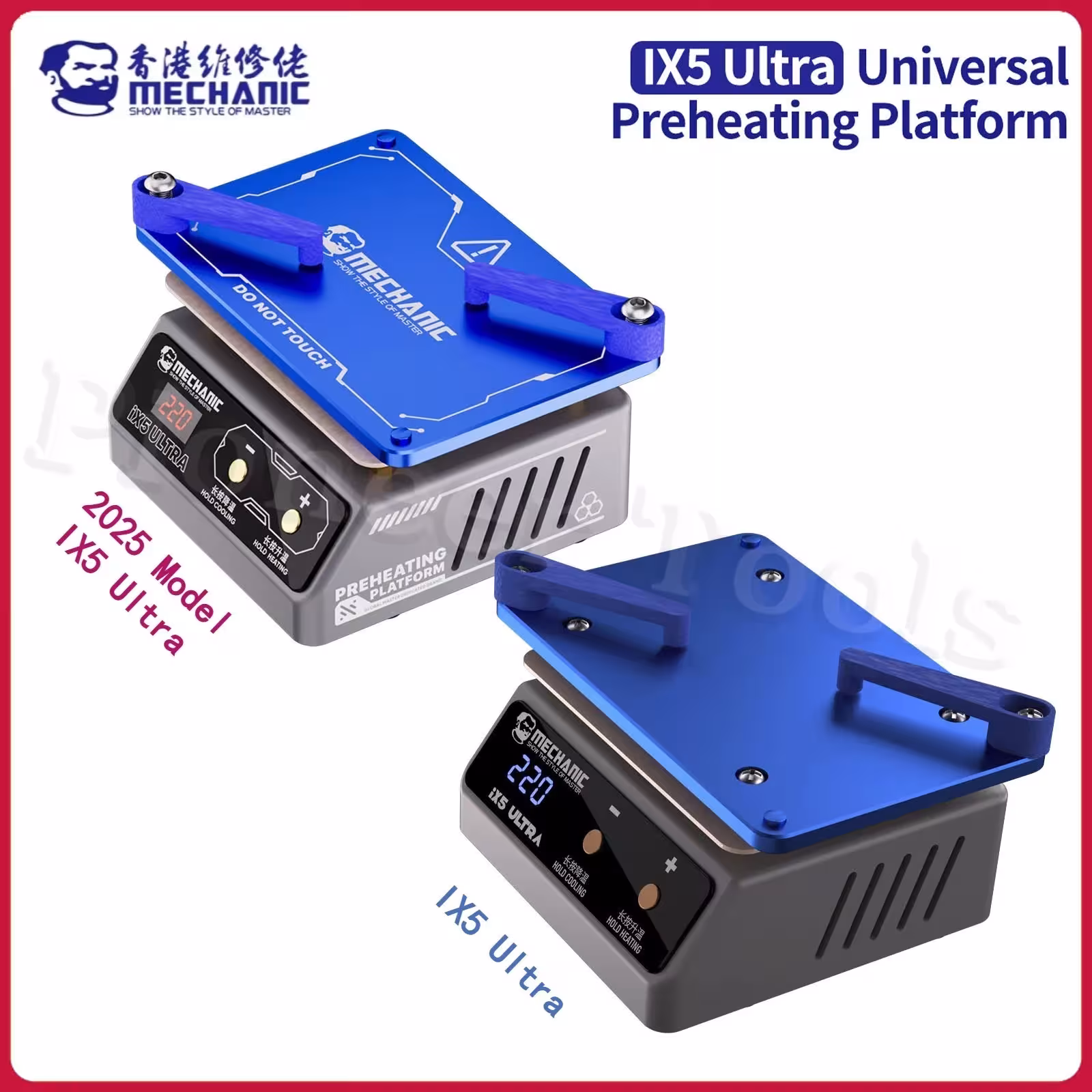

Mechanic IX5 Ultra universal motherboard heating platform

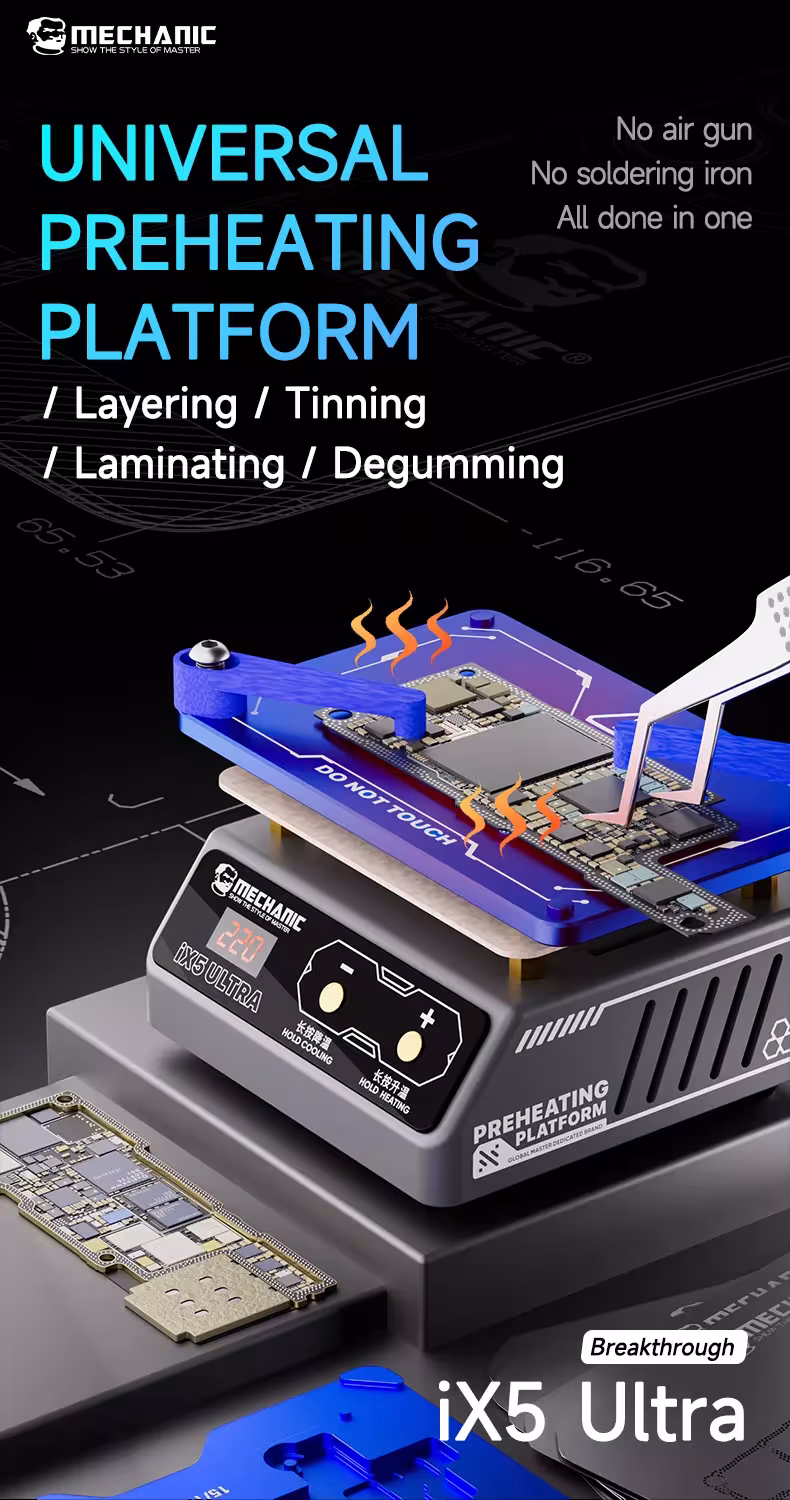

The Mechanic IX5 Ultra is an advanced motherboard heating platform designed for professional electronics repairs. This multifunctional device enables complex repairs, such as screen removal, lamination, and uniform heating. A motherboard heating platform is essential when you need to restore damaged mobile phone components or replace complex parts. It is a universal solution compatible with various phone models and repair laboratories.

Motherboard heating platform — main features

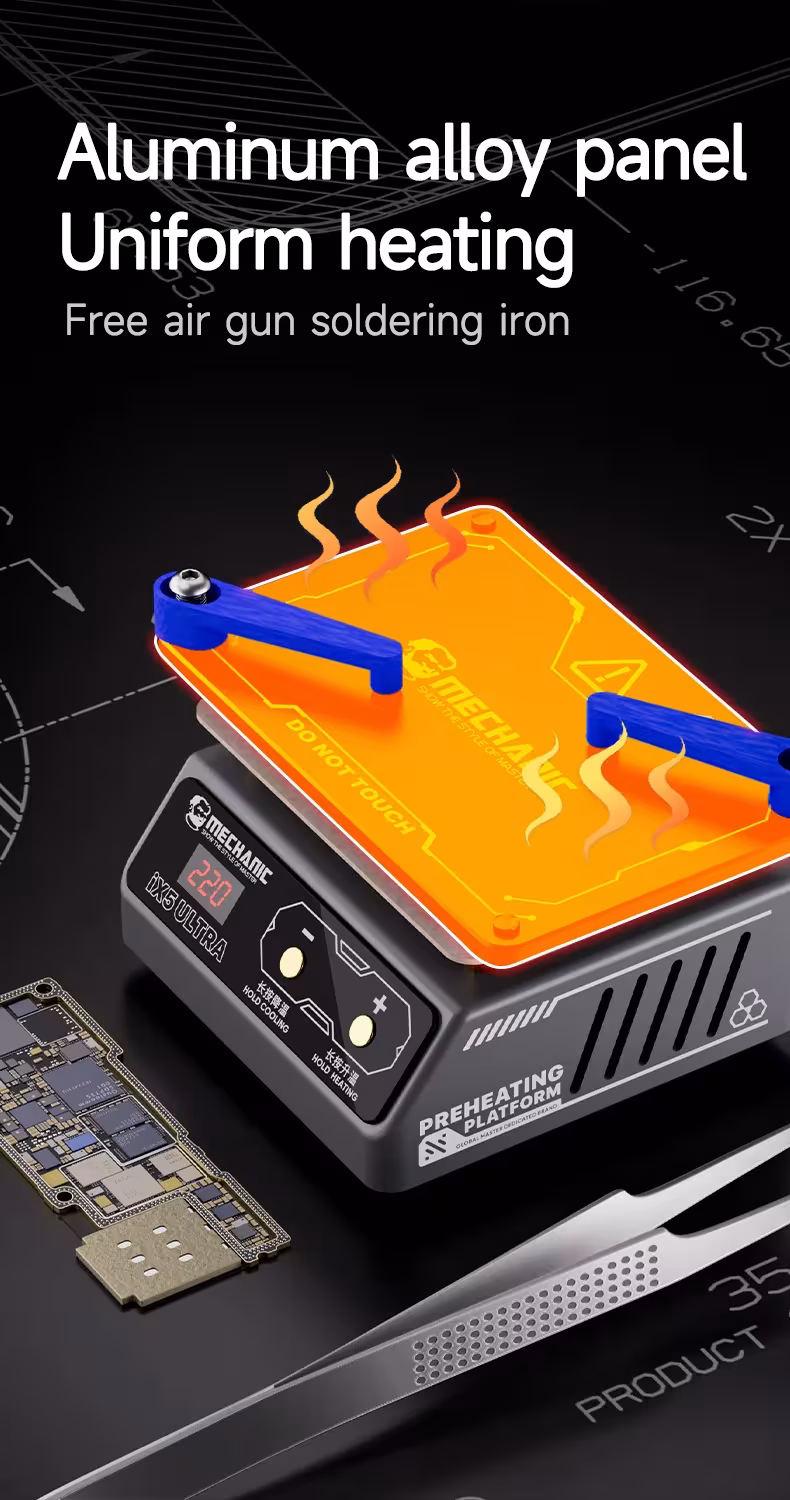

• Smooth heating — The innovative heating system ensures a uniform temperature across the entire surface of the board, from 40 to 200 degrees Celsius, avoiding local overheating spots.
• Screen removal — High temperature and precise control allow you to safely remove complex layers of cast resin without damaging the main board.
• Lamination function — Allows for re-bonding separated layers, returning the device to a working state.
• Point matrix repair — A special matrix system allows for precise heating of specific points without heating the entire board.

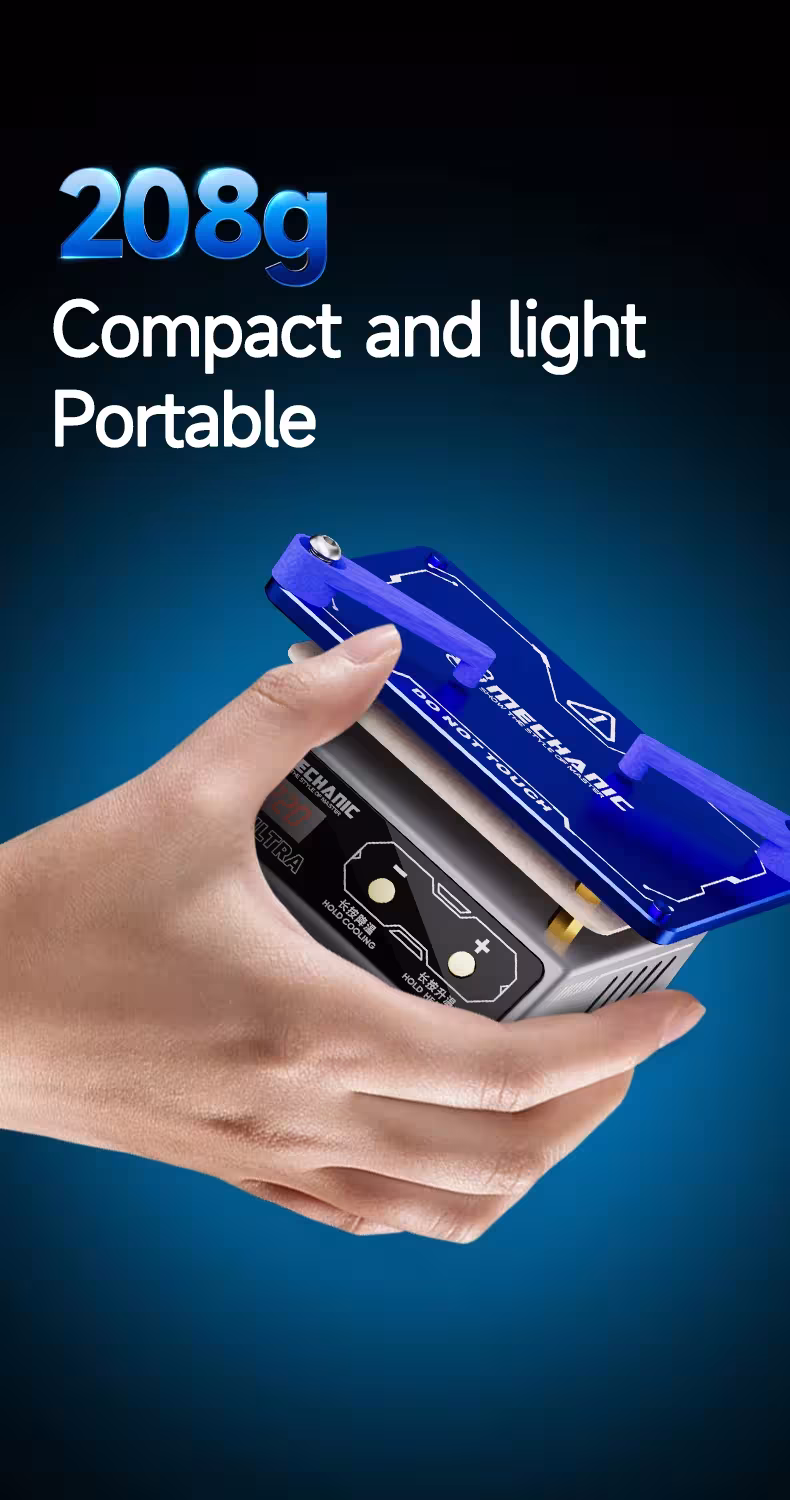

• Compact and portable — Small size and light weight allow for easy transport and use in different repair workshops.
• LED screen — Digital temperature display ensures precise monitoring and control of the heating process.
• Security functions — Automatic shut-off and over-temperature protection protect the device and the operator from injury.

Technical specifications

• Model: Mechanic IX5 Ultra
• Heating range: 40–200 °C
• Heating speed: 5–10 degrees per minute
• Plate surface size: 250 × 250 mm
• Power supply: AC 110–240 V, 50/60 Hz
• Power consumption: 1000 W
• Display: LED with digital temperature indication
• Warranty: 12 months

Who is it suitable for and how to use it?

The Mechanic IX5 Ultra heating platform is ideal for professional mobile phone and electronics repairers who regularly perform complex heating tasks. The motherboard heating platform is useful for repairing boards, removing BGA chips, and performing re-soldering work. The user should set the desired temperature, place the device on the platform, and wait for it to heat up. Tip: always test on a scrap board first before using it on valuable devices.

Buyer questions

Q: Can it be used for different phone models?

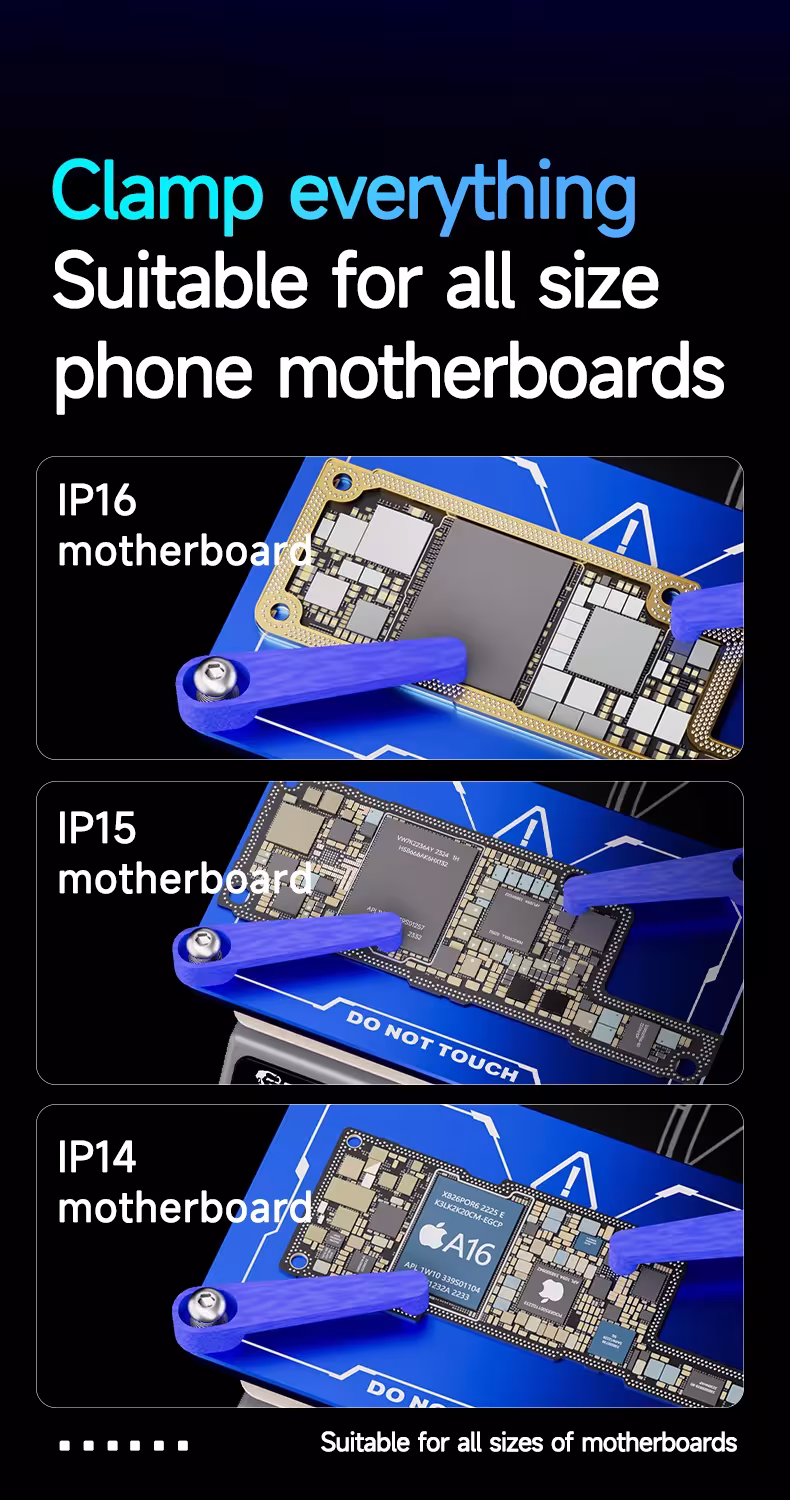

Yes, the Mechanic IX5 Ultra is universal and designed for most mobile phone and electronics device boards. Due to its large heating surface (250 × 250 mm), it is suitable for almost all standard boards. However, it is recommended to check the dimensions of your specific phone model before starting the repair.

Q: How long does it take for the platform to heat up to the maximum temperature?
The Mechanic IX5 Ultra reaches a maximum temperature of 200 degrees Celsius in about 15–20 minutes. The heating speed is about 5–10 degrees per minute. This speed is safe and ensures stable, controlled heating without rapid temperature spikes.

Q: Does the device have safety features?
Yes, the Mechanic IX5 Ultra is equipped with automatic shut-off and over-temperature protection. If the device overheats or if you forget to turn it off, it will shut down automatically. The LED display shows the actual temperature, so you can monitor the process.

The Mechanic IX5 Ultra motherboard heating platform is an investment in quality and reliability. For professionals and hobbyists who want to perform mobile phone repairs precisely, this device is an indispensable assistant. It pays to have a reliable heating system nearby.
