NOYAFA NF-8508 Network cable tester with optical power measurement function

NOYAFA NF-8508 is a professional network cable tester with integrated optical power measurement function for IT specialists, electricians and telecommunications engineers. This versatile tool allows you to quickly diagnose cable problems, test PoE voltage, measure cable length and detect fiber violations. A network cable tester with an optical power measurement function is an indispensable device in modern telecommunications infrastructure, ensuring high accuracy and reliability of the analysis.

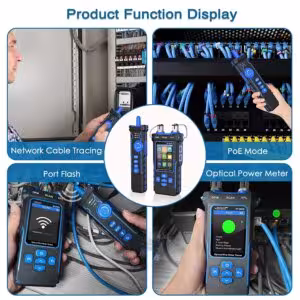

Network Cable Tester Optical Power - Key Features

• Cable continuity test - whether the cable is intact and still intact. The function helps to quickly identify broken wires or bad connections in crystalline konektor twisted.
• PoE test with automatic identification - automatically determine the source of midspan / endspan / power in all 8 nuclei. The system recognises standard and non-standard devices by providing full control when the equipment is installed quickly.
• Optical power measurement function - supports 850 / 1300 / 1310 / 1490 / 1550 / 1625nm wavelengths with the ability to change units (dBm, dB, mW, µW, nW). Ideal for testing modern optical networks.
• Visual detection of pests (VFL) Accurately detects fiber breaks, weak connections, bends, or cracks. Helps quickly locate problems in physical cable runs.
• Cable length measurement - precise determination of cable length in metres. It is easier to plan installations and document networks professionally.
• Artificial lamp function with LED illumination - the receiver has an integrated lamp function which ultimately illuminates the working areas in a wet or submerged environment. No additional flashlight required.
• Battery and Type- C charging - Both devices have integrated 1500mAh polymer batteries with Type- C charging port. No need to change the battery, one charging takes a long time.

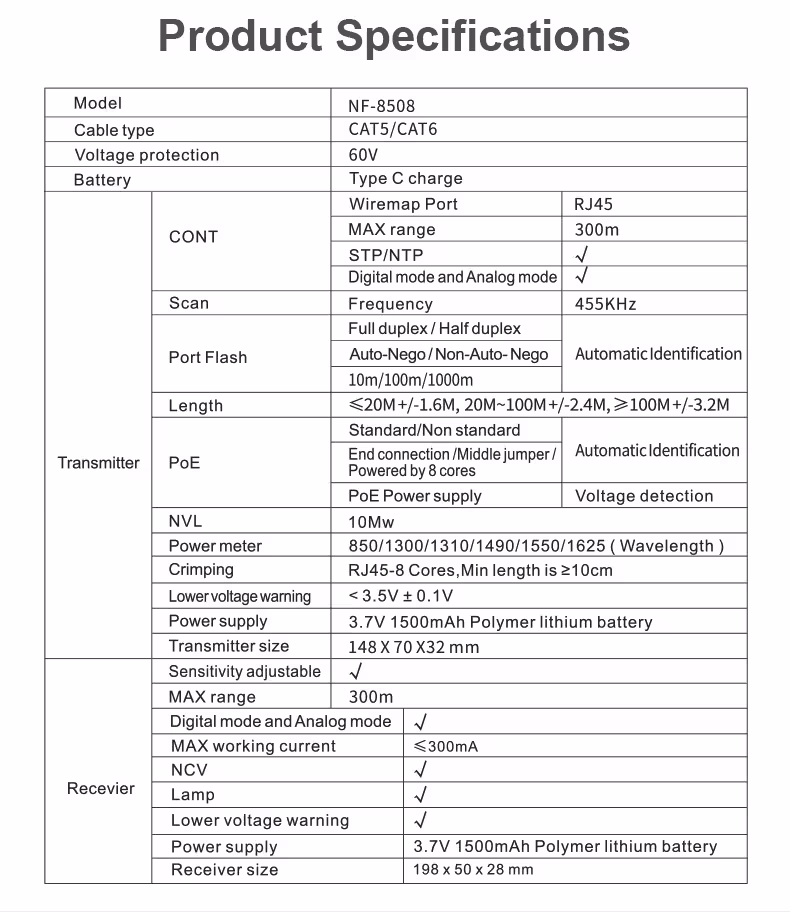

Technical specifications

• Wave lengths (nm): 850, 1300, 1310, 1490, 1550, 1625
• Measurement units: dBm, dB, mW, µW, nW
• • Cable length setting: up to 350 meters
• PoE test: 8 kernel identification
• Acumulator: 1500mAh polymer battery
• Charging: Type- C (USB-C)
• Display: LCD digital display
• Receiver sensitivity: adjustable, up to 300m of non-shielded cable
• Additional modes: NCV detection, flashlight, replacement by menu

Who is it suitable for and how to use it?

NOYAFA NF-8508 Network Cable Tester with optical power measurement is recommended for IT administrators, electricians, telecommunication network installers and maintenance professionals. It is ideal for server shaft diagnostics, for testing local networks (LAN), for checking optical fibre lines and identifying PoE devices. In practical terms - if the cable does not work, installed transmitter into one cold, receiver to another, and the screen immediately shows whether there is a gap, where and what problem. Use systematically before switching on critical systems.

Buyer questions

Kl: Can we test simple cable cables for home lighting?

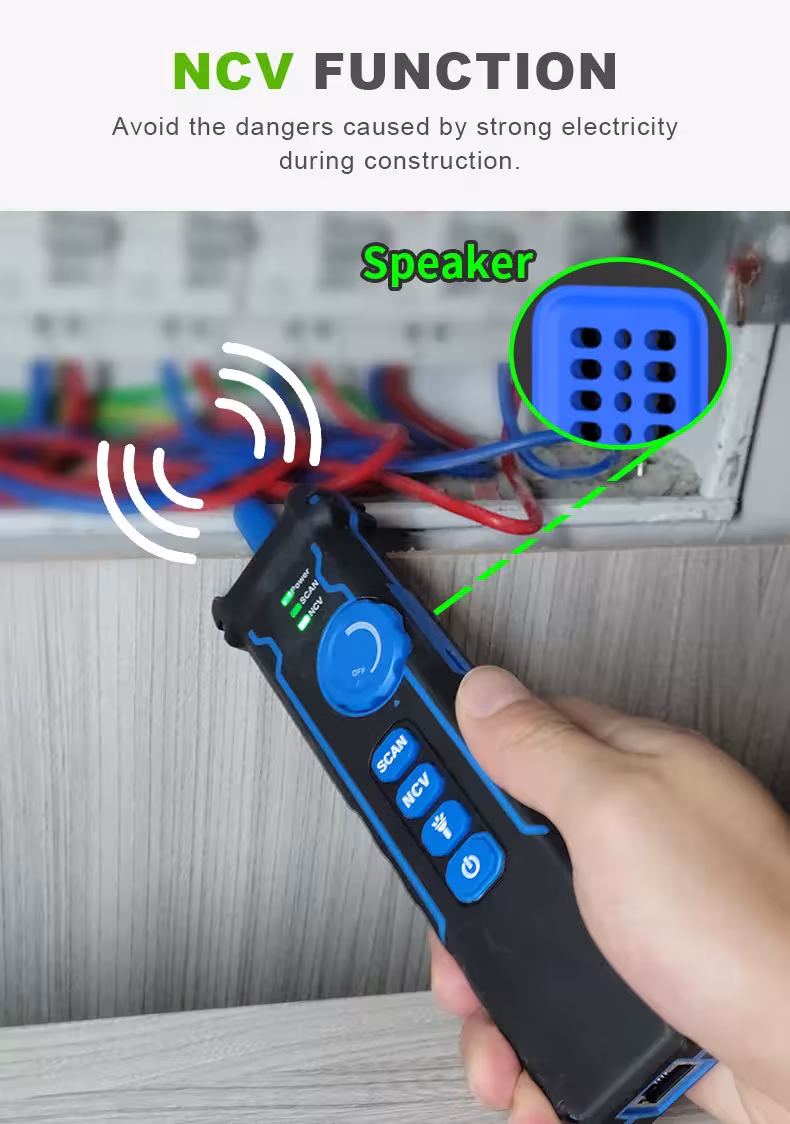

Yes, the receiver has an NCV (inviolable voltage detection) function to safely detect AC voltage in home wiring. However, NOYAFA NF-8508 is optimised for network cables and not for power supply.

Kl: How long does one TypeC charge take?
The alkaline battery is completely empty to full - approximately 2-3 hours depending on the loading capacity. The capacity of 1500mAh is sufficient for the entire working day to use the constant.

Q: Is there a guarantee and what is its duration?
The TopSmart store offers a standard production guarantee for devices. You will find the exact duration and conditions of the guarantee in the order confirmation. We recommend protecting the receipt.

NOYAFA NF-8508 is a necessary investment for professionals dealing with fast and accurate network cable tester with optical power measurement. If you work with networks daily, this versatile tool will save time and increase diagnostic accuracy.
