NOYAFA NF-8509 2 in 1 Network Cable Tester with Digital Multimeter Function

NOYAFA NF-8509 is a professional network cable tester for IT specialists, electricians and network administrators. This 2 in 1 device combines the functions of the network cable tester and the digital multi-meter to quickly diagnose the CAT5 and CAT6 cables. Network Cable Tester helps to check short connections, open circuit, cross links and normal connections, as well as to measure cable length from 5 to 200 meters.

Network Cable Tester - Key features

• Line testing function - quickly diagnoses short circuits, open circuit parts, cross links and normal connections, the test distance is up to 2000 meters.
• Cable length measurement - accurate measurement of the length of the CAT5 and CAT6 cables from 5 to 200 metres without requiring calibration and a tolerance of only ± 3 metres.
• PoE Test Mode - detects power cables and power supply voltage compatible with both standard and non-standard PoE sources, and therefore idealen for professional installers.
• Line hunting regime - two defined conditions (normal and fault rejection modes) help to quickly find the exact cable between hundreds of others, the sound becomes stronger towards the target.
• Port Flashing Function - quickly determines the network cable in the ports of switches and routers, marking them with LED signals.

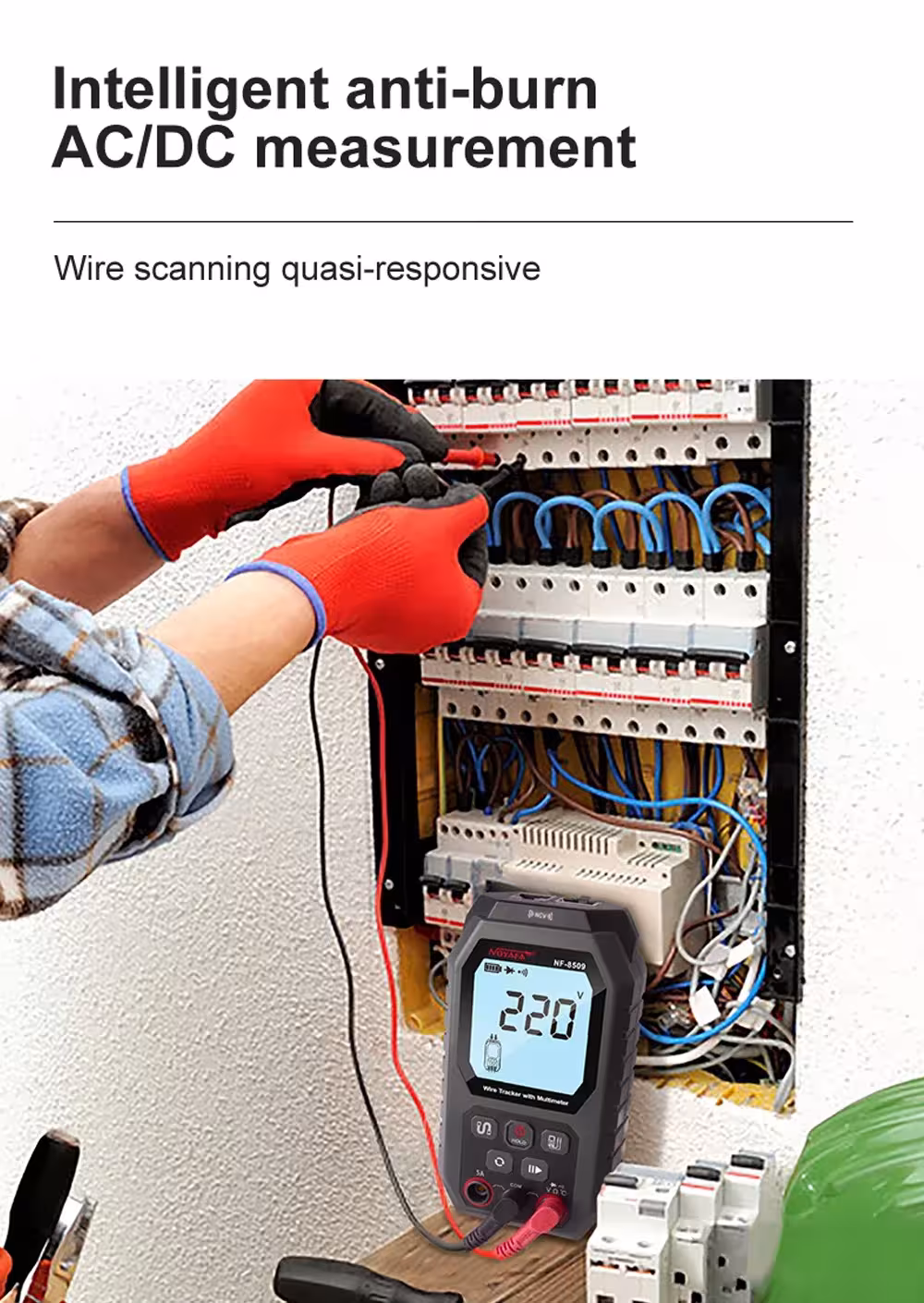

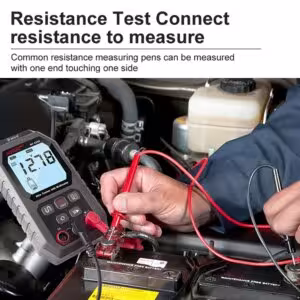

• Digital multi-meter function - measuring voltage, current and resistance, so this cable tester is also suitable for common electrical problems.
• Low battery indication - continuous operation with 3,7V / 1500mAh lithium battery in the sender and battery receiver, the system reports a low battery.

Technical specifications

• Symbol: NOYAFA
• Model: NF-8509
• Type: Network Cable Tester + Multimeter
• Dimensions (length x width x depth): 205x38x29mm (sender), 138x76x34mm (receiver)
• Connectable cables: CAT5, CAT6
• Length range: 5-200 meters (± 3 meters tolerance)
• Test distance: up to 2000 meters
• Battery: 3,7V / 1500mAh lithium battery (sender)
• LED lighting: Yes
• Low battery indication: Yes

Who is it suitable for and how to use it?

Network Cable Tester NF-8509 is ideal for IT professionals, network administrators, electricians and professionals who often work with the network infrastructure. It is used: to check the installation of the new network, to detect faulty connections, to measure the length of the cable and to diagnose the PoE power system. Just connect the end of the sender to one end of the cable, the receiver to the other, and the system will like the state of the connection. Line hunting is indispensable in large network installations where you need to quickly find a specific cable.

Buyer questions

Q: Does this network cable tester work with the power lines?
No, the cable length cannot be measured using the power cables, as this will distort the results. However, line testing and line hunting functions function with both fed and non-fed lines, making it very versatile.

Q: What is the duration of the battery and how to change it?
3,7V / 1500mAh lithium battery should work hundreds of working hours in the consignment depending on the frequency of use. The battery is changed by removing the back panel. Additional batteries are sold separately or in a green copy of the original packaging.

Q: Is there a guarantee and how with delivery?
The product has a manufacturer's guarantee and complies with international standards. Delivery to Lithuania takes place within 5-14 working days and the packaging is fully protected. The TopSmart store offers a refund guarantee for a period of 30 days.

NOYAFA NF-8509 Network Cable Tester is a necessary tool for professionals and enthusiasts who want to quickly and accurately diagnose the network infrastructure. This 2 in 1 device saves time and money by changing several different specialists and tools into one compact device.
