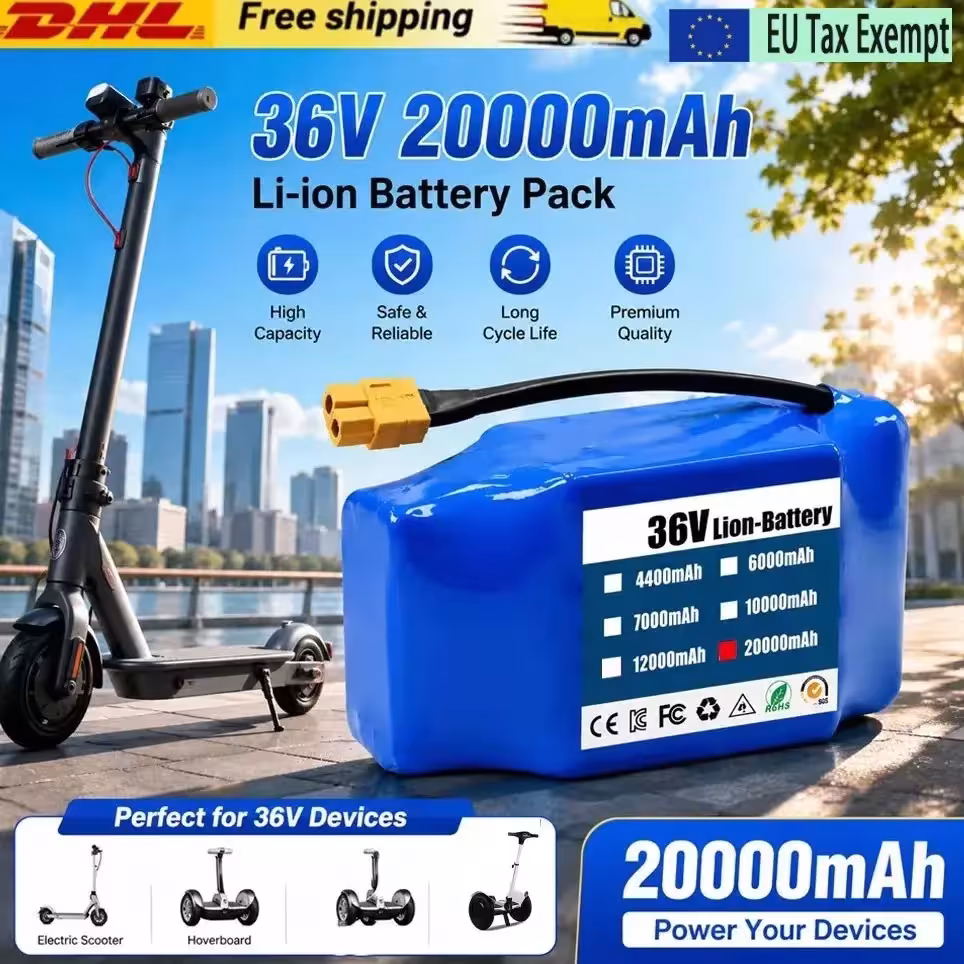

Original 36V 20.0Ah Lithium Battery 10S2P 18650 for Electric Self-Balancing Scooter Hoverboard

Original 36V 20.0Ah lithium battery designed for electric self-balancing scooters (hoverboards) and other similar electric devices. This 36v 20ah hoverboard battery is made using reliable 18650 format lithium-ion cells, connected in a 10S2P configuration to provide stable power and longer runtime. An excellent choice for those who want to upgrade an old battery or have a spare.

Key features of the 36v 20ah hoverboard battery

• Large capacity — 20.0Ah capacity provides longer runtime without frequent charging, convenient for longer trips.
• Reliable 10S2P configuration — The arrangement of 18650 cells guarantees a stable 36V voltage and consistent power delivery.
• High discharge current — Up to 20A continuous and 35A pulse discharge current allows for sufficient power for speed and acceleration.
• Wide temperature range — Operates from -20°C to 60°C during discharge, suitable for use in various weather conditions.
• Lightweight and compact — Weighs only 0.9 kilograms, so it won't add extra weight to your device.
• Long service life — Up to 800 charge cycles, so the battery will last a long time even with intensive use.

Technical specifications

• Model: Customized 18650 36V Lithium ion Battery 10S2P 20 Ah, 4 Wh, 36V Electric Scooter Battery
• Size: Customizable
• Rated voltage: 36V
• Nominal capacity: 20.0Ah
• Discharge cut-off voltage: 30V
• Maximum charging voltage: 42V
• Standard charging current: 2.2A
• Standard discharge current: 2.2A
• Maximum continuous (DC) discharge current: 20A
• Maximum pulse discharge current: 35A
• Weight: 0.9 kg
• Operating temperature (under load): 0℃~45℃
• Operating temperature (discharge): -20℃~60℃
• Storage temperature: 0℃~35℃
• Capacity at room temperature: 20.0Ah
• Service life: 800 cycles

Who is it suitable for and how to use it?

This battery is designed for owners of electric self-balancing scooters (hoverboards) who need to replace an old or damaged battery, as well as for manufacturers and repair shops. The 36v 20ah hoverboard battery is easily integrated into the existing system, but it is essential to check the compatibility of the connectors before installation. It is recommended to adhere to the specified temperature limits to ensure the battery lasts longer and operates safely.

Buyer questions

Question: What is the capacity and voltage of this battery?
The nominal voltage of the battery is 36V, and the capacity is 20.0Ah. This provides enough power for longer operation of the electric self-balancing scooter without frequent recharging.

Question: At what temperature can this battery be used?
During operation, the battery operates from 0℃ to 45℃, while the discharge range is wider — from -20℃ to 60℃. The storage temperature should be 0℃~35℃.

Question: How many charging cycles can this battery withstand?
The manufacturer states that the battery life is up to 800 full charging cycles, after which the capacity may gradually decrease, depending on the intensity of use.

Choose a 36v 20ah hoverboard battery if you are looking for a reliable and long-lasting power source for your electric scooter. It is ideal for both personal use and repair shops.
