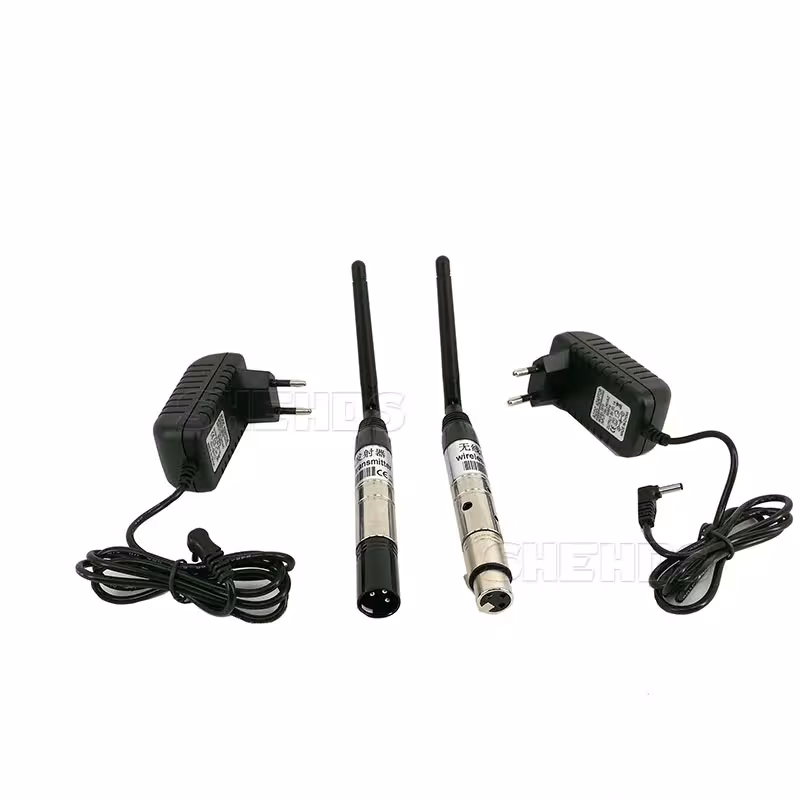

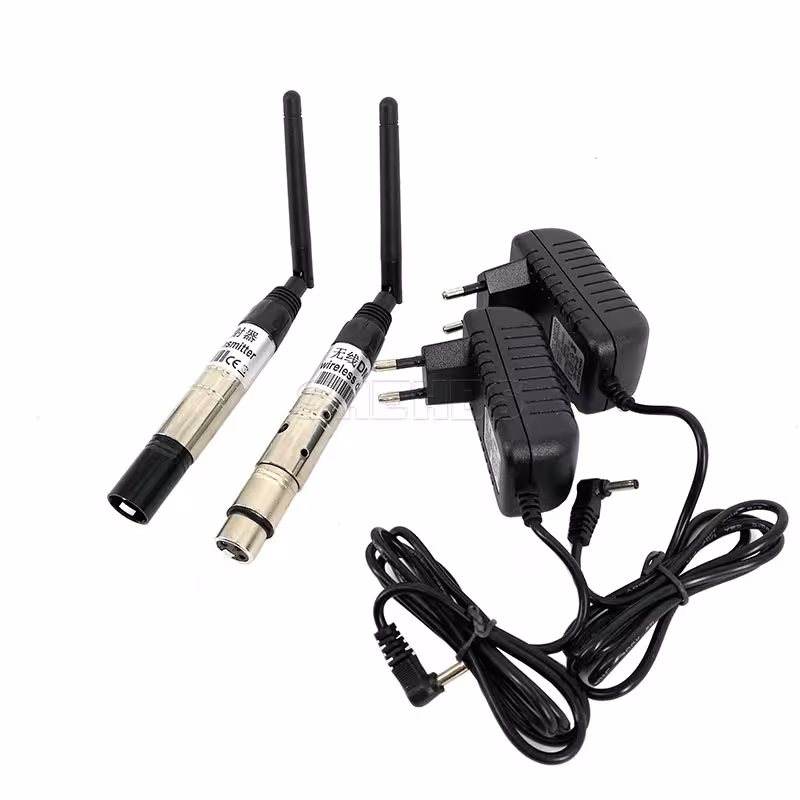

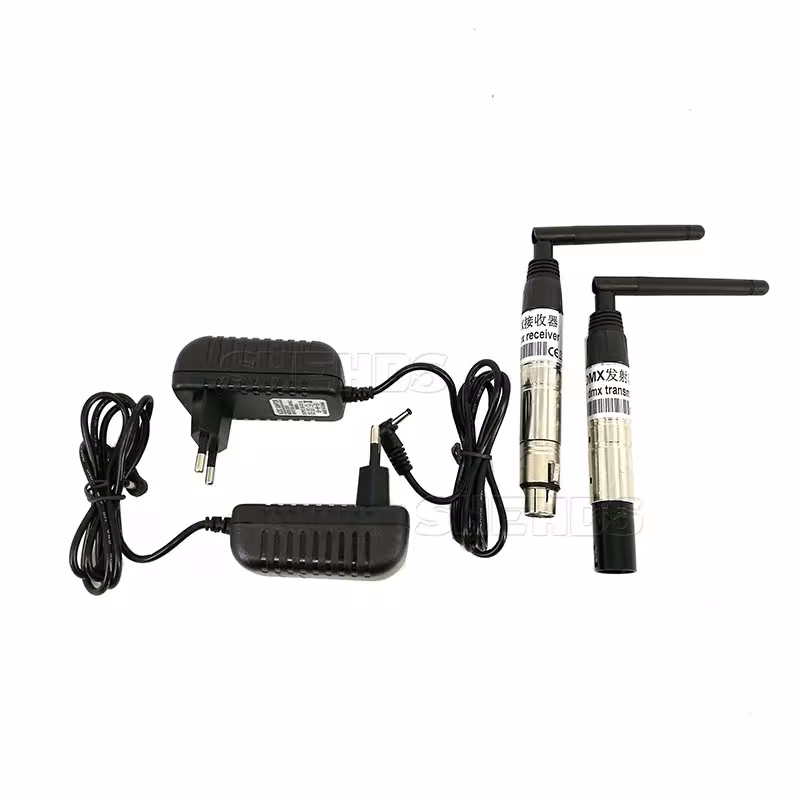

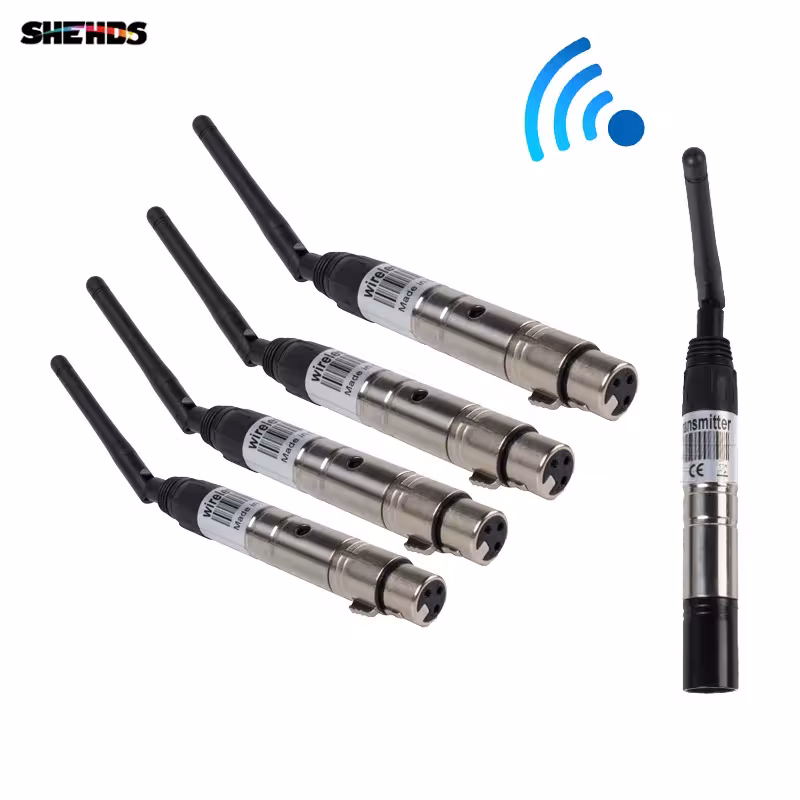

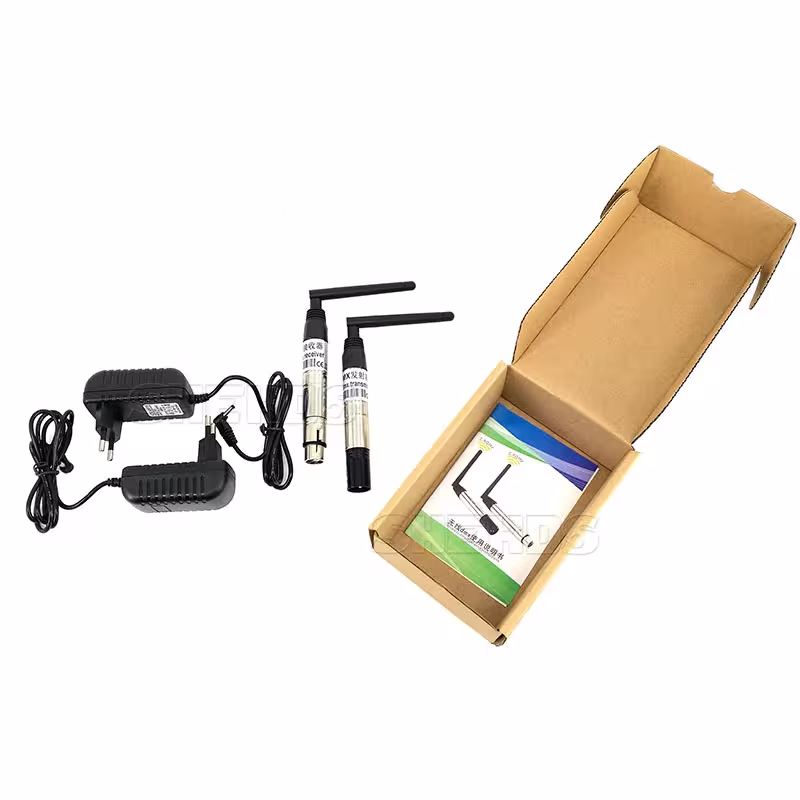

SHEHDS DMX Wireless Receiver and Transmitter 2.4G for Stage Lighting

The DMX wireless remote and receiver is a professional equipment for controlling stage lighting, DJ lights and disk balls. This 2.4G-off device transmits standard DMX512 protocol signal without delay, providing real-time and reliable communication. If you are looking for a powerful solution for stage lighting, this SHEHDS model offers a 300-metre communication distance and 126 automatic channel frequency dances. Professionals and DJ already trust these technologies in their preparations.

DMX Wireless Upload and Receiver - main features

• 2.4G ISM frequency with 126 automatic channels - Continuous frequency shock provides high resistance to interference and reliable signal transmission even in busy frequency bands suitable for professional events.
• Real-time signal transmission - There is no delayed connection between the panel and the devices, so the light changes synchronously with music and stage actions, providing excellent control.
• 7 ID codes - You can simultaneously use seven separate wireless network groups in the same area of the ground without interference, ideal for larger products.
• Three-colour LED indicators - Clear radiation indicators show communication status, frequency and ID settings, leading to rapid diagnosis and problem solving.
• A fairly entertaining distance of 300 meters - The connection remains strong, suitable for controlling large halls, squares and outdoor events.
• Low weight and compact form - Only 180-gram weighing device for easy pairs of you, during installation this does not require a large system complexity.
• Low energy consumption - Works from 5V source only 500mA minimum, making it economical to use constantly and often.

Technical specifications

• Connection type: 2.4G wireless DMX512 receiver and transmitter
• Frequency Dance Channels: 126 automatic channels
• ID code groups: 7 separately identified codes
• Communication distance: 300 meters (visible line)
• Frequency range: 2.4G ISM section
• Maximum transfer power: 20dBm
• Power supply: 5VDC 500mA minimum
• Net weight: 180 grams

Who is it suitable for and how to use it?

DMX wireless remote and receiver ideal for DJ, stage lighting engineers, theaters and event organizers. The use is simple: first turn on the receiver plate, then the transmitter plate. Press the button to set the same ID for both devices. If you need multiple wireless systems in the same window, just use different ID codes. This device provides professional level stage lighting with stable signal.

Buyer questions

Q: Is this DMX wireless download and receiver connected to my console?
Yes, it is sending standard DMX512 protocol, so it is compatible with any modern console that pairs DMX512. If you have an older console, please check its specifications.

Kl: What is the maximum distance in which the connection is running without interference?
The official communication distance is 300 metres on a visible line. Metal walls and other barriers can reduce the distance, but 126 channels automatic frequency shock reduces interference even if other 2.4G devices are nearby.

Q: Does this device require calibration before use?
No, the device is ready for work from the box. You just need to set the same ID code for the receiver and the transmitter, then the connection should work immediately. LED indicators will help confirm a successful connection setting.

The SHEHDS DMX wireless download and receiver is a reliable and efficient solution for any stage lighting. Whether you organize discotheque evening, theatre premiere or concert, this device will provide professional management from the distance. TopSmart store offers fast delivery and warranty for this high quality product.
