Smart Motion Sensor Staircase LED Strip Controller 10-40 Steps COB

Intelligent motion sensor for stairs with LED tape controller is a modern automatic lighting system for stairs, corridors and other spaces. This system uses two PIR sensors that automatically turn on LED lighting when they record people's movements. A smart motion sensor allows the stairs to reduce energy consumption, because light works only when necessary. The system is compatible with stairs of 10, 20, 32 or 40 steps and is easy to install. This controller is the ideal solution for both private homes and public buildings.

Characteristics and advantages of smart motion sensor for stairs

• Two PIR sensors on both sides - The intelligent motion sensor for the stairs has two high-quality PIR sensors, which are mounted at the beginning and end of the stairs. They provide a reliable human detection system on both sides, so light turns on regardless of the direction of use of the stairs. Sensors may be mounted on the surface or deepened into walls (15 mm diameter only).
• 10 to 40 steps - The controller operates with different sizes of stairs: 10, 20, 32 or 40 steps. The intelligent motion sensor for the stairs automatically adapts the configuration of the stairs through simple settings. This universal regulation means that a single system can be used in several different objects without the need to change apparatus.
• Single control line simplifies electrical installation - One main cable connects all the LED bands, making it unnecessary for a complicated electrical installation. This significantly saves installation time and reduces the risk of errors during installation. Professionals and beginners can easily install this system without special knowledge.
• COB LED technology with high brightness - The intelligent motion sensor uses modern COB (Chip- On- Board) LED technology for the stairs, which provides smooth, high-level lighting without shadows. COB bands are compact, sustainable and long-lasting, and their size is sufficient even for a well-lit day.

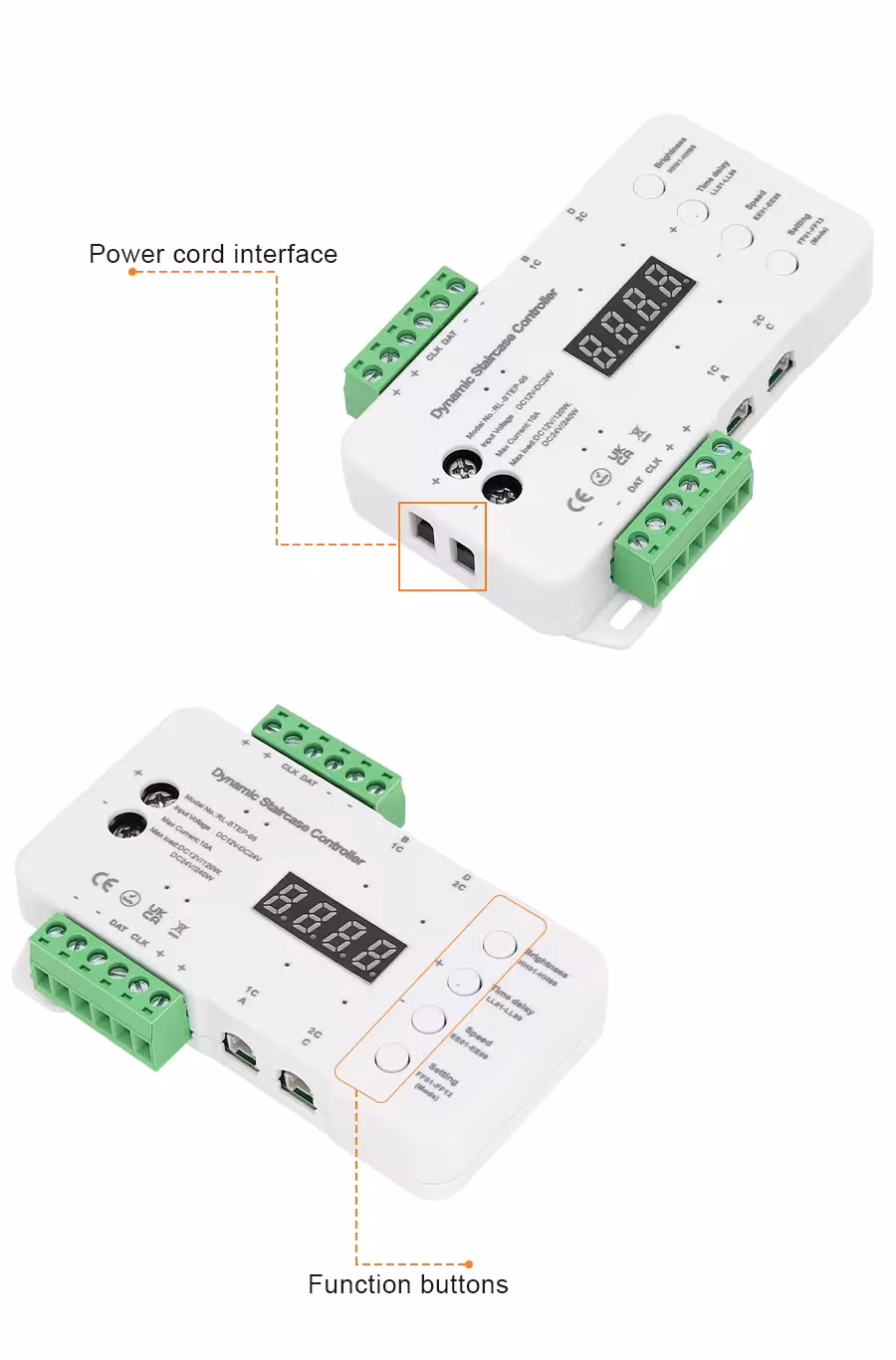

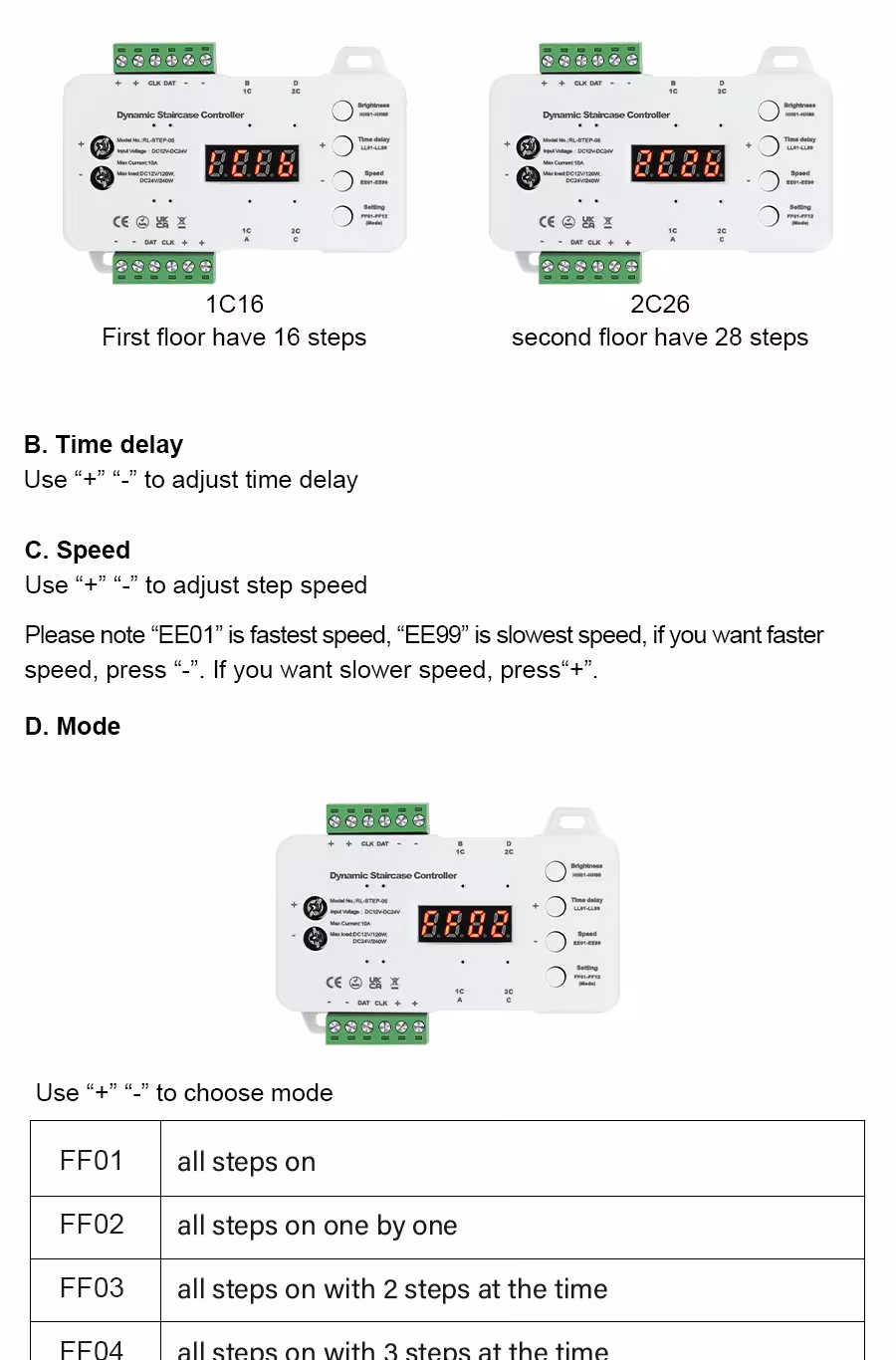

• Variable luminous rate and unlimited light-sharing possibilities - Fast installation without damage to the surface allows you to control the brightness of the LED tape and the speed of light opening from the controller. 12 different regimes provide a wealth of choices for various situations. You can choose the desired light effect according to your needs - from light to full brightness.

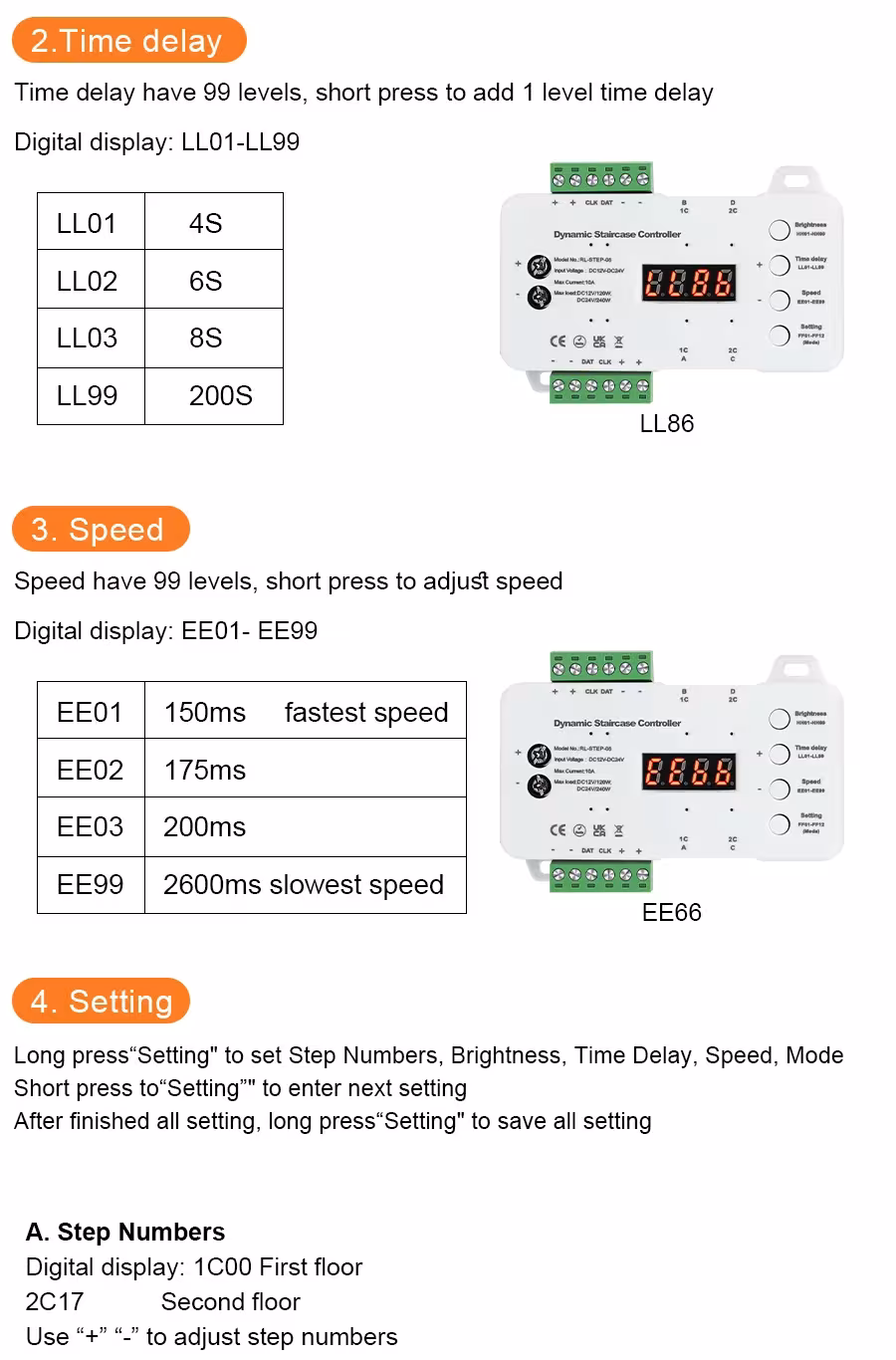

• Automatic deferment to enable and disable - The controller allows you to adjust the delay between the moment when the sensor is switched on and the switch off the light. This means that the light remains on for the required time to ensure safety and comfort. The delay time can be set according to the needs of use.
• Low voltage DC 12V or DC 24V with security features - The controller operates with optional DC 12V or DC 24V low voltage and not with dangerous 220V electricity. This provides protection and is in line with safety standards. The maximum current is 10A and the total power is up to 240W (DC12V - 120W, DC24V - 240W), allowing the system to control large LED bands without problems.
• Fast and simple installation without complications - A complete set includes all the necessary components: controller, LED tape, sensors, cables, power supply and installation tools. The instructions are clear, so the installation will last only a few hours. Unnecessary electrical services - user can install everything.

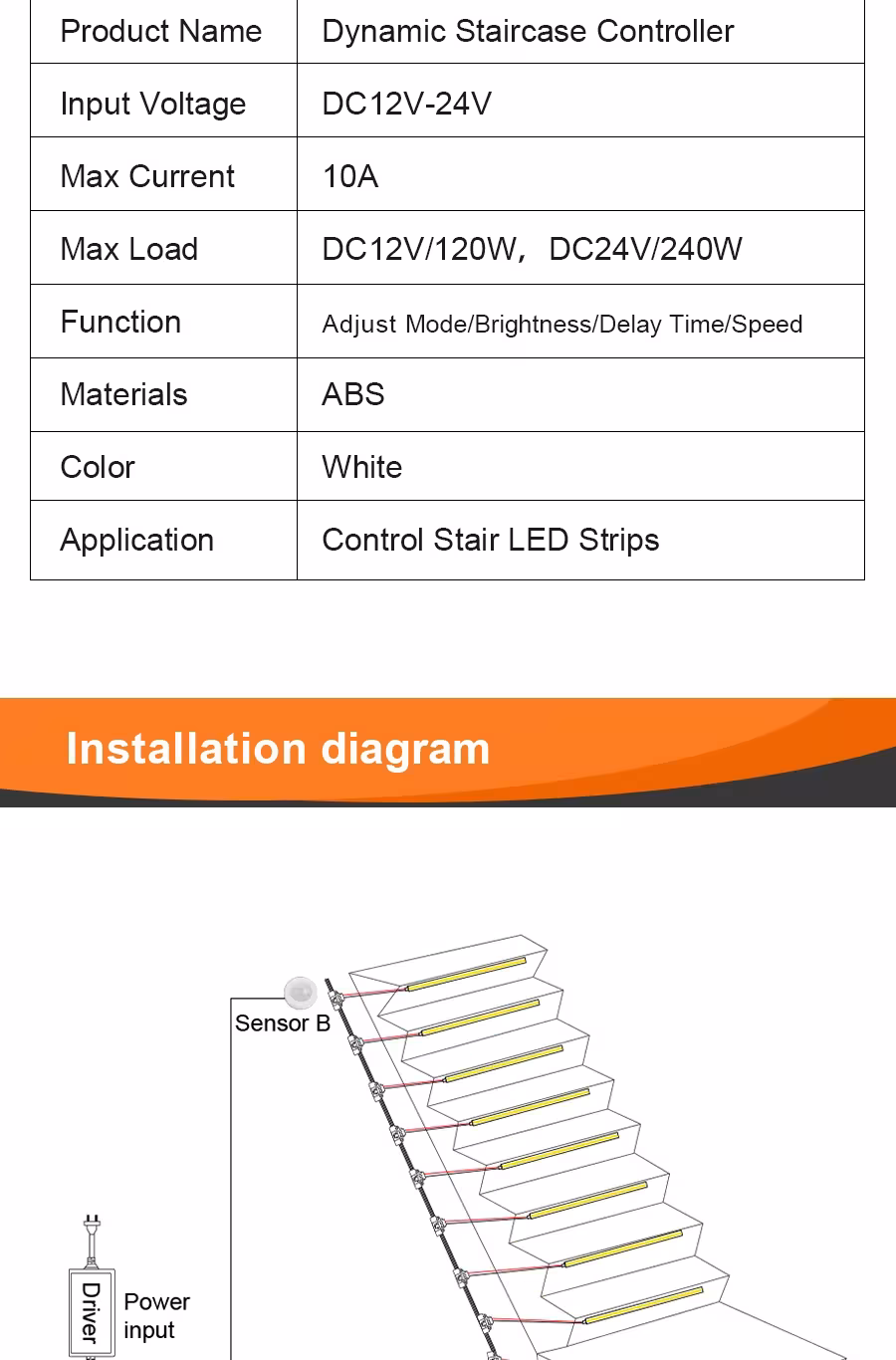

Technical specifications

• Voltage: DC 12V or DC 24V (source choice)
• Maximum current: 10A through channel
• Total maximum power: up to 240W (DC12V - 120W; DC24V - 240W)
• LED tape power: less than 15W per staircase, total less than 240W

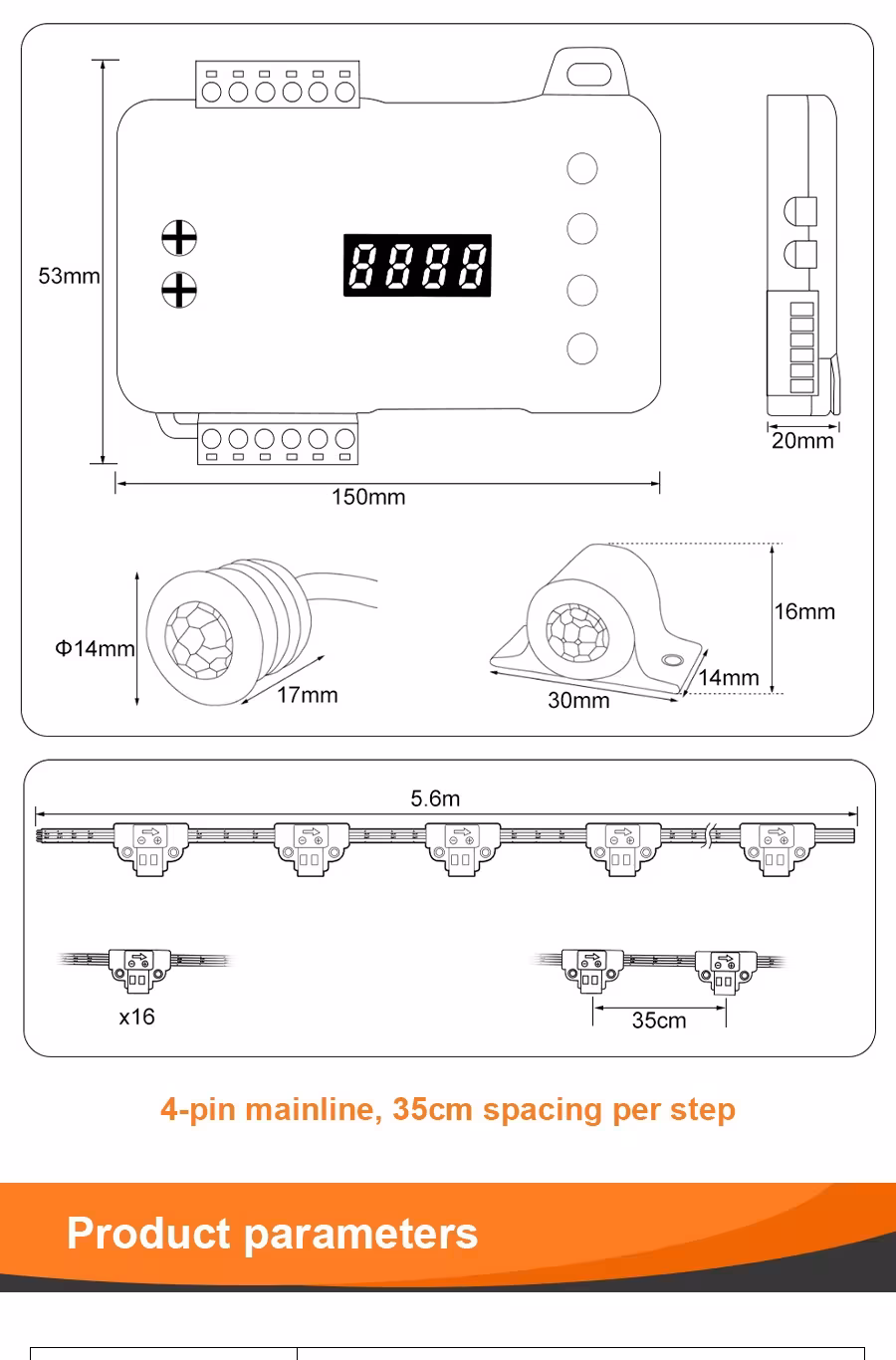

• PIR sensors: 2 high quality PIR sensors with fixed or deepened installation (15 mm diameter)
• Compatibility: From 10 to 40 steps (with a basic 4PIN cable it is possible to control up to 99 steps)

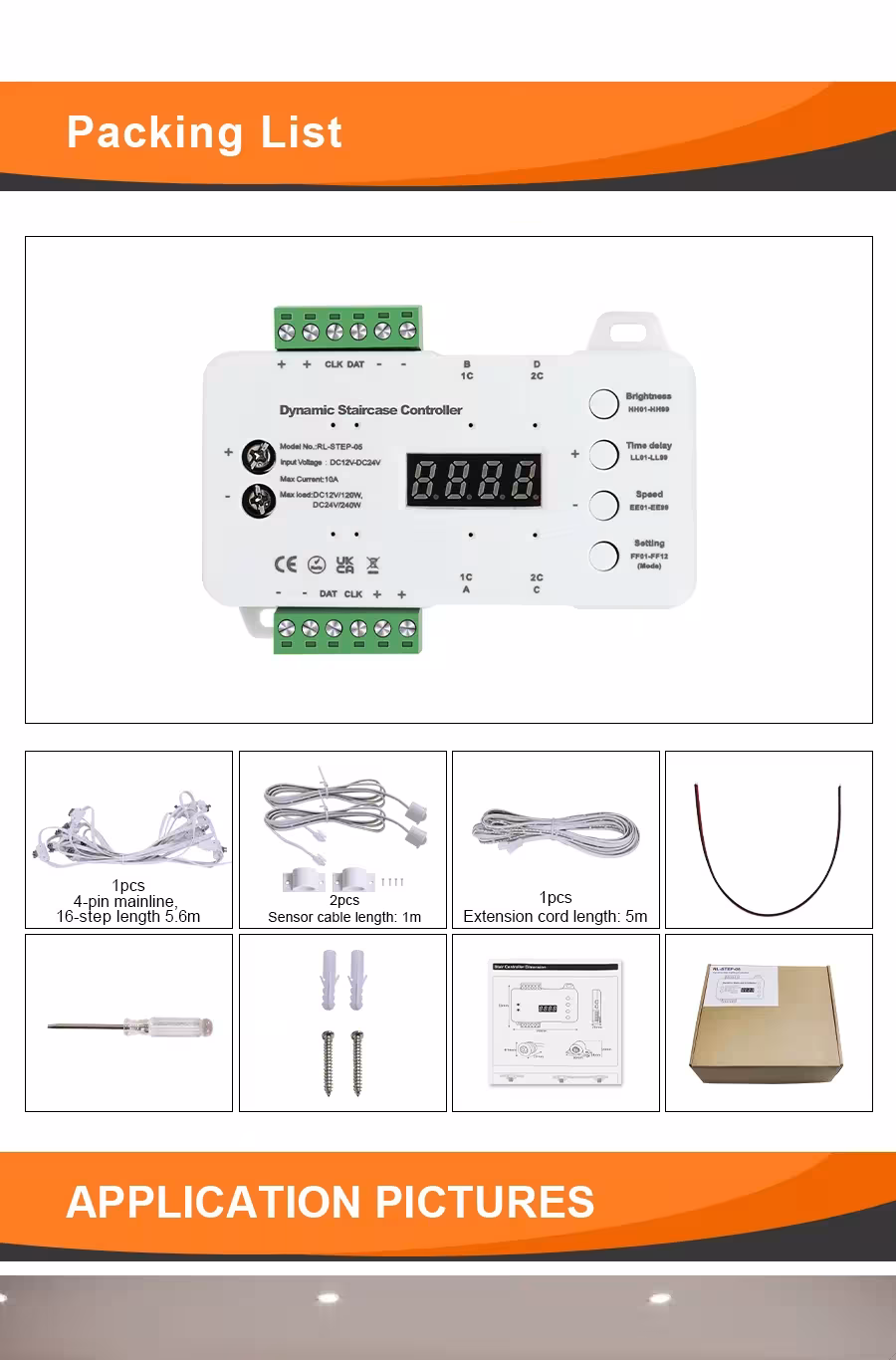

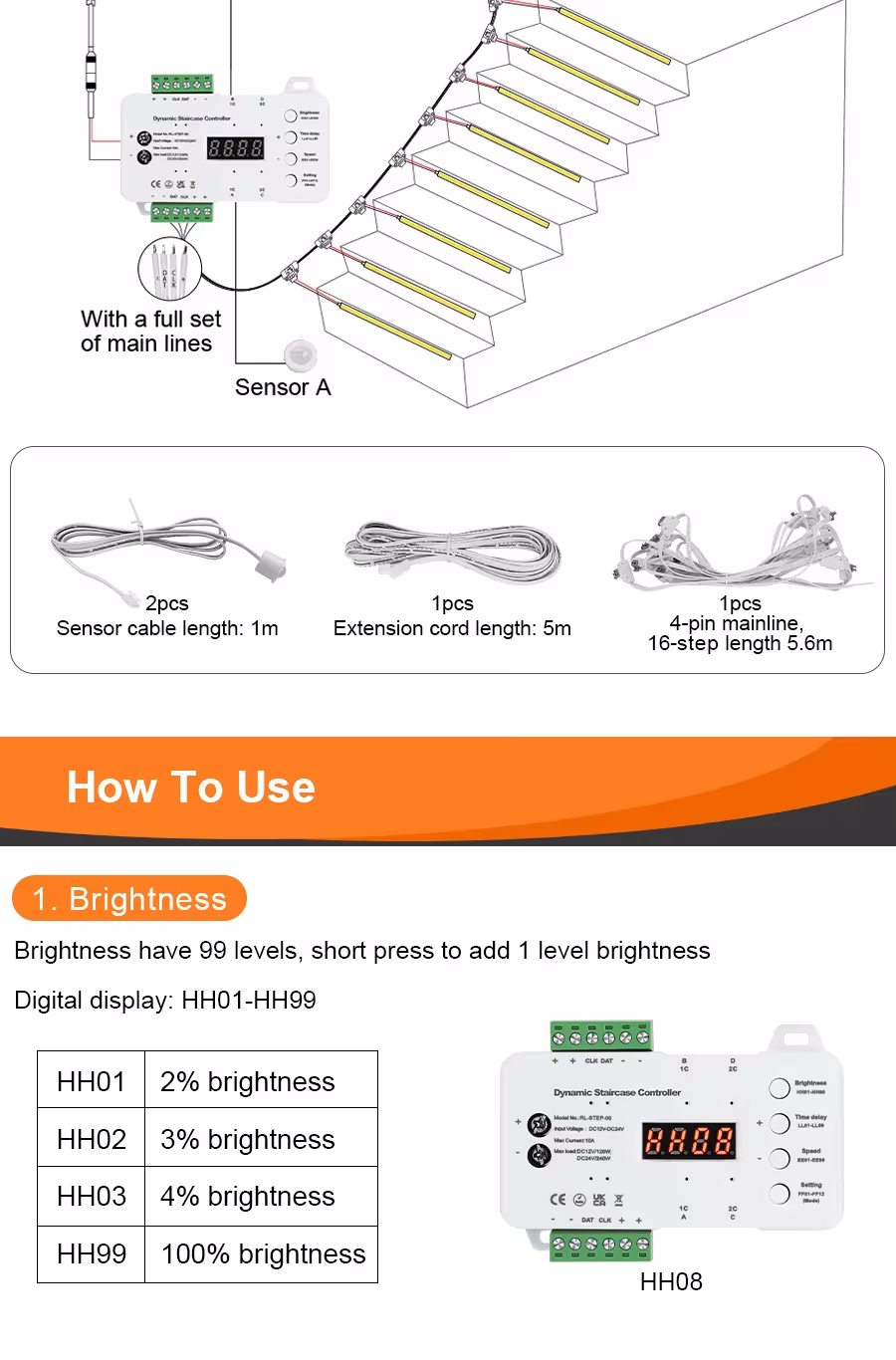

The package contains

• 1x Control controller
• 1x Main Electric Line (cable)
• 1 batch 1m COB LED tapes
• 1x Power supply (without plug)
• 2x PIR sensors (1 meter cable length)
• 1x Sensor Extension Cable
• 1 batch of tools and accessories

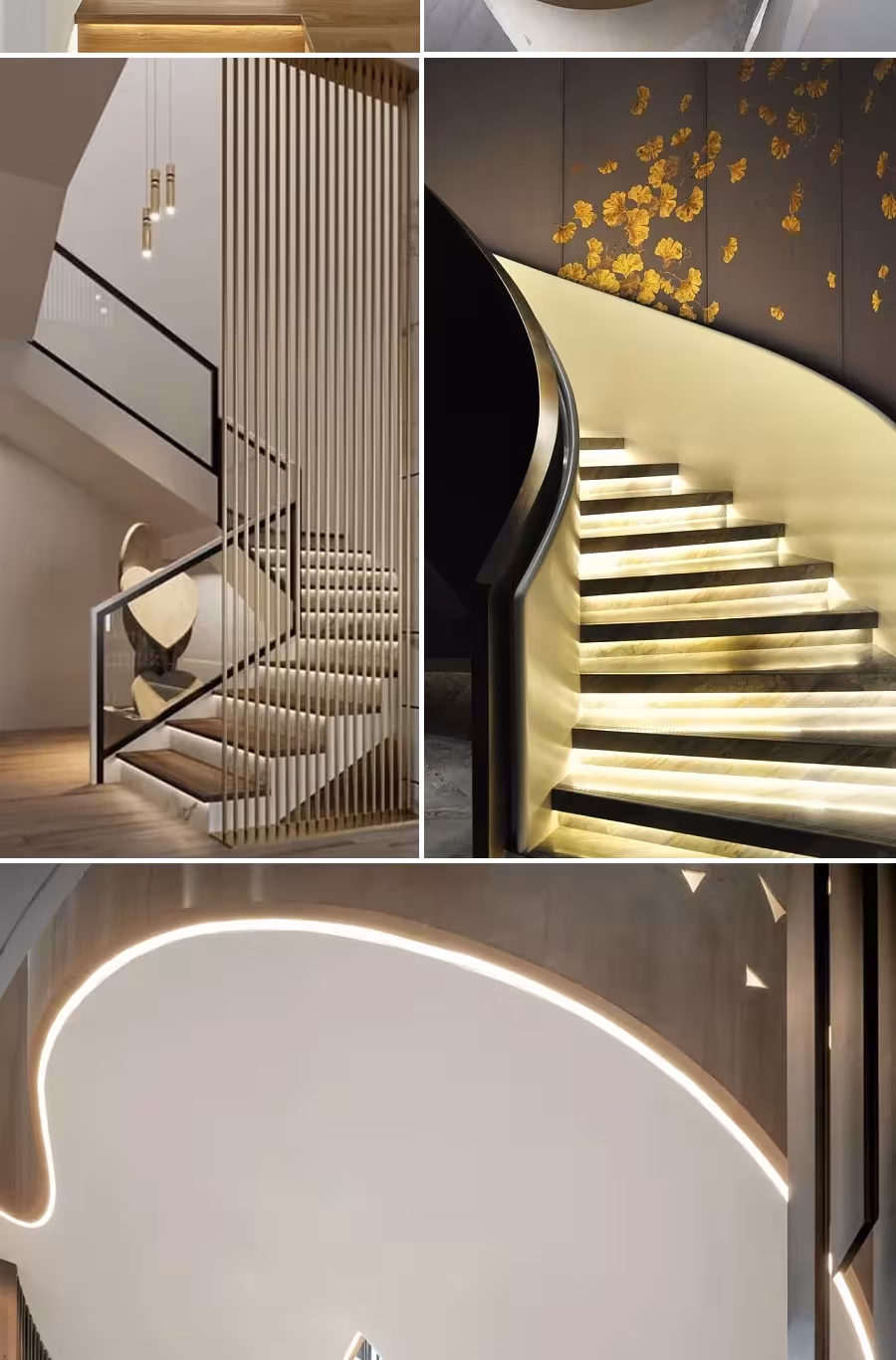

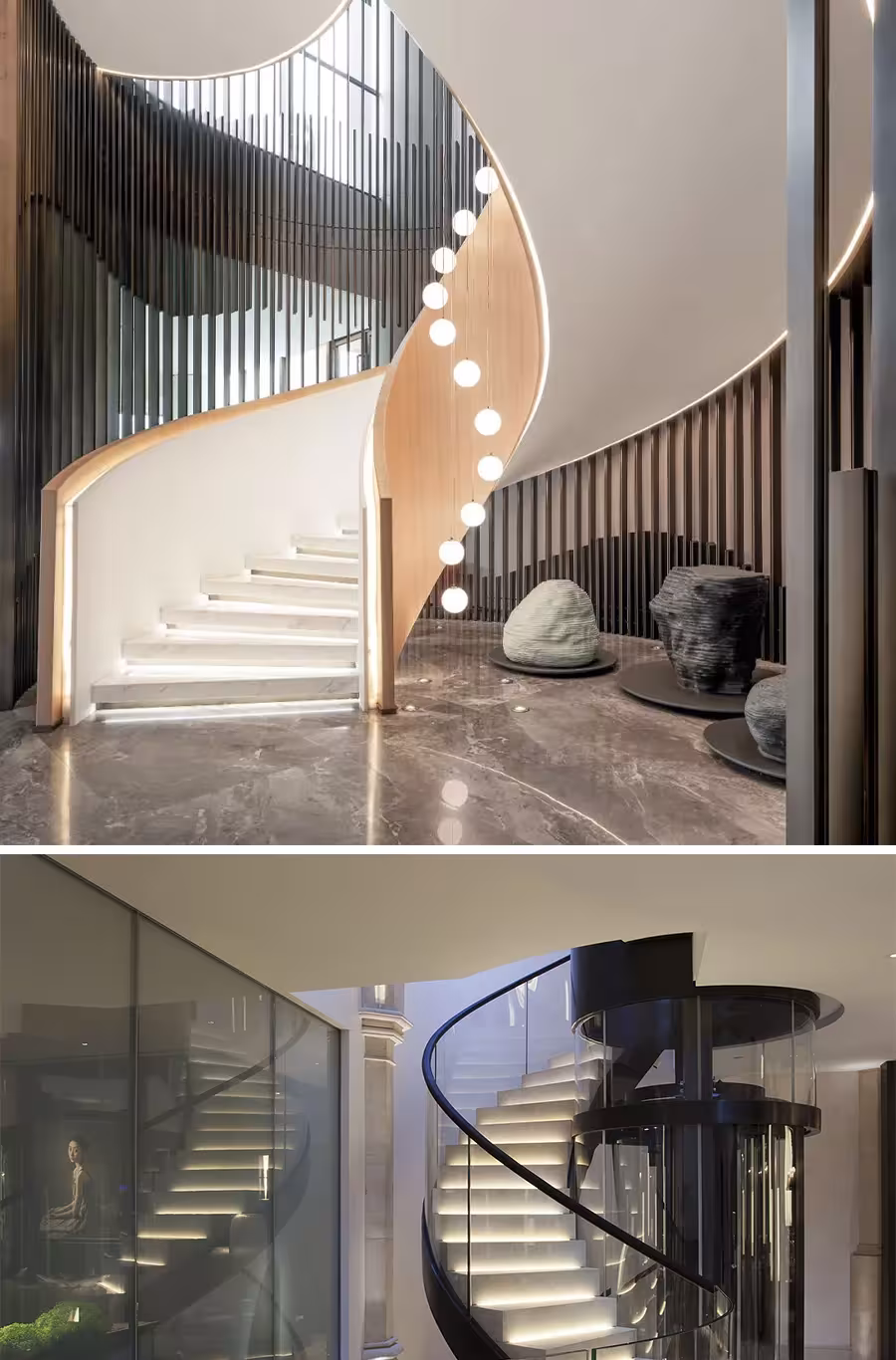

Use of smart motion sensor for stairs and implementation scenarios

The intelligent motion sensor is ideal for private houses, office buildings, public staircases, shops and other commercial areas. The system is useful for unlit stairs, kitchens and corridors, where reliable lighting is required. Intelligent motion sensor for stairs is the ideal choice for energy saving - light works only when necessary. When you install the system, you need to install sensitivities at the beginning and end of the stairs if you want the light to turn on from both sides. The controller shall be mounted inside and the LED bands shall be located on or below the surface of the staircase. There are no problems with installation due to unnecessary electrical operations.

Why choose this product?

Intelligent motion sensor for stairs is a practical and useful solution that saves energy, increases home safety and comfort. The system has been running since the first connection without complex configurations. Long-term COB LED technology guarantees a long-term smooth operation. The intelligent motion sensor for the staircase is resistant to operation and non-breakable - the robust components have been able to withstand daily operation evenly. From a price point of view, this is an excellent investment in home lighting - the system is likely to be absorbed by electricity saving and zero damage to surfaces.

Frequently asked questions

Question 1: How many steps can this system control?
A smart motion sensor can control up to 40 steps in a standard configuration. However, using the main 4PIN cable, the system can run up to 99 steps. This depends on the widget settings and the configuration of the LED bar. If you have more than 40 steps, we recommend consulting with the manufacturer or TechSupport for additional settings.

Question 2: Is the smart motion sensor for the stairs impermeable to water?
No, this model is not water-permeable and can be used in wet environments such as bodies or swimming pools. The system is only suitable for stairs and internal corridors. If your stairs are on the outside or you plan to use the system in a very damp environment, demand a protective box or special waterproof cover. Instructions for safe use are given in the instructions.

Question 3: What is the power supply and whether a transformer is needed?
The intelligent motion sensor for the stairs operates DC 12V or DC 24V at low voltage and cannot be directly connected to 220V power, as this will damage the controller. The package includes a power supply without a plug - you have to get a suitable transformer or use a source with your country plug. DC 12V version requires 120W transformer and DC 24V version up to 240W. When the system is purchased, check your country's electrical voltage and select the right transformer.
