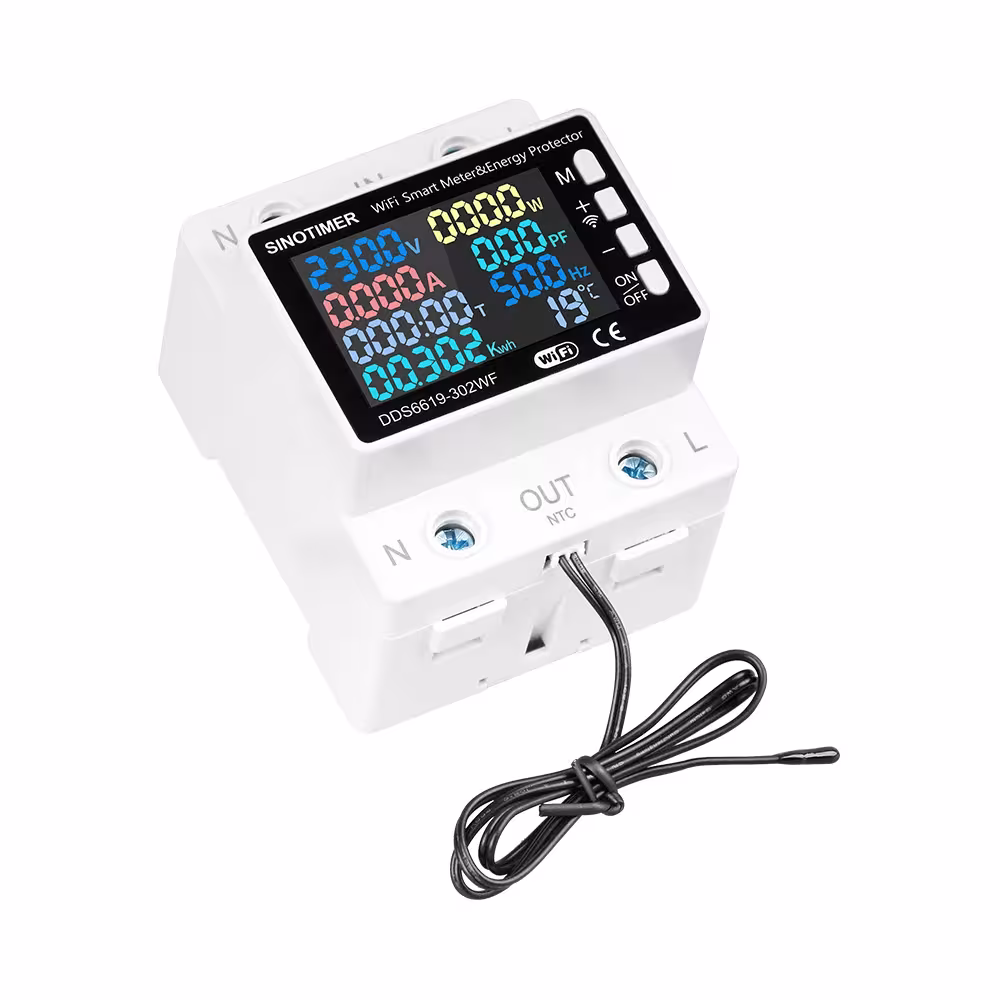

Smart WiFi Energy Meter 63A Circuit Breaker with Temperature Control

Smart WiFi Energy Meter 63A is a modern device for monitoring and managing domestic and business electricity consumption. This counter allows you to control the use of electricity from any point via your smartphone using Tuya WiFi technology. The intelligent WiFi energy meter 63A has eight integrated measurement functions: voltage, current, power, time, energy, temperature, frequency and power factor. This allows users to understand and visualize their electricity consumption accurately. The device is normally mounted on a standard DIN rail, without screws, using locking presses.

Characteristics and Benefits of the Smart WiFi Energy Meter 63A

• 8 functions per device - The intelligent WiFi energy meter 63A measures voltage, current, power, time, energy, temperature, frequency and power factor. This provides detailed information on electricity consumption, allowing optimisation of energy consumption and reducing bills. All data is displayed on a very clear high resolution screen.

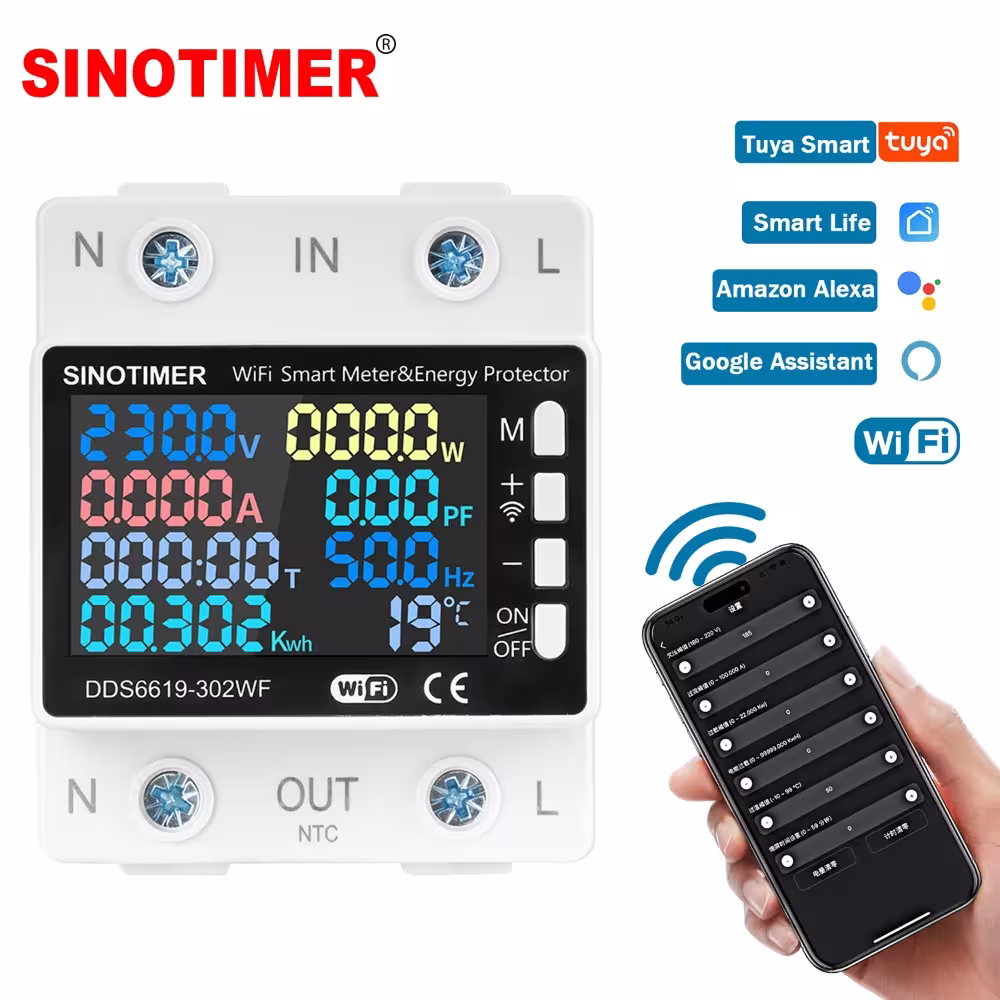

• WiFi remote control - Control the smart WiFi power meter 63A from any point in the world through the smartphone. Tuya app gives unlimited distance to control and monitor. You can immediately switch off the circuit if necessary, which prevents unwanted use of energy.
• • Path protection against overload - The intelligent WiFi energy counter 63A has integrated pedal protection to ensure safety. When the current exceeds limit 63A, the device automatically switches off the circuit to prevent the risk of fire and electric shock. This is an essential security element for the home and business premises.
• Temperature monitoring - Monitoring function monitors temperature from 20 to 150 ° C to prevent overheating. If the temperature exceeds safe limits, the system may automatically signal or stop the operation by protecting the equipment against damage.
• Simple DIN rail installation - Optional bolts - device shall be mounted using special locking clamps. This accelerates the installation process and reduces the installation estimate. Suitable for household, commercial and hotel electric shields.
• Low power consumption resistance - The smart WiFi power meter 63A consumes minimal energy without transferring your electricity account. This means that the meter quickly pays out through the energy economy it helps to achieve through correct electricity monitoring.
• High measurement accuracy - The data is accurate and reliable with a large resolution screen. The intelligent WiFi energy counter 63A shows real-time energy consumption, helping to identify energy eutrophication and non-economical equipment operations.
• Maintaining your memory from electrical failure - Even if the power breaks, all values of your data and parameters are saved. The intelligent WiFi power meter 63A automatically straightens when electricity returns without losing any information.

Technical specifications

• Model: DDS6619-302WF (with WiFi and off) or DSDS6619-302 (without WiFi)
• Rated voltage: 220V AC, measuring range 170-270V
• Current measurement: 0-63A maximum current
• Power measurement: 0-17KW
• Energy measurement: 0-9999KWH
• Temperature monitoring: Range 20-150 ° C
• Material: ABS + PC supports resistant to abrasion and chemicals
• Frequency: 50-60Hz compatible with European standards
• Protection: Power supply
• WiFi function: Available only in DDS6619-302WF model with Tuya app
• Storage: The data is stored even when electricity is broken (DDS6619-302WF model)
• Installation: DIN rail, redundant screws, high speed clamping

The package contains

• 1 × Smart WiFi energy meter 63A
• 1 × User manual and installation instructions

For whom the smart WiFi energy meter 63A is suitable and how to use

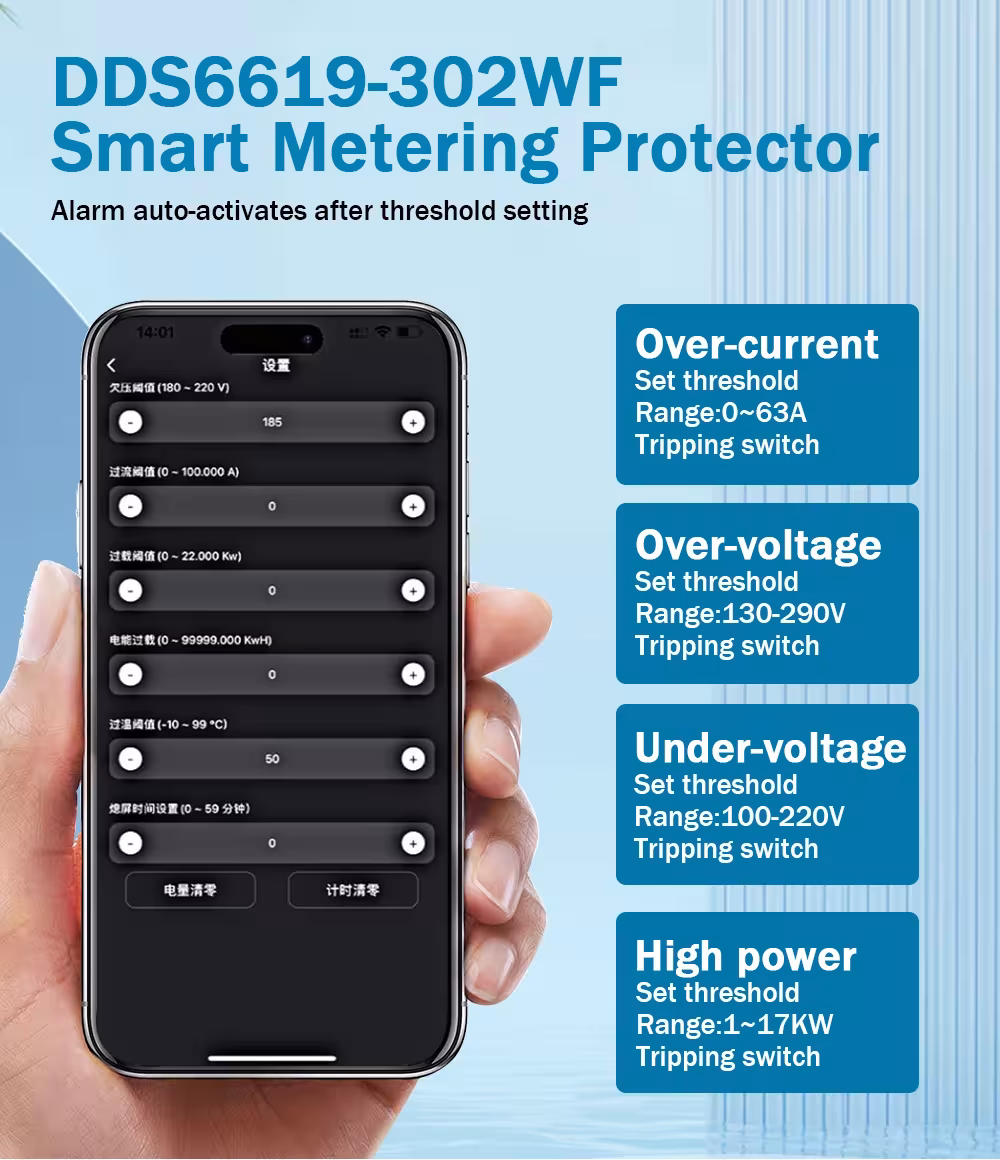

The intelligent WiFi energy meter 63A is ideal for private homes, small business premises, retail shops, hotels and administrative buildings. Install the counter in the electrical panel, connect to WiFi via the Tuya app and start monitoring power consumption in real time. The smart WiFi energy counter 63A helps to identify energy - fast-consuming recording such as heating systems or air conditioners. You can set automatic alarmo limits and receive notifications on your phone when consumption exceeds the set limit.

Why choose this product?

By choosing this smart WiFi power meter 63A, you invest in fast energy savings and security improvements. This counter gives full insight into your electricity usage, allowing you to manage costs efficiently. The intelligent WiFi energy counter 63A has several security layers - congestion protection, low and high voltage protection - ensuring durability and safety. Your family or business will be protected from electricity insecurity and you will save several hundred euros a year, reducing the irrational waste of energy.

Frequently asked questions

Question 1: Is the smart WiFi energy meter 63A suitable for rented housing?
Yes, the smart WiFi power meter 63A is versatile and suitable for rental rooms. However, it is advisable to meet the owner or tenant's management team before installation, as this may require permission. The meter is mounted on the electrical panel, so no major modern changes are needed.

Question 2: What is the maximum current that the smart WiFi energy meter 63A can control?
The maximum current is 63 amperes. This is the standard size of Europe's home and small business premises. If your electrical system requires more than 63A, you should consider more powerful models or consult licensed electricians, as this may require system modernisation.

Question 3: Does the warranty include WiFi functionality and security management?
Yes, the standard warranty includes all components including WiFi module and security features. If the device does not work according to the specifications, you are entitled to repair or replacement. However, the guarantee shall not cover loss of damage caused by an electrical hazard if the device has not been used according to instructions or is installed irregularly.
