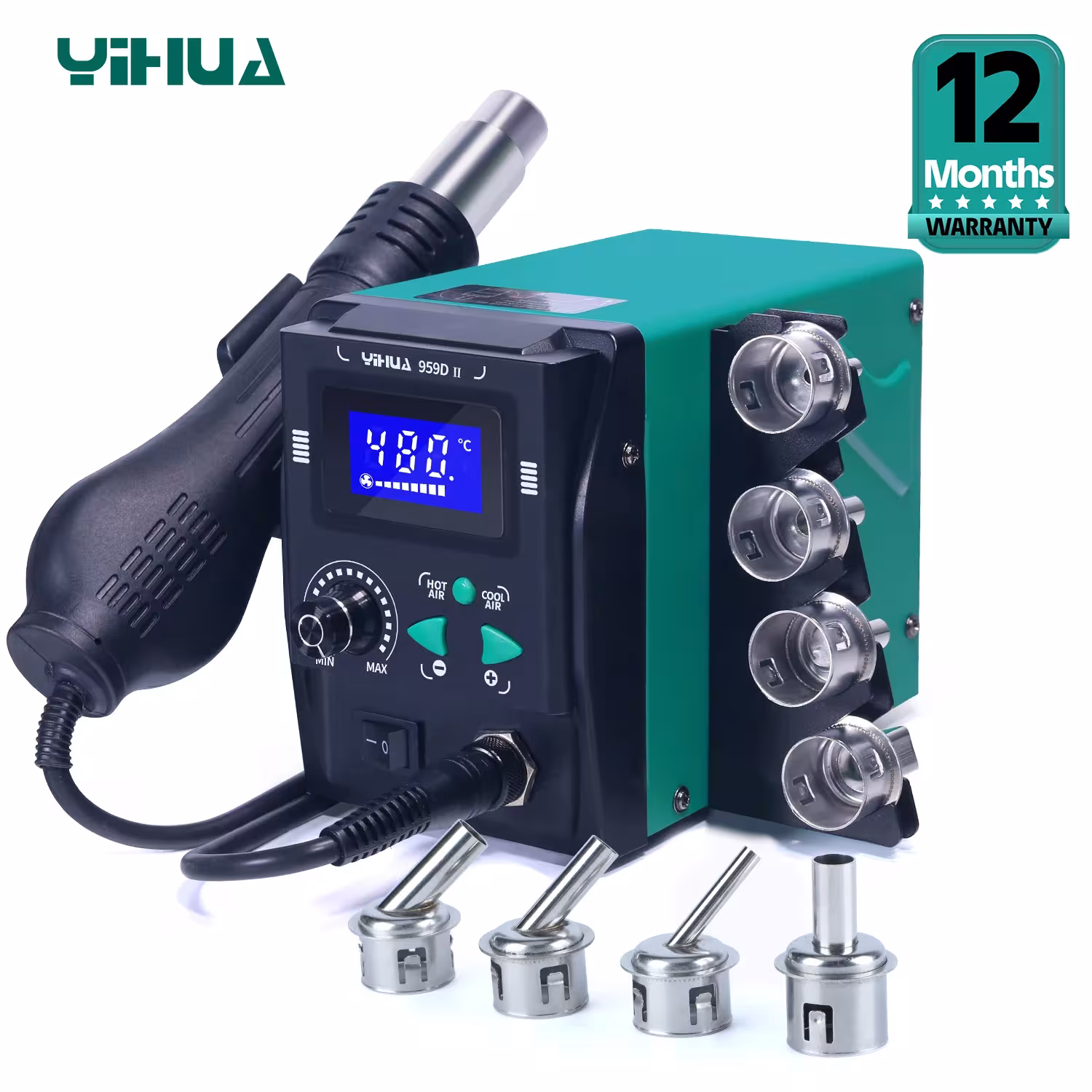

YIHUA 959D-II 700W hot air gun soldering station for telephone repair
YIHUA 959D-II It is a professional hot air gun of 700W designed for electronic repair, soldering and consideration. This compact device is an ideal tool for both beginners and professional technology. The hot air gun for soldering is equipped with innovative simple landing nozzles without screws, modern safety mechanisms and reliable 700W power. If you are looking for a reliable solution for telephone and electronics repair, YIHUA 959D-II is a great choice.
Hot air gun for soldering - main features

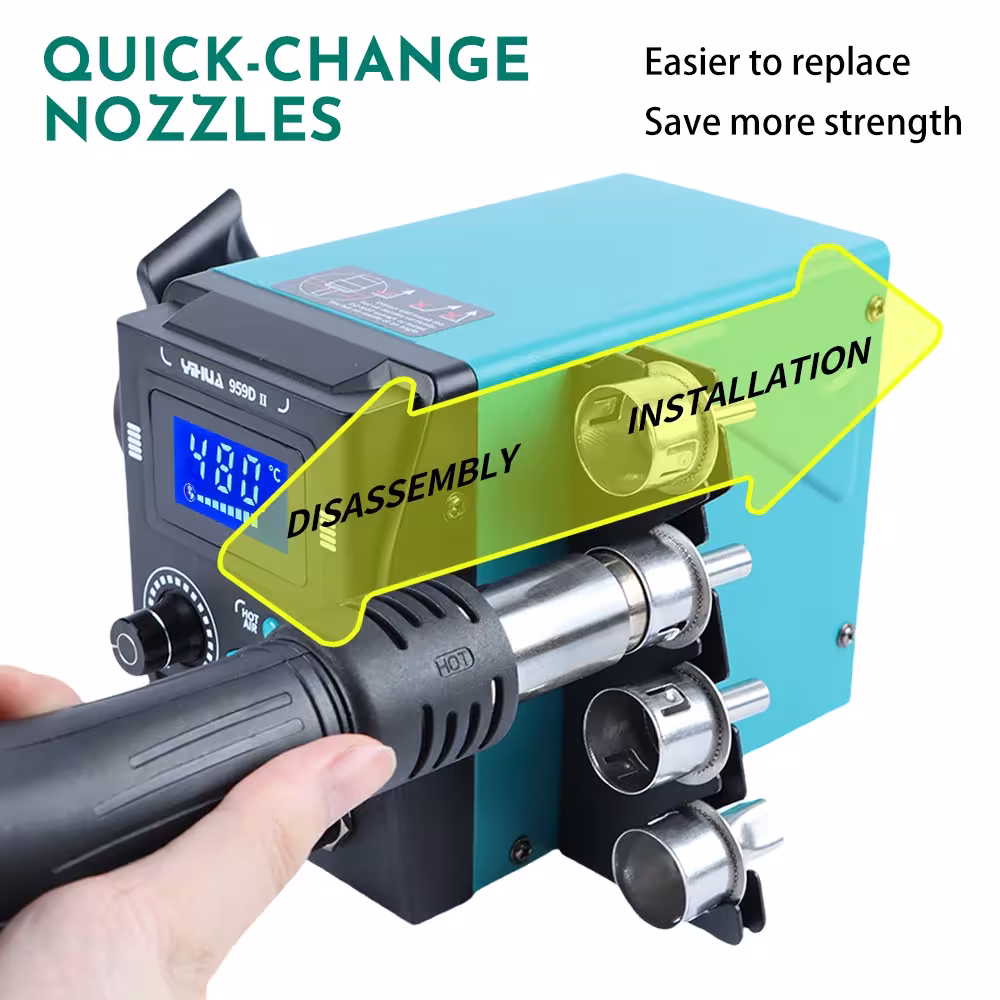

- Simple nozzle replacement - No screws or chilling. To replace the nozzle with a hot air gun for soldering, just pull and remove it. This saves valuable time and makes work more efficient.

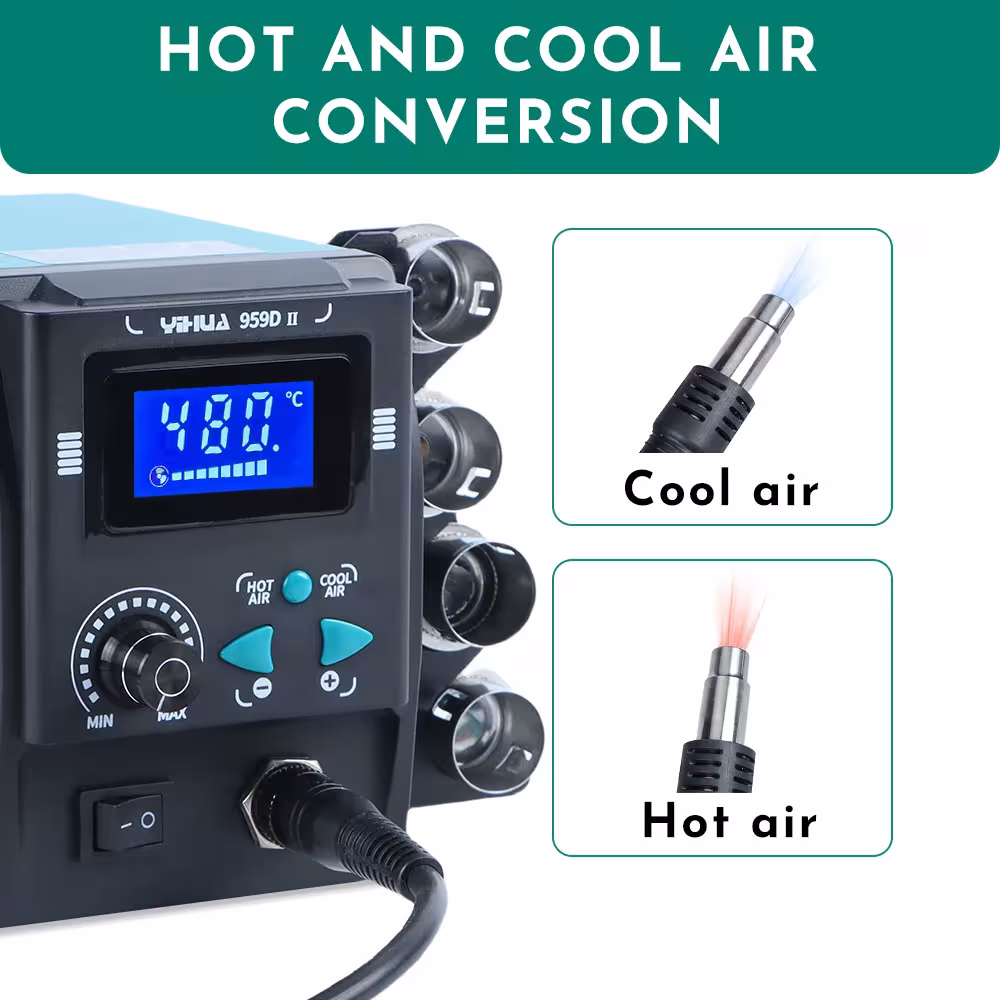

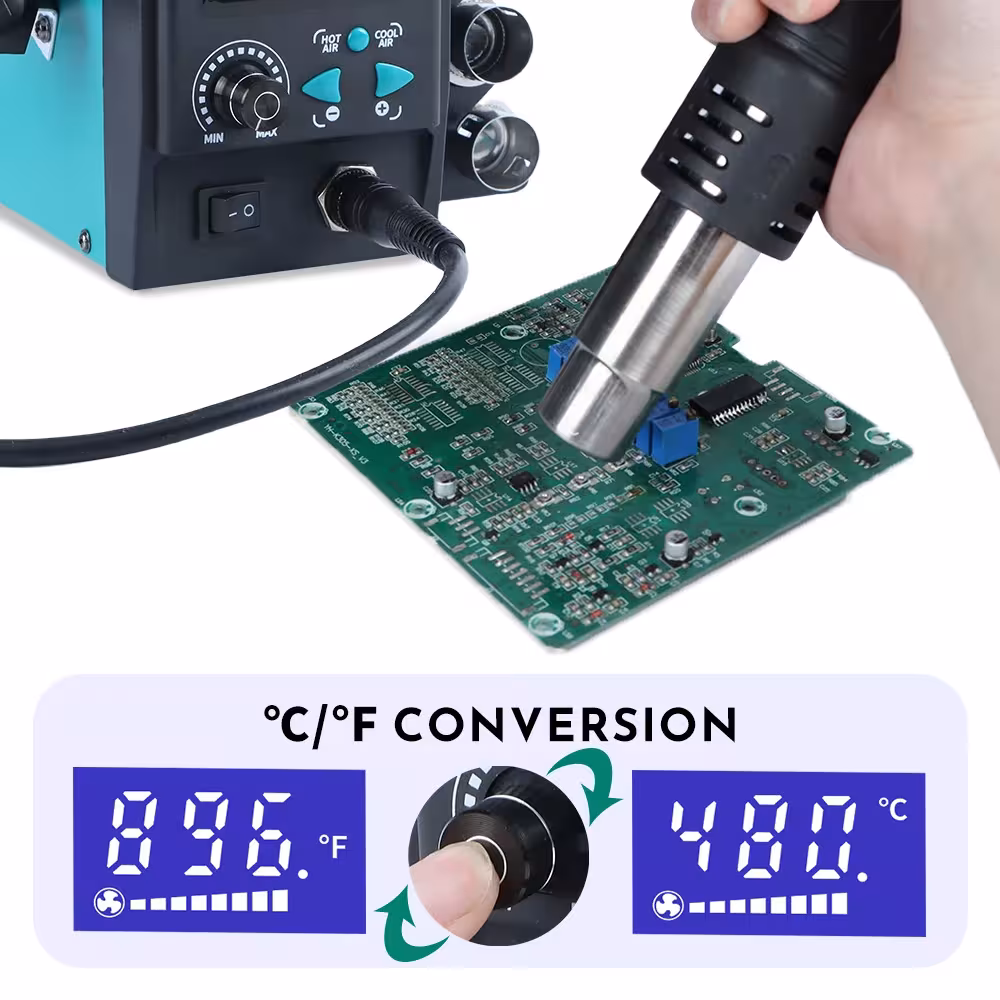

- 700W power and close temperature — The temperature range from 100°C to 480°C allows you to perform any soldering and heat application tasks with precise control via the LED display.
- Brush fan with equivalent air supply - Up to 120 L / min air volume guarantees even heat and efficient soldering. There's no vibrations or discontinuity.
- Smart stand with cooling - The device automatically stops in thermal mode when placed in a timer. This prevents unwanted heat losses and reduces energy consumption.
- Security functions and fire prevention - YIHUA property damage protection mechanism reduces fire risk and increases work safety. You can use it calmly and without fear.
- Compact and portable size - Dimensions L170 × W95 × H130 mm with a small mass. Perfect for table, workshop or mobile conditions.
- Universal 110V and 220V power supply - Works with 110V-127V (60Hz) and 220V-240V (50Hz), therefore suitable for worldwide use.
Technical specifications
- Model: YIHUA 959D-II
- Rated power: 700W
- Temperature range: 100 ° C to 480 ° C (212 ° F-896 ° F)
- Air volume: ≤ 120 L / min
- Fan type: Brush with equivalent air supply
- Display: LED temperature display
- Main drive dimensions: L170 × W95 × H130 mm (± 5 mm)
- Operating ambient temperature: 0 ° C -40 ° C (32 ° F-104 ° F)
- Power variants: 60Hz (110V-127V) or 50Hz (220V-240V)
Who is it suitable for and how to use it?
Hot air gun for soldering YIHUA 959D-II is the ideal solution for mobile phone repair, electronics, micro-soldering and consideration. Both professional technology and hobbies are used and make yourself enthusiasts. First set the desired temperature on the LED screen, let the device warm for 30 seconds, then start working. As the nozzles change without bolts, you can quickly adapt to different types of repairs. The hot air gun for soldering works reliably even during intense working conditions.
Buyer questions
Q: Is the hot air gun suitable for SMD components?
Yes, YIHUA 959D-II is perfect for SMD (surface mounting) components. The temperature range from 100 ° C to 480 ° C and the equivalent air supply allows for accurate soldering of small components. The LED display helps to accurately control the temperature for each job.
Kl: What are the nozzle diameter options available?

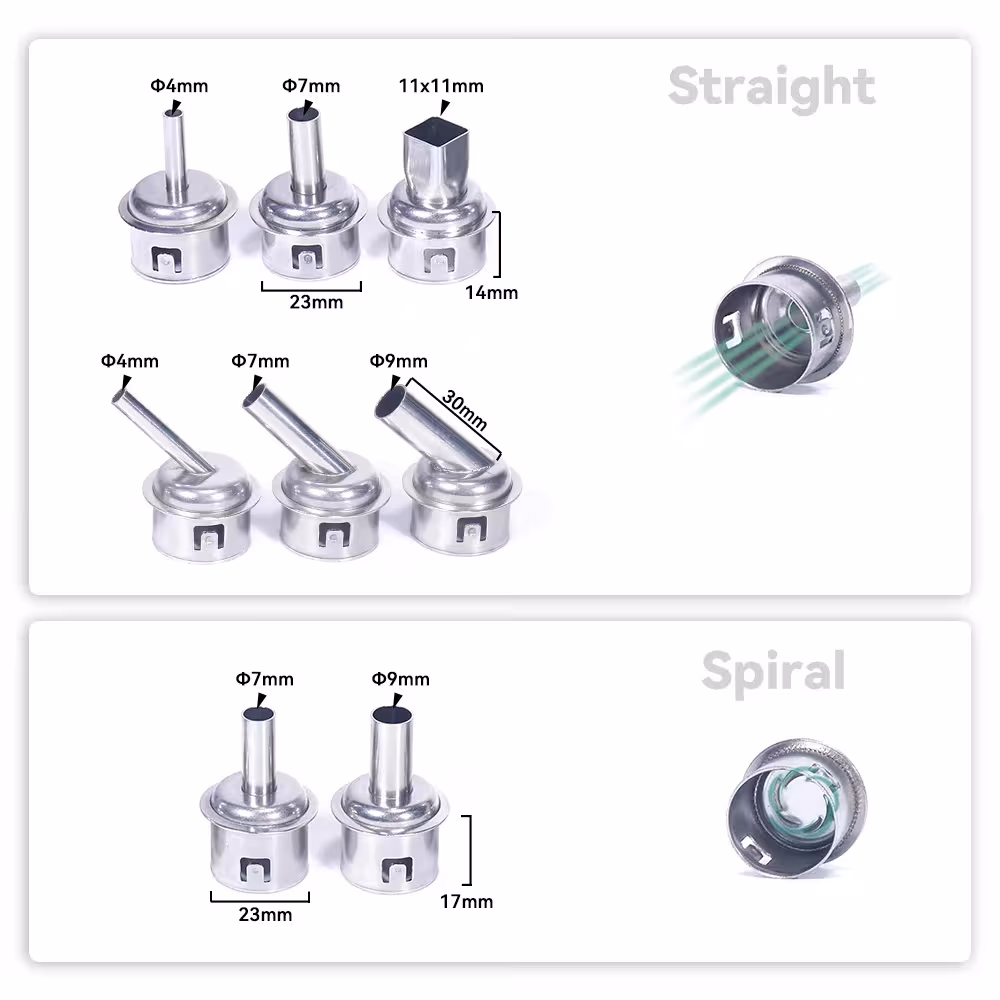

The YIHUA 959D-II set typically includes 4 to 6 different diameters (5 to 25 mm). They change without bolts so you can quickly choose the right nozzle for a specific repair work and quickly connect the work process.
Q: Do you need special care or warranty?
YIHUA products shall last a long time if used in accordance with the instructions. Allow the device to cool for 5-10 minutes after each use. The warranty typically includes manufacturing defects and is valid for 11.2 years depending on the seller.
YIHUA 959D-II hot air gun for soldering is your most reliable partner for electronic repair. Its simple modification of the nozzle, power, safety functions and sufficient power makes it ideal for both beginners and professionals. An investment in this device will return itself through several repairs.
Sources: Soldering - technical principles | TopSmart store
| Weight | 2.200 kg |
|---|---|
| Dimensions | 17 × 13 × 10 cm |
16 review for YIHUA 959D-II 700W karšto oro pistoletas lituojimo stotis telefono remontui
Ceramic tile edge grinding tool for angle grinders
Dust collector for angle grinder 125mm
Double Mini Grinder 21V 60W with Makita battery for metal, tool sharpening, and polishing in the workshop
p * * * –
Question: package1 Voltage: 120VUS. Ships From: Mainland China
a –
The same as the other soldering iron I bought is marking, it seems to have been used by someone, the sticker is scratched right where it says the watts, otherwise the tool is scratched just as described.
Question: package1 Voltage: 220V, ships from Europe From: France
Customer –
Order arrived extremely quickly, item well packaged, as described and authentic.
I recommend
Question: package2 Voltage: 220V, ships from Europe From: France
K***u –
Excellent build quality, accurate and easy to use. I especially like the quick change nozzle system. Smart and simple. An excellent tool for beginners and more advanced users alike with bang for your buck. Highly recommended.
Question: package2 Voltage: 220V, ships from Europe From: France
Customer –
Question: package2 Voltage: 120VUS. Ships From: Mainland China
Customer –
Fast delay
Well packaged and works perfectly as described
Question: package2 Voltage: 220V, ships from Europe From: France
Customer –
I tried this out for fixing some solder joints on a circuit board. the hot air is powerful, and with the variety of nozzles, it did the job perfectly. super easy to use!
Question: package1 Voltage: 120VUS. Ships From: Mainland China
Customer –

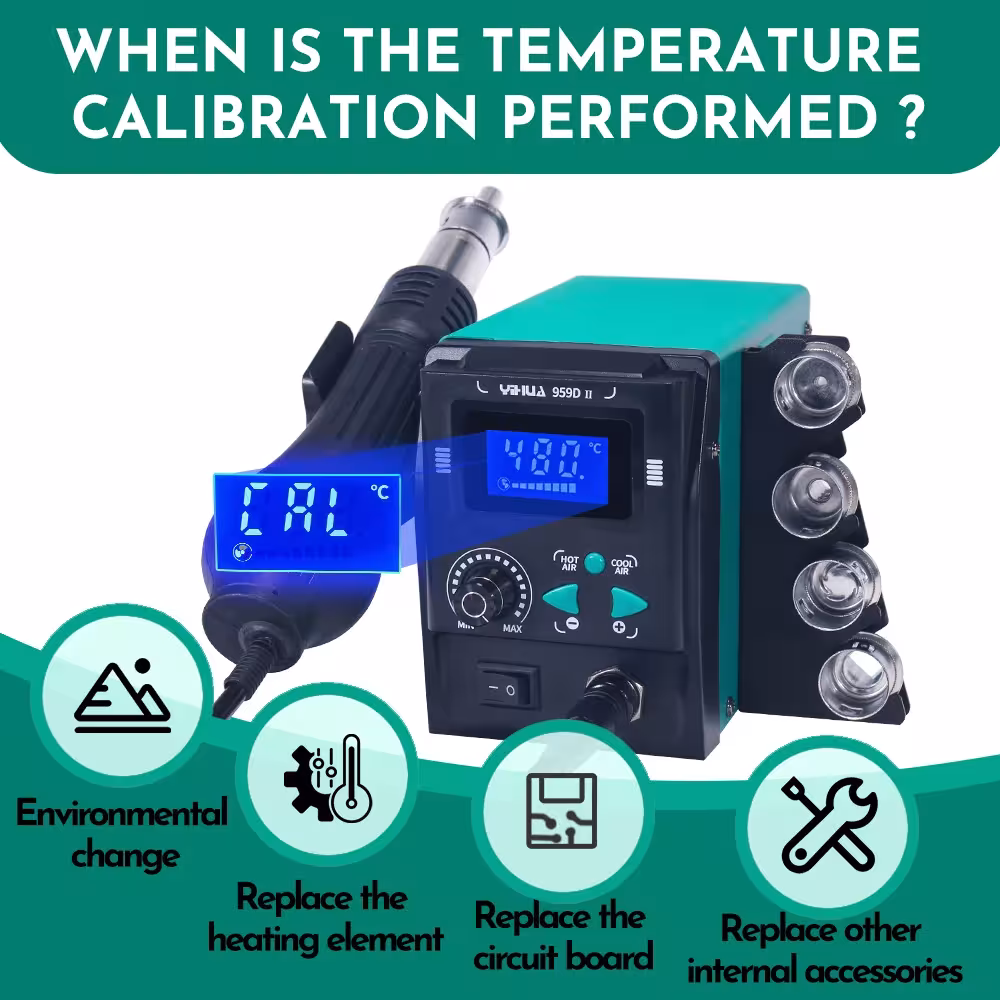

Works great, heats fast, have fast changing nozzles and possibility to calibrate temperature
Question: package2 Voltage: 220V, ships from Europe From: France
Customer –
The YIHUA 959D-II is clearly positioned in the entry-level segment, but it performs quite well. For around 60–70 EUR, you can get a 700 W hot air station with a short heating time as well as adjustable temperature and air volume – not highly precise, but practical for everyday use.
I use them for desoldering SMD components and occasionally for partial reflow, which works reliably. However, one must be aware: hot air is not suitable for gross motor skills. Heat is distributed, components are sensitive – Kapton tape, controlled airflow, and precise timing are a must, especially on densely populated circuit boards.
The included nozzles are comprehensive; you usually only need a few. For very fine work, there is a lack of thermal control and precision. Positive: The device operates consistently without noticeable temperature fluctuations.
Question: package2 Voltage: 220V, ships from Europe From: France
N***r –
Works perfectly for bronzing small steel screws and hardware.
Question: package1 Voltage: 120VUS. Ships From: Mainland China
Customer –
Very kind customer service, shipped quickly and the device works well. i was impressed by how quickly it heats up, the sensor that detects if the blower is in the handle also works well. one annoying thing is the short cable, i know they do it for tripping hazards and safety. but i think a plug would have been better, so that you can easily get a longer cable if you need to route it under a desk.
Question: package1 Voltage: 220V, ships from Europe From: France
Customer –
I am very thankful
Question: package1 Voltage: 220V, ships from Europe From: France
Customer –
An absolute get at the price; it arrived extremely quickly on top of that. it’s a great entry point for this kind of niche device.
Question: package2 Voltage: 120VUS. Ships From: Mainland China
Customer –
Question: package1 Voltage: 220V, ships from Europe From: France
Customer –
Does the job for desoldering. Nice and compact station.
Question: package1 Voltage: 120VUS. Ships From: Mainland China
H * * * –
Question: package2 Voltage: 120VUS. Ships From: Mainland China
